Edwards GV80 DRYSTAR - NEW
Call for Price
| Weight | 364 lbs |
|---|---|
| Motor Power | 4.8 hp |
| Pumping Speed | 80 m3/h |
| Ultimate Pressure | < 2 x 10-2 Torr |
Edwards GV80 DRYSTAR Industrial Dry Vacuum Pump - NEW
DRYSTAR 80 is the most cost effective introduction to basic dry pumping. It is available as a stand-alone unit for 80 m3h-1 repeatable pumping performance; or in a combination with the respected EH500 hydrokinetic drive mechanical booster, offering 500 m3h-1 displacement for applications where increased pumping speed and / or lower vacuum levels are required. Depending upon the application the DRYSTAR 80 can be supplied with mineral oil or PFPE lubrication.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Unit | GV100 | GV80 | Drystar® GV80/EH500 | ||
|---|---|---|---|---|---|
| Peak pumping speed 50 Hz | m³/hr (cfm) | 110 (64.7) | 80 (47) | 390 (230) | |
| Peak pumping speed 60 Hz | m³/hr (cfm) | - | 94 (56) | 471 (277) | |
| Ultimate pressure | mbar (Torr) | 6 x 10-3 (4.5 x 10-3) | <3 x 10-2 (<2 x 10-2) | <3 x 10-2 (<2 x 10-2) | |
| Full load power | @ ultimate pressure | Kw (hp) | 2.6 kW (3.5) | 3.6 (4.8) | 4.3 (5.6) |
| @ peak pumping load | Kw (hp) | 4.5 kW (4.7) | 5.8 (7.8) | 6.7 (9.0) | |
| Electrical | Supply options | EU-US-CN 50/60Hz, 400V/50Hz - 460V/60Hz - 380V/50Hz ASIA 50/60 Hz 200V/50Hz, 200V/60Hz, 380V/60Hz Note: See part number for specific voltage offerings. |
|||
| Vacuum couplings | Inlet | ISO40 | ISO40 | ISO100 | |
| Exhaust | NW40 | ||||
| Cooling | Water | Water | Water/Air | ||
| Cooling water | Flow | l/min (gal/min) | 5 (1.32) | 8 (2.1) | |
| Supply pressure (MAX) | bar.a (psig) | 8 (116) | |||
| DP across pump (MIN) | bar.a (psig) | 2.1 (30) | |||
| Temperature | °C (°F) | 5 - 35 (41-95) | |||
| Connection | In | 1/2" Quick connect coupling (mating half provided) | |||
| Out | 1/2" Quick connect plug (mating half provided) | ||||
| Purge gas (N2 or CDA) | Pressure | bar.a (psig) | 0.5 (6-8) | ||
| Light duty | sl/min | 15 (typically) | |||
| Connection | 1/4" Quick connect coupling (mating half provided) | ||||
| Dimensions | L x W x H | mm (in) | 1060 x 502 x 316 (42 x 20 x 12.5) | 860 x 607 x 344 (33.8 x 23.9 x 13.5) |
932 x 607 x 624 (36.7 x 23.9 x 24.6) |
| Footprint | m2 (ft2) | 0.532 (5.73) | 0.43 (4.63) | ||
| Weight | Kg (lbs) | 210 kg (463) | 165 (364) | 240 (529) | |
| Noise level with exhaust silencer | dB(A) | <75 | <78 | ||
| Exhaust Back Pressure (MAX) | bar.a (psig) | 1.3 (0.4) | |||
| Lubrication | Volume | l (gal) | 0.4 (0.1) | 0.4 (0.1) | 1.4 (0.4) |
| Type | Hydrocarbon | SHC 629 | SHC 629 | SHC 629/Ultragrade 20 | |
| PFPE | - | YVAC 25/6 | YVAC 25/6 / YVAC 16/6 | ||
| Pump Electrical motor rating | kW/HP | 4/4.5 | 4/4.5 | - | |
| Typical pump rotation speed - 50Hz electrical supply | rev.min-1 | 4100 | 3000 | - | |
| Typical pump rotation speed - 60Hz electrical supply | rev.min-1 | 4100 | 3600 | - | |
| Protection grade | IP | 42 | 55 | - | |
| Warm-up time to pump operating temperature | min | 15 | 15 | - | |
| Ambient operating temperature range | °C (°F) | 0 to 40 (32 to 104) | 0 to 40 (32 to 104) | - | |
| Maximum ambient operating humidity | RH | 80% | 100% | - | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards GV80 DRYSTAR - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards GV80 DRYSTAR Industrial Dry Vacuum Pump - NEW NR8030000 / NR80-30-000 GV80 380/415V 50Hz NR8031000 / NR80-31-000 GV80 230/460V 60Hz NR8032000 / NR80-32-000 GV80 380V 60Hz NR8033000 / NR80-33-000 GV80 200V 50Hz NR8034000 / NR80-34-000 GV80 200V 60Hz NRY29W000 / NRY2-9W-000 GV80 208V 60Hz NRY2A0000 / NRY2-A0-000 GV80 230V 60Hz NRY2A4000 / NRY2-A4-000 GV80 460V 60Hz
-
Edwards iH80 - NEWCall for Price
-

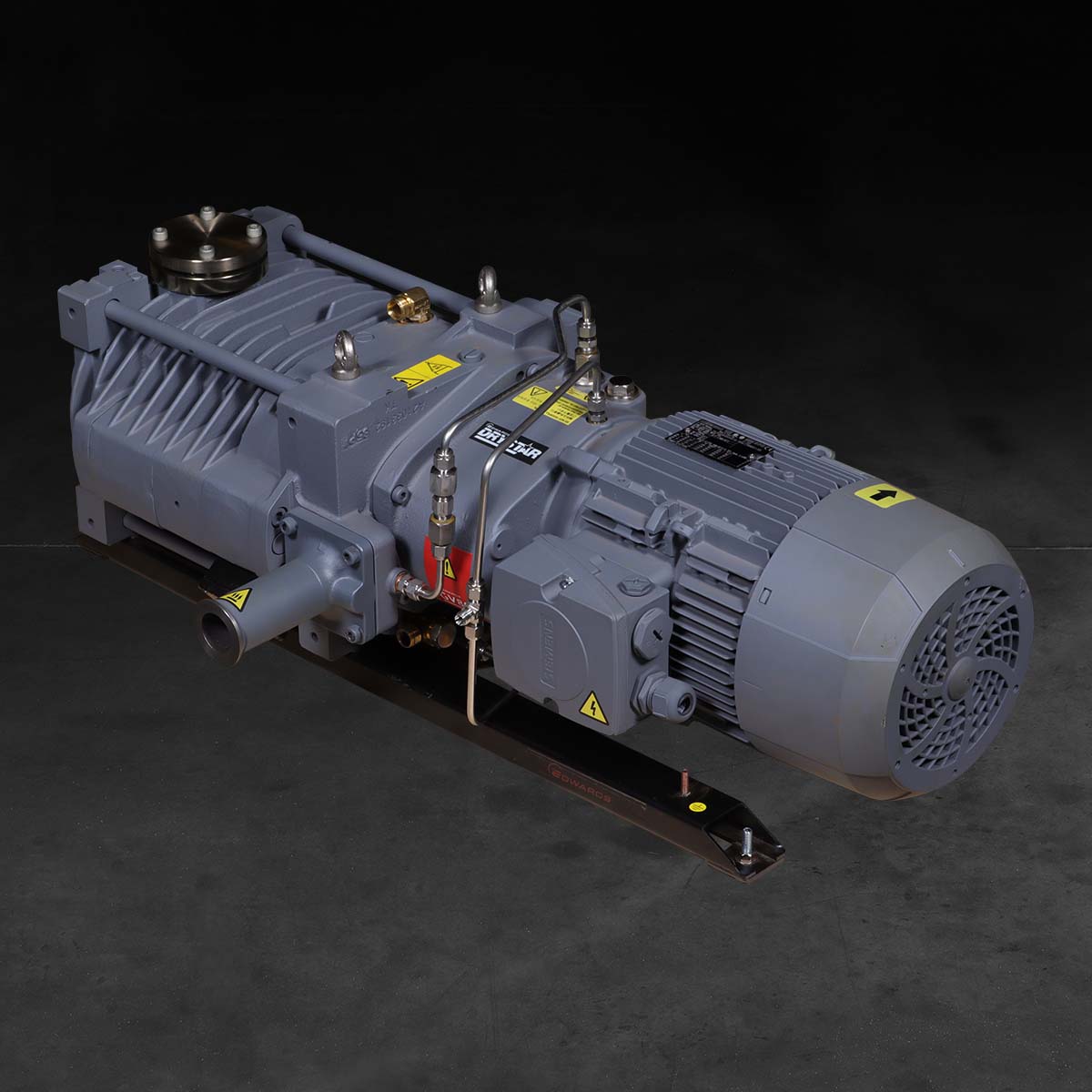

Edwards GV80 DRYSTAR - REBUILTCall for Price
-

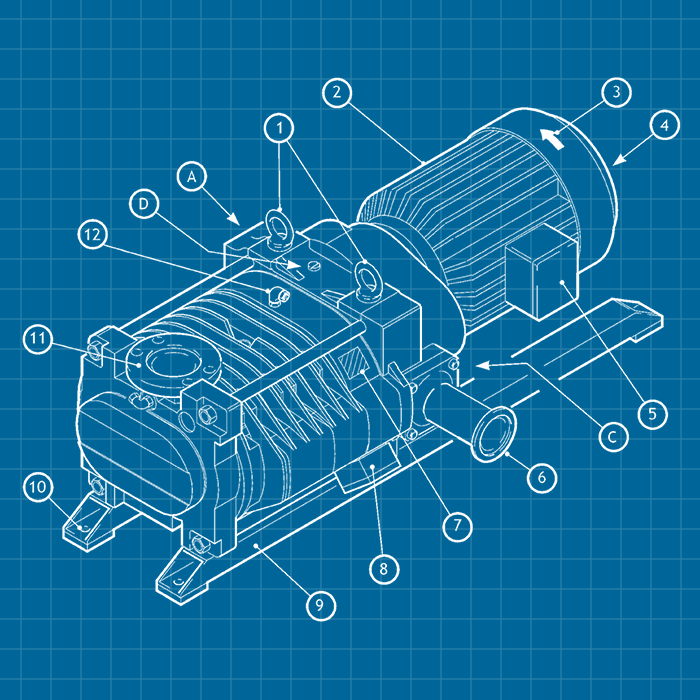

Edwards GV80 - SERVICECall for Price
