Edwards HV8000 - REBUILT
Call for Price
In stock
SKU
REBUILT_HV8000

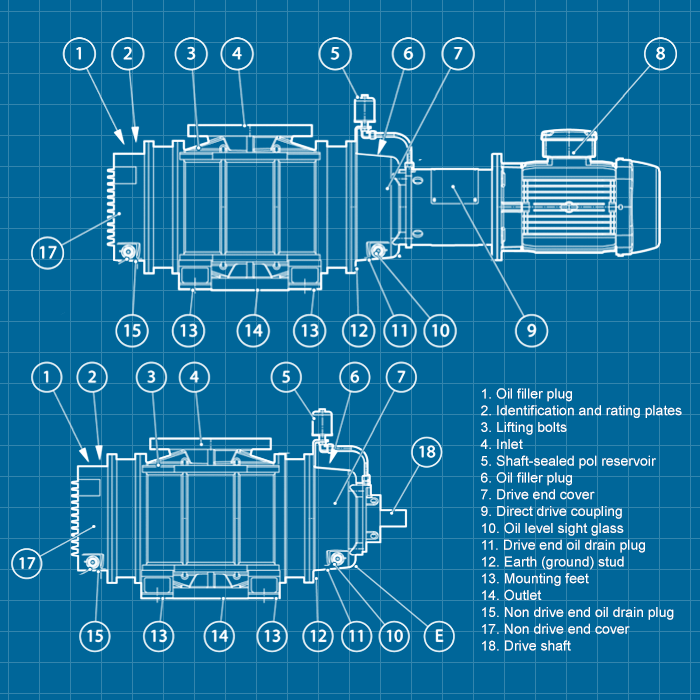

Edwards HV8000 Mechanical Vacuum Blower - REBUILT
Rebuilt with one year warranty. View our inventory of Edwards blowers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Maximum rotational speed (60 Hz) | 3,600 r min-1 |
| Minimum rotational speed (for correct pump lubrication) | 440 r min-1 |
| Displacement (swept volume) | 8,640 m3 h-1 (5,089 cfm) |
| Maximum backing pressure for DoL (direct on line) starting | 7 mbar / 7 x 102 Pa / 0.1 psi |
| Minimum backing pumping speed at the pump outlet | 600 m3 h-1 (353 cfm) |
| Critical backing pressure at the pump outlet* | 67 mbar / 6.7 x 103 Pa / 0.97 psi |
| Ambient operating temperature range | -20 to 40°C (-4 to 104°F) |
| Ambient storage temperature range | -20 to 80°C (-4 to 176°F) |
| Maximum ambient operating humidity | 90% |
| Maximum operating altitude | 3,000 m (9,842 ft) |
| Protection degree (as defined by IEC 529) | IP44 |
| Recommended backing pumps | Contact for advice |
| Maximum pressure rise (between HV8000 pump inlet and outlet) | 120 mbar / 1.2 x 103 Pa / 1.74 psi |
| Maximum motor power for a directly (bell housing) mounted motor | 18.5 kW (25 hp) |
| Maximum inlet gas temperature | 60°C (140°F) |
| Maximum outlet gas temperature | 300°C (572°F) |
| Maximum gas temperature rise (between HV8000 inlet and outlet) | 240°C (464°F) |
| Maximum cooling-water supply pressure | 3 bar gauge / 3 x 105 Pa / 44 psi |
| Maximum cooling-water supply temperature | 35°C (95°F) |
| Minimum cooling-water flow rate | 15 l min-1 3.96 US gal min-1 |
| Weight | 664 kg (1,460 lb) w/ 60 Hz motor 570 kg (1,257 lb) bareshaft |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards HV 8000 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards HV8000 Mechanical Vacuum Blower - REBUILT A31102985 / A311-02-985 HV8000 HF bareshaft booster
