Edwards iQDP40 - REBUILT
Call for Price
In stock
SKU
REBUILT_iQDP40
| Weight | 410 lbs |
|---|---|
| Pumping Speed | 44 m3/h |
| Ultimate Pressure | 5 x 10-2 mbar |

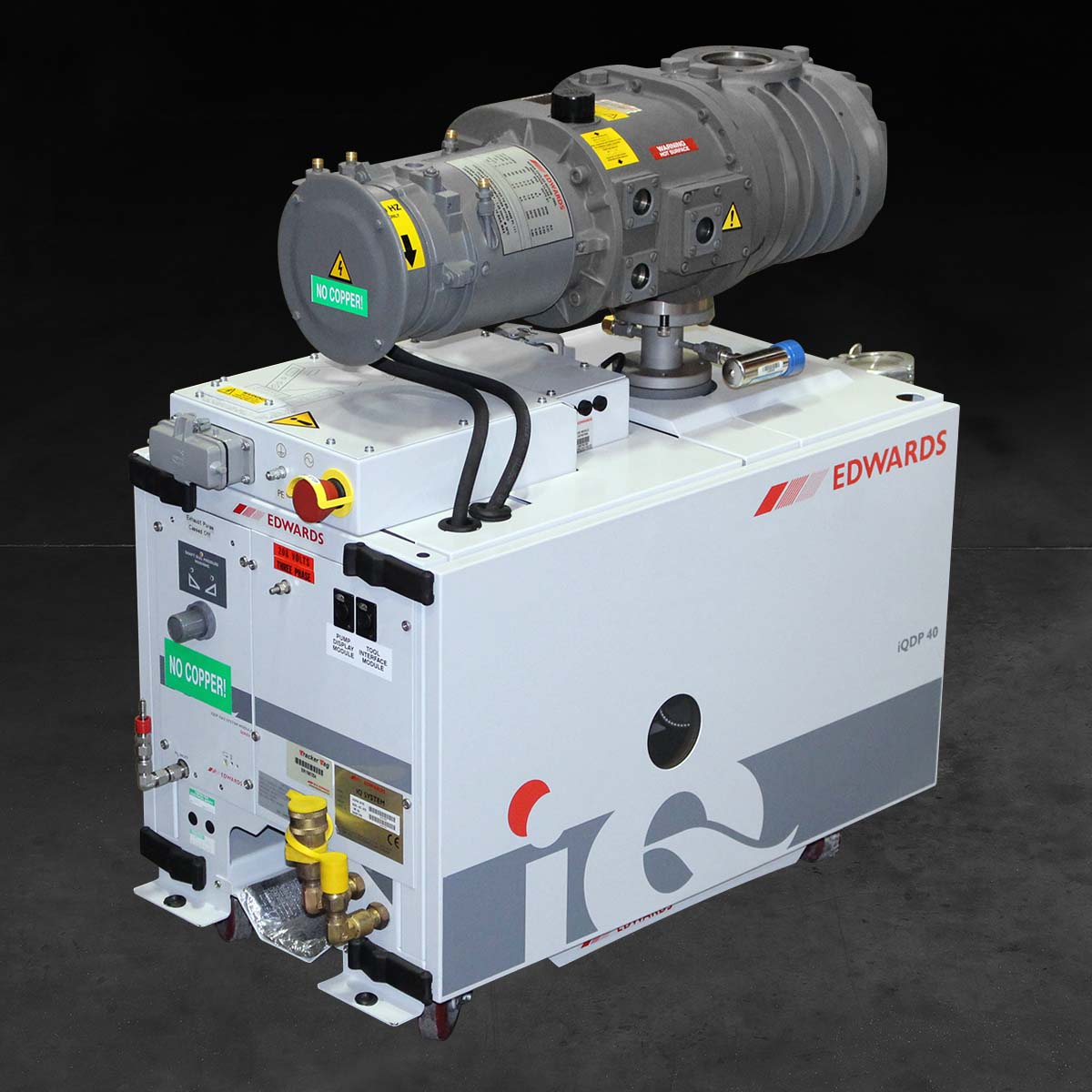

Edwards iQDP40 Semiconductor Dry Vacuum Pump - REBUILT
Rebuilt with a one year warranty. Sound enclosure panels, various nitrogen purge configurations and other features can be provided per quote.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| iQDP40 / QDP40 / DP40 | iQDP80 / QDP80 / DP80 | |
|---|---|---|
| 60 Hz | ||
| Peak speed | ||
| m3h-1 | 55 | 96 |
| cfm | 32 | 56.4 |
| Displacement | ||
| m3h-1 | 62 | 110 |
| cfm | 36.7 | 64.7 |
| Ultimate vacuum | ||
| mbar | 3 x 10-2 | 1 x 10-2 |
| Torr | 2 x 10-2 | 8 x 10-3 |
| Inlet connection | ISO 40 bolted | ISO 63 bolted |
| Outlet connection | NW 40 | NW 40 |
| Power input @ vacuum (kW) | 1.3 | 3.1 |
| Motor power (kW) | 2.2 | 4.0 |
| Weight (kg) | 186 | 216 |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards iQ Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards iQDP40 Semiconductor Dry Vacuum Pump - REBUILT A53240905 / A532-40-905
