Edwards iXL120N - NEW

Name: Edwards iXL120N - NEW
Brand: Edwards
SKU: NEW_iXL120N

Be the first to review this product

$27,011

In stock

Only %1 left

SKU

NEW_iXL120N

Request For Quote

Weight	131 lbs
Motor Power	0.74 hp
Pumping Speed	110 m³h^-1
Ultimate Pressure	1 x 10^-2 torr

Description

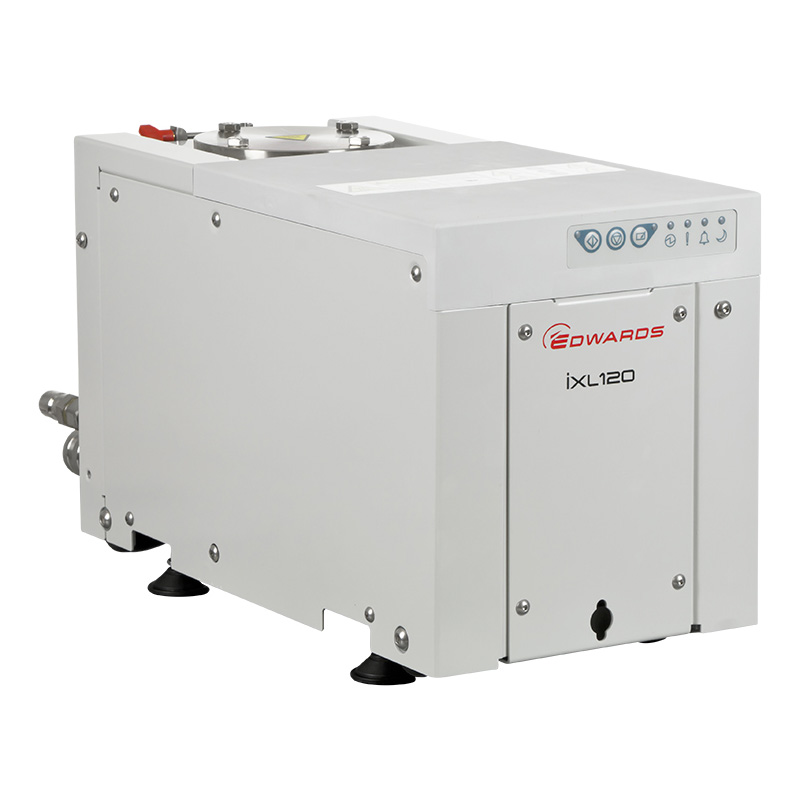

Edwards iXL120N Semiconductor Dry Vacuum Pump - NEW

The iXL120 is a low energy, compact dry pump system that can be mounted on tool or remotely. It is designed to give extremely low cost of ownership. The iXL120 is intended only for use on clean duty applications. The iXL120 is not intended for use with potentially flammable, corrosive, toxic or other hazardous gases since these gases or oxygen can mix within the pump system.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Typical peak pumping speed (no gas purge/cold pump)	110 m³/h^-1 / 65 cfm
Ultimate pressure	0.01 mbar / 8 mTorr
Pump inlet flange	ISO-63 / NW50
Exhaust gas outlet	NW25
Intended use	Indoor use
Operating ambient temperature range	5 to 40°C
Storage ambient temperature range	-45 to 55°C
Maximum relative humidity	80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
Maximum operating altitude	up to 2,000 m
Pollution degree	II (IEC 61010) (Normally only non-conductive pollution occurs. Occasionally, however, temporary conductivity caused by condensation must be expected)
Atmosphere	Non flammable and non-corrosive
Degree of protection provided by enclosure	IP31D (EN60529: Degrees of protection provided by enclosures)
Dimensions	450 x 230 x 275 mm
Mass	59 kg
Noise level (at ultimate)	< 55 dB(A)
Vibration level at inlet	< 1.5 mm s^-1
Vibration to the floor (when docked)	< 0.05 mm s^-1
Initial force to push the pump	0.06 kN
Sustained force to push the pump	0.04 kN
Warm up time to nominal pumping performance	45 min

Specifications

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL iXL120N Semiconductor Dry Vacuum Pump - NEW

CODE No A541-14-010 / A54114010  iXL120N  E 200-460V 3/8 QC Water Fittings
CODE No A541-14-020 / A54114020  iXL120N  E 200-460V 1/4 QC Water Fittings
CODE No A541-14-210 / A54114210  iXL120N  E 200-460V SPI TIM 3/8 QC Water Fittings
        A541-14-410 / A54114410  iXL120N  E 200-460V TEL 3/8 QC Water Fittings
        A541-14-011 / A54114011  iXL120N  E 200-460V 3/8 QC Water Fittings Flow Cont Valve
        A541-14-411 / A54114411  iXL120N  E 200-460V TEL 3/8 QC Water Fittings Flow Cont Valve
