Edwards iXL120N - REBUILT
Call for Price
In stock
SKU
REBUILT_iXL120N
| Weight | 130 lbs |
|---|---|
| Pumping Speed | 65 cfm |
| Ultimate Pressure | 1.3 x 10-2 mbar |

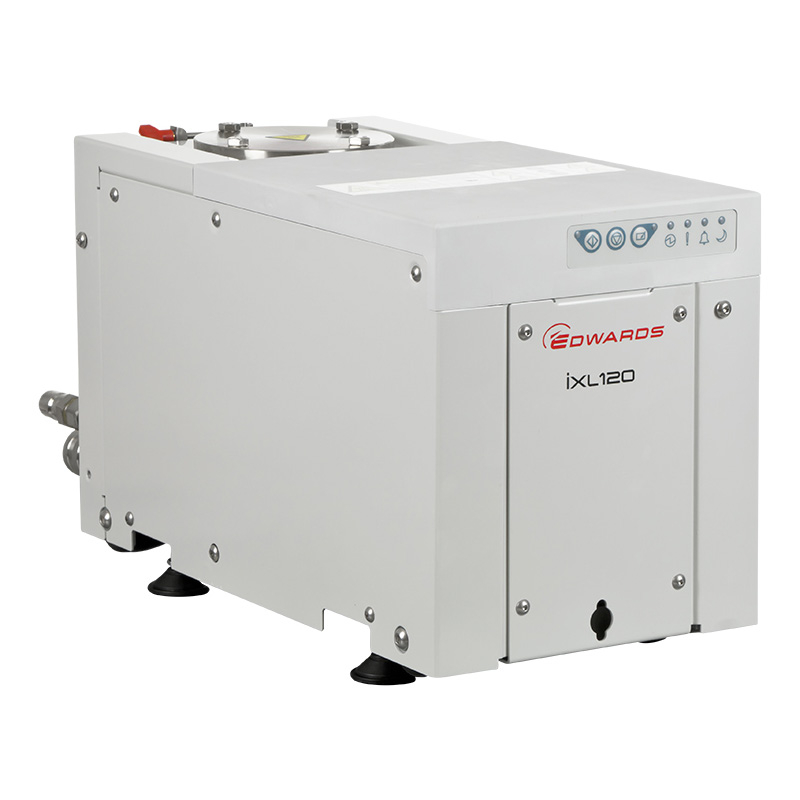

Edwards iXL120N Semiconductor Dry Vacuum Pump - REBUILT
The iXL120 is a low energy, compact dry pump system that can be mounted on tool or remotely. It is designed to give extremely low cost of ownership. The iXL120 is intended only for use on clean duty applications. The iXL120 is not intended for use with potentially flammable, corrosive, toxic or other hazardous gases since these gases or oxygen can mix within the pump system.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Typical peak pumping speed (no gas purge/cold pump) | 110 m3/h-1 / 65 cfm |
| Ultimate pressure | 0.01 mbar / 8 mTorr |
| Pump inlet flange | ISO-63 / NW50 |
| Exhaust gas outlet | NW25 |
| Intended use | Indoor use |
| Operating ambient temperature range | 5 to 40°C |
| Storage ambient temperature range | -45 to 55°C |
| Maximum relative humidity | 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C |
| Maximum operating altitude | up to 2,000 m |
| Pollution degree | II (IEC 61010) (Normally only non-conductive pollution occurs. Occasionally, however, temporary conductivity caused by condensation must be expected) |
| Atmosphere | Non flammable and non-corrosive |
| Degree of protection provided by enclosure | IP31D (EN60529: Degrees of protection provided by enclosures) |
| Dimensions | 450 x 230 x 275 mm |
| Mass | 59 kg |
| Noise level (at ultimate) | < 55 dB(A) |
| Vibration level at inlet | < 1.5 mm/s-1 |
| Vibration to the floor (when docked) | < 0.05 mm/s-1 |
| Initial force to push the pump | 0.06 kN |
| Sustained force to push the pump | 0.04 kN |
| Warm up time to nominal pumping performance | 45 min |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards iXH, iXL & pXH Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL iXL120N Semiconductor Dry Vacuum Pump - REBUILT CODE No A541-12-720 / A54112720 iXL120N MCM 1/4 water fitting
