Edwards nES100 - NEW
Call for Price
In stock
SKU
NEW_nES100
| Weight | 230 lbs |
|---|---|
| Motor Power | 4 hp |
| Pumping Speed | 87.5 m3/h |
| Ultimate Pressure | 5 x 10-1 mbar |
Edwards nES100 Single Stage Rotary Vane Vacuum Pump - NEW
The Edwards nES single stage series represents the next advancement in oil sealed rotary vane vacuum pumps for use in a wide of range industries and applications. Offering high reliability, low life cycle cost and proven performance, the nES series provides an ideal solution to suit a broad range of requirements.
| Maximum Displacement | |
| 50 Hz | 98 m3h-1 /57.4 cfm |
| 60 Hz | 117 m3h-1 /68.9 cfm |
| Pumping Speed | |
| 50 Hz | 87.5 m3h-1 /51.5 cfm |
| 60 Hz | 105 m3h-1 /61.8 cfm |
| Ultimate vacuum (total pressure) no gas ballast | 0.5 mbar /0.4 Torr |
| Ultimate vacuum (total pressure) with gas ballast | 1.5 mbar /1.1 Torr |

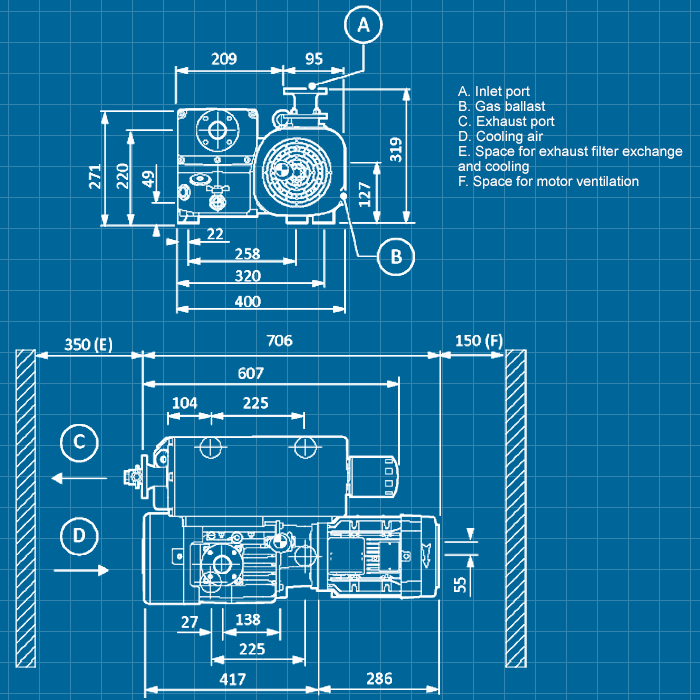

| Inlet Connection | 40 ISO-F / G1 ¼ |
| Outlet Connection | 40 ISO-F / G1 ¼ |
| Max permitted outlet pressure | 1.15 bar gauge |
| Max water vapour pumping rate | |
| 50Hz | 1.6 kgh-1 /1.69 lbh-1 |
| 60Hz | 1.7 kgh-1 /1.8 lbh-1 |
| Weight | 104 kg /230 lb |
| Motor Protection rating | IP55 |
| Motor Power | |
| 50Hz | 3 kW /4 hp |
| 60Hz | 3.6 kW /5 hp |
| Noise level | |
| 50Hz | 61 dB(A) |
| 60Hz | 64 dB(A) |
| Oil refill capacity | 2 Litre |
| Recommended oil | Ultragrade 70 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nES Series - New | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards nES100 Single Stage Rotary Vane Vacuum Pump - NEW
