Edwards nES570 - NEW
Call for Price
In stock
SKU
NEW_nES570
| Weight | 1214 lbs |
|---|---|
| Motor Power | 15 hp |
| Pumping Speed | 470 m3/h |
| Ultimate Pressure | 8 x 10-1 mbar |
Edwards nES570 Single Stage Rotary Vane Vacuum Pump - NEW
The Edwards nES single stage series represents the next advancement in oil sealed rotary vane vacuum pumps for use in a wide of range industries and applications. Offering high reliability, low life cycle cost and proven performance, the nES series provides an ideal solution to suit a broad range of requirements.
| Maximum Displacement | |
| 50 Hz | 570 m3h-1 /366 cfm |
| Pumping Speed | |
| 50 Hz | 400 m3h-1 /236 cfm |
| Ultimate vacuum (total pressure) no gas ballast | 0.08 mbar /0.06 Torr |
| Ultimate vacuum (total pressure) with gas ballast | 0.7 mbar /0.5 Torr |

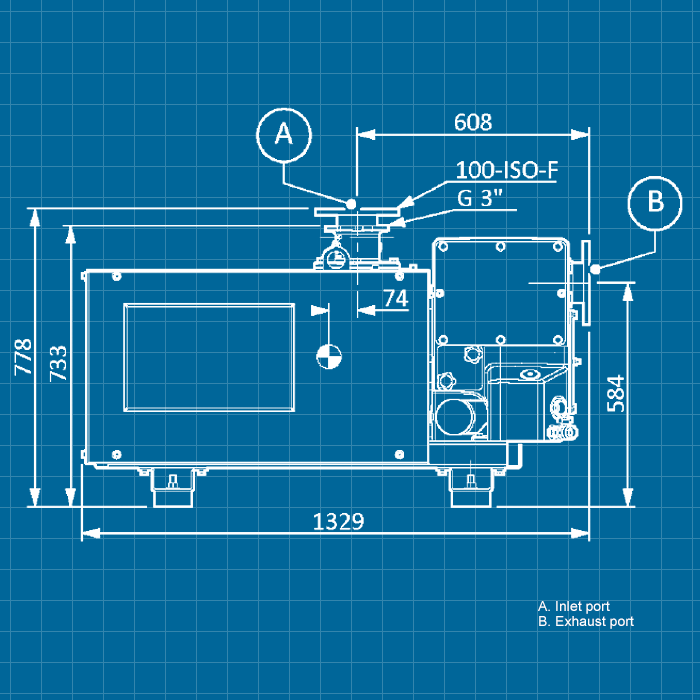

| Inlet Connection | 100 ISO-F / G3 |
| Outlet Connection | 100 ISO-F / G3 |
| Max permitted outlet pressure | 1.15 bar gauge |
| Max water vapour pumping rate | |
| 50Hz | 7.5 kgh-1 /8.0 lbh-1 |
| Weight | 550 kg /1214 lb |
| Motor Protection rating | IP55 |
| Motor Power | |
| 50Hz | 11 kW /15 hp |
| Noise level | |
| 50Hz | 75 dB(A) |
| Oil refill capacity | 20 Litre |
| Recommended oil | Ultragrade 70 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nES Series - New | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards nES570 Single Stage Rotary Vane Vacuum Pump - NEW
