Edwards nEXT 730D - NEW

Name: Edwards nEXT 730D - NEW
Brand: Edwards
SKU: NEW_nEXT730D

Be the first to review this product

Starting at $20,742

In stock

Only %1 left

SKU

NEW_nEXT730D

Request For Quote

Weight	45 lbs
Pumping Speed	730 l/s
Ultimate Pressure	3 x 10^-10 mbar

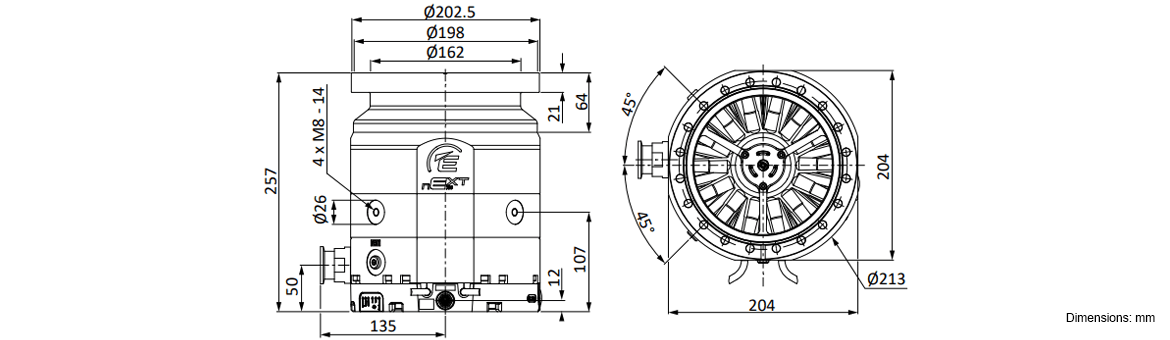

Dimensions

Description

Edwards nEXT730D Turbomolecular Vacuum Pump - NEW

Edwards are proud to introduce two new additions to the nEXT product family, the nEXT730 and the nEXT930. With the nEXT730 and nEXT930, Edwards is extending the range of our market leading nEXT platform with two new larger pumps offering speeds significantly over 700 l/s and 900 l/s for nitrogen.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange	DN 160 ISO-K / DN 160 CF
Pumping speed
N₂	730 l/s
He	820 l/s
H₂	715 l/s
Ar	665 l/s
Peak compression ratio from the backing port to the main inlet port
N₂	> 10¹¹
He	1.2 x 10⁸
H₂	4 x 10⁶
Ar	> 10¹¹
Ultimate pressure	3 x 10^-10 mbar
Weight	14.6 kg / 19.6 kg
Throughput at full speed
N₂	14 mbar l/s
He	21 mbar l/s
H₂	> 14 mbar l/s
Ar	3.5 mbar l/s

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL: nEXT730D Turbomolecular Vacuum Pump - NEW

CODE: B8J2-00-300 / B8J200300  nEXT730D  ISO-K 160
CODE: B8J2-00-400 / B8J200400  nEXT730D  CF 160
