Edwards nEXT 930D - NEW

Name: Edwards nEXT 930D - NEW
Brand: Edwards
SKU: NEW_nEXT930D

Be the first to review this product

Starting at $22,549

In stock

Only %1 left

SKU

NEW_nEXT930D

Request For Quote

Weight	50 lbs
Pumping Speed	925 l/s
Ultimate Pressure	3 x 10^-10 mbar

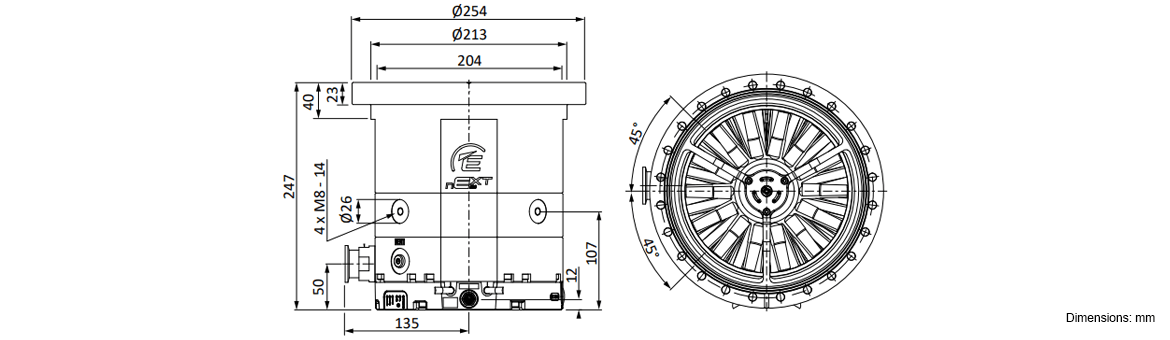

Dimensions

Description

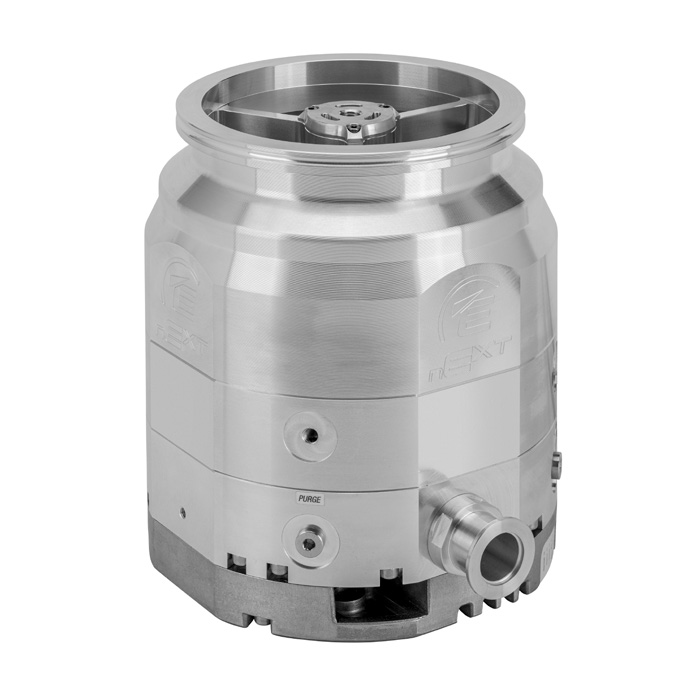

Edwards nEXT930D Turbomolecular Vacuum Pump - NEW

Edwards are proud to introduce two new additions to the nEXT product family, the nEXT730 and the nEXT930. With the nEXT730 and nEXT930, Edwards is extending the range of our market leading nEXT platform with two new larger pumps offering speeds significantly over 700 l/s and 900 l/s for nitrogen.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange	DN 200 ISO-K / DN 200 CF
Pumping speed
N₂	925 l/s
He	905 l/s
H₂	735 l/s
Ar	865 l/s
Peak compression ratio from the backing port to the main inlet port
N₂	> 10¹¹
He	1.2 x 10⁸
H₂	4 x 10⁶
Ar	> 10¹¹
Ultimate pressure	3 x 10^-10 mbar
Weight	15.4 kg / 21.7 kg
Throughput at full speed
N₂	14 mbar l/s
He	21 mbar l/s
H₂	> 14 mbar l/s
Ar	3.5 mbar l/s

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL: nEXT930D Turbomolecular Vacuum Pump - NEW

CODE: B8K2-00-D00 / B8K200D00  nEXT930D  ISO-K 200
CODE: B8K2-00-F00 / B8K200F00  nEXT930D  CF 200
