Edwards nEXT240D - REBUILT
Call for Price
| Weight | 20 lbs |
|---|---|
| Pumping Speed | 240 l/s |
| Ultimate Pressure | < 5 x 10-10 mbar |
Edwards nEXT240D Turbomolecular Vacuum Pump - REBUILT
The nEXT is a hybrid bearing compound turbomolecular pump. nEXT pumps combine our proven bearing technology (oil lubricated ceramic lower bearing with dry permanent magnetic upper bearing), an improved rotor design with a new molecular drag stage to deliver improved pumping speed and compression ratios, and user serviceability. They feature 24 V to 48 V d.c. sensor less motors with a built in drive that is fully compatible with our range of TAG and TIC controllers. They are available pre-set for either 80 W or 160 W maximum power, the former enabling use with our 100 W TIC controllers are also recommended for pumping Argon, but with a longer ramp time to full operating speed.
- Value for money - exceptional pumping speeds and compression ratios
- No unplanned downtime - field proven reliability in the most demanding environments
- Easy integration - standard fit in many scientific instruments
- Reliability for peace of mind - over 200,000 turbomolecular pumps installed
- Low cost of ownership - end user serviceable
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

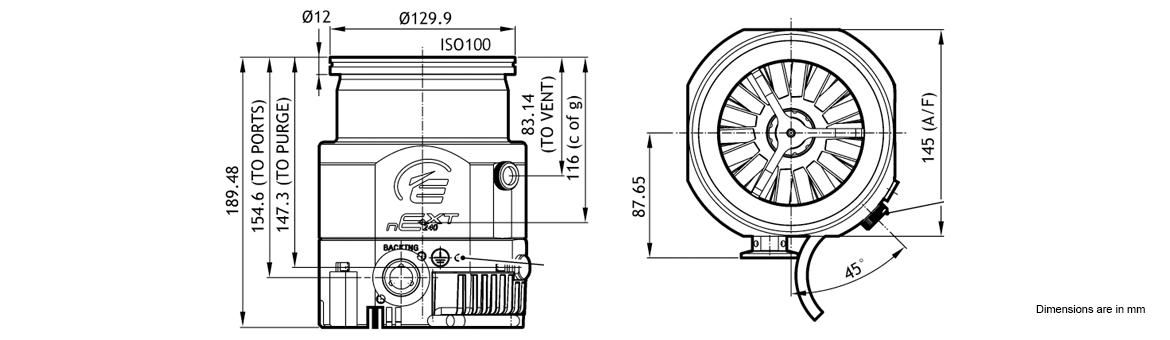

| Inlet flange | ISO-100K / DN 100 CF |
| Outlet flange | DN 25 NW |
| Pumping speed | |
| N2 | 240 l/s |
| He | 230 l/s |
| H2 | 165 l/s |
| Compression ratio D/T | |
| N2 | 1 x 1011 |
| He | 3 x 105 / 1 x 106 |
| H2 | 1 x 104 / 1.5 x 104 |
| Ultimate pressure w/ RV backing pump ISO / CF | < 6 x 10-8 / < 5 x 10-10 mbar |
| Recommended backing pump* | RV12 / nXDS10i |
| Vent port | 1/8 inch BSP female |
| Purge port | 1/8 inch BSP female |
| Water cooling (water at 15°C, ambient temp at 40°C | 45 sccm |
| Forced air cooled, 35 °C ambient | 30 sccm |
| Nominal rotational speed | 60,000 rpm |
| Standby rotational speed | Variable from 33,000 to 60,000 rpm (42,000 rpm default) |
| Programmable power limit settings | Variable from 50 - 200W (160W default) |
| Start time to 90% speed D / T 160 W | 115 / 140 |
| Analogue outputs | Forced air / water |
| Cooling method | 5 - 35°C |
| Min cooling water flow rate (water 15°C) | 15 l/h-1 |
| Water temp range | 10 - 20°C |
| Max inlet flange temp | 75°C |
| Operating attitude | Vertical and upright, through to Horizontal +/- 2° |
| Noise level at 1 metre | < 45 dB(A) |
| Max magnetic field pump can tolerate | 5 mT |
| Recommended controller | TIC 200 turbo and instrument controller |
| Quiescent electrical power | Typically 20W |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nEXT Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL: nEXT240D Turbomolecular Vacuum Pump - REBUILT
CODE: B812-50-115 / B81250115 nEXT240iDL FPS1 ISO-100 105W
CODE: B812-00-100 / B81200100 nEXT240D ISO-100 160W
CODE: B812-00-200 / B81200200 nEXT240D CF-100 160W
B812-00-101 / B81200101 nEXT240D ISO-100 80W
B812-00-201 / B81200201 nEXT240D CF-100 80W
B813-00-100 / B81300100 nEXT240T HC ISO-100 160W
B813-00-101 / B81300101 nEXT240T HC ISO-100 80W
B813-00-200 / B81300200 nEXT240T HC CF-100 160W
B813-00-201 / B81300201 nEXT240T HC CF-100 80W
B813-21-103 / B81321103 nEXT240T B90 BPCC ISO-100 160W
B832-00-400 / B83200400 nEXT400D CF160 160W
B812-30-106 / B81230106 nEXT240DL ISO-100 160W
B812-00-102 / B81200102 nEXT240D ISO-100 110W
B812-00-103 / B81200103 nEXT240D ISO-100 80W FINE
B812-01-100 / B81201100 nEXT240D B90NW25 BP0 160W
