Edwards nEXT 240D - NEW

Name: Edwards nEXT 240D - NEW
Brand: Edwards
SKU: NEW_nEXT240D

Be the first to review this product

Starting at $13,195

In stock

Only %1 left

SKU

NEW_nEXT240D

Request For Quote

Weight	12.5 lbs
Pumping Speed	240 l/s
Ultimate Pressure	< 6 x 10^-8 mbar

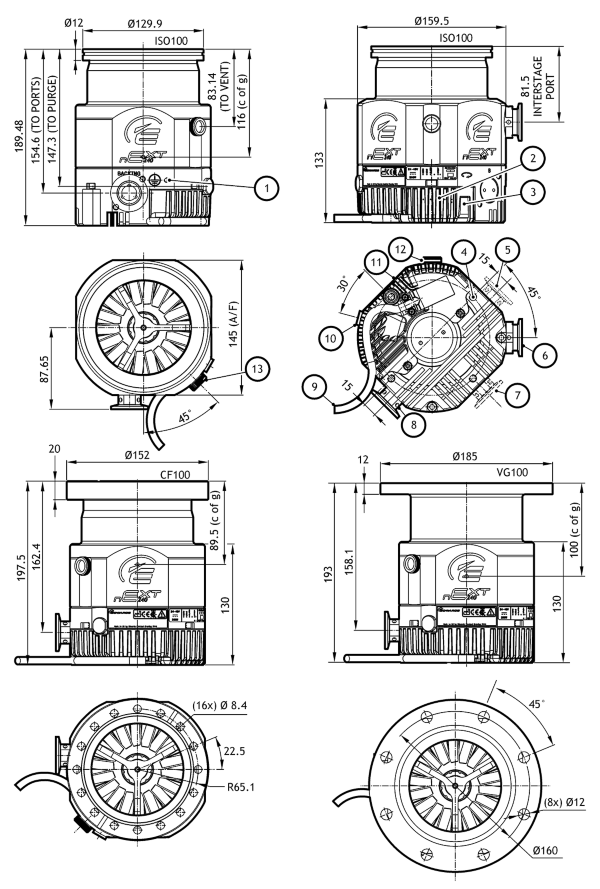

Dimensions

Description

Edwards nEXT240D Turbomolecular Vacuum Pump - NEW

The nEXT240D is a hybrid bearing compound turbo pump available with either an ISO-100 or a CF-100 inlet flange and has a N₂ pumping speed of 240 l/s. nEXT pumps combine our proven bearing technology (oil lubricated ceramic lower bearing with dry permanent magnetic upper bearing), an improved rotor design with a new molecular drag stage to deliver improved pumping speed and compression ratios, and true user serviceability. They feature 24V to 48 VDC sensor less motors with a built in drive that is fully compatible with our range of TAG and TIC controllers. They are available pre-set for either 80W or 160W maximum power, the former enabling use with our 100W TIC controllers are also recommended for pumping Argon, but with a longer ramp time to full operating speed. A basic pump system would require a nEXT240D pump, a TAG or TIC controller, either an air or water cooling accessory and a suitable backing pump.

Value for money - exceptional pumping speeds and compression ratios
No unplanned downtime - field proven reliability in the most demanding environments
Easy integration - standard fit in many scientific instruments
Reliability for peace of mind - over 200,000 turbomolecular pumps installed
Low cost of ownership - end user serviceable

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange	DN 100 ISO-K / DN 100 CF
Outlet flange	DN 25 NW
Pumping speed
N₂	240 l/s
He	230 l/s
H₂	165 l/s
Compression ratio D / T
N₂	> 1 × 10¹¹
He	3 x 10⁵ / 1 x 10⁶
H₂	1 x 10⁴ / 1.5 x 10⁴
Ultimate pressure with RV backing pump ISO / CF	< 6 x 10^-8 / < 5 x 10^-10 mbar
Recommended backing pump*	RV12 / nXDS10i
Vent port	1/8 inch BSP female
Purge port	1/8 inch BSP female
Max continuous inlet flow (Nitrogen)†
Water cooling (water at 15°C, ambient temp at 40°C)	45 sccm
Forced air cooled, 35°C ambient	30 sccm
Pump rotational speed
Nominal rotational speed	60,000 rpm
Standby rotational speed	Variable from 33,000 to 60,000 rpm (42,000 rpm default)
Programmable power limit settings	Variable from 50 - 200 W (160W default)
Start time to 90% speed D / T 160 W	115 / 140
Analogue outputs	Pump rotational speed; Power consumption; Pump temp; Controller temp
Cooling method	Forced air / water
Ambient air temp for forced air cooling	5 - 35°C
Min cooling water flow rate (water 15°C)	15 l/h^-1
Water temp range	10 - 20°C
Max inlet flange temp	75°C
Operating attitude	Vertical and upright, through to Horizontal +/- 2°
Noise level at 1 metre	< 45 dB(A)
Max magnetic field pump can tolerate	5 mT
Recommended controller	TIC 200 turbo and instrument controller
Quiescent electrical power	Typically 20W

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards nEXT Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL: nEXT240 Turbomolecular Vacuum Pump - NEW

CODE: B812-00-100 / B81200100  nEXT240D  ISO-100 160W
CODE: B812-00-200 / B81200200  nEXT240D  CF-100 160W
CODE: B812-00-101 / B81200101  nEXT240D  ISO-100 80W
      B812-00-201 / B81200201  nEXT240D  CF-100 80W
      B813-00-100 / B81300100  nEXT240T HC  ISO-100 160W
      B813-00-101 / B81300101  nEXT240T HC  ISO-100 80W
      B813-00-200 / B81300200  nEXT240T HC  CF-100 160W
      B813-00-201 / B81300201  nEXT240T HC  CF-100 80W
