Edwards nXDS10i - REBUILT
| Weight | 57 lbs |
|---|---|
| Pumping Speed | 11.4 m3/h |
| Ultimate Pressure | 7 x 10-3 mbar |

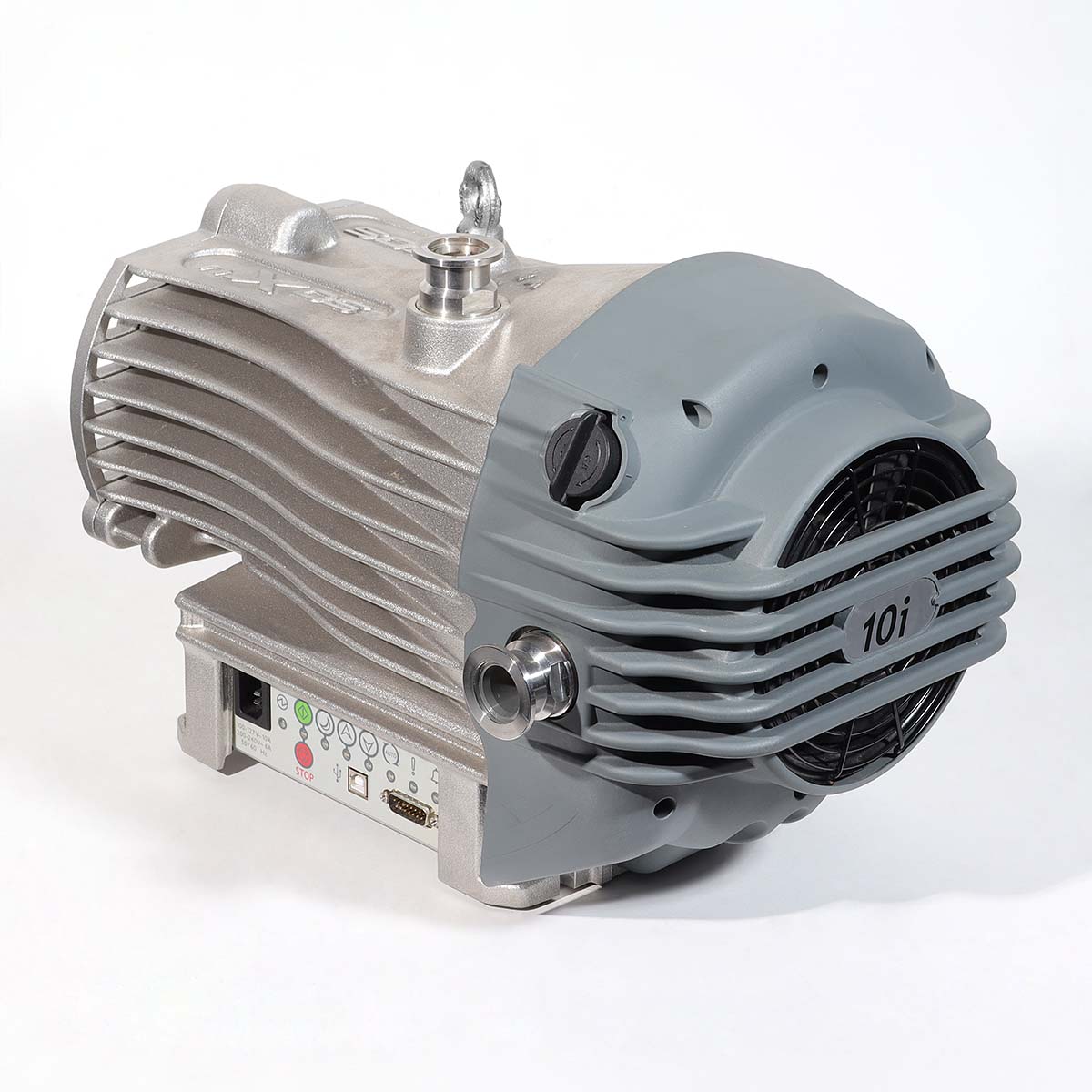

Edwards nXDS10i Dry Scroll Vacuum Pump - REBUILT
Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
The nXDS pump is a truly dry vacuum pump as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDS pump is suitable for use on vapour handling processes, and may be used for some pumping applications involving corrosive substances.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal rotation speed | 1,800 rpm |
| Displacement | 12.7 m3h-1 / 7.5 ft3min-1 |
| Peak pumping speed | 11.4 m3h-1 / 6.7 ft3min-1 |
| Ultimate vacuum (Total pressure) | 0.007 mbar / 0.005 Torr |
| Minimum standby rotational speed | 1,200 rpm |
| Speed control resolution (percentage of full rotation speed) | 1% |
| Pumping speed at minimum rotational speed | 7.5 |
| Max continuous inlet pressure | 200 mbar |
| Motor power 1-phase | 280 W |
| Power connector 1-phase | IEC EN60320 C13 |
| Recommended fuse | 10A, 250 VAC rms |
| Weight | 25.8 kg / 57 lb |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
| Noise level | 52 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1 x 10-6 mbar l/s |
| Operating temperature range | 10 to 40°C / 50 to 104°F |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nXDS Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL NUMBER nXDS10i Dry Scroll Vacuum Pump - REBUILT PART NUMBER A736-01-983 / A73601983 nXDS10i 100-127V 200-240V single-phase 50/60Hz
