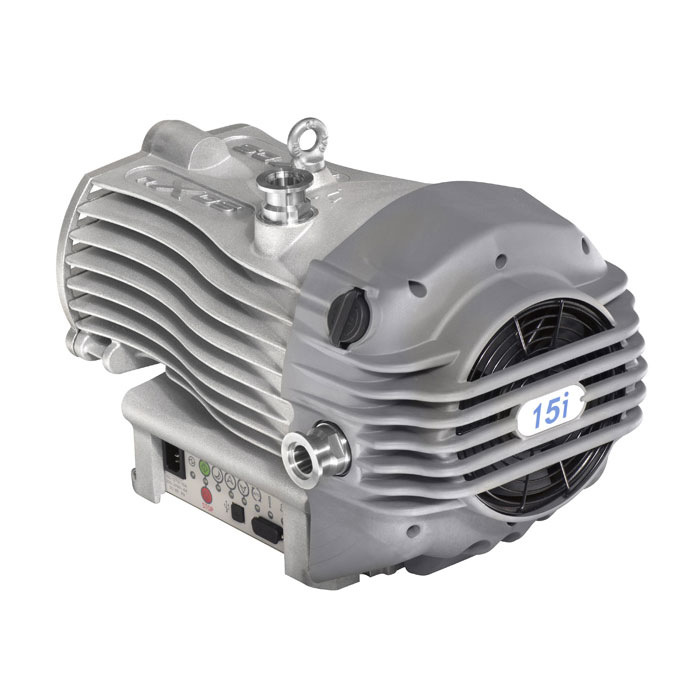

Edwards nXDS15i - REBUILT

Name: Edwards nXDS15i - REBUILT
Brand: Edwards
SKU: REBUILT_nXDS15i

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_nXDS15i

Request For Quote

Weight	56 lbs
Pumping Speed	15.1 m³/h
Ultimate Pressure	7 x 10^-3 mbar

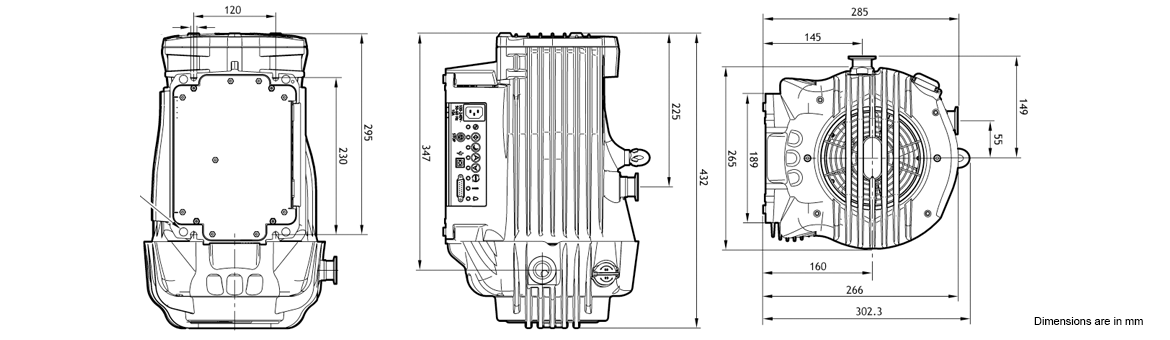

Dimensions

Description

Edwards nXDS15i Dry Scroll Vacuum Pump - REBUILT

Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Nominal rotation speed	1,800 rpm
Displacement	17.1 m³h^-1 / 10.1 ft³min^-1
Peak pumping speed	15.1 m³h^-1 / 8.9 ft³min^-1
Ultimate vacuum (Total pressure)	0.007 mbar / 0.005 Torr
Minimum standby rotational speed	1,200 rpm
Speed control resolution (percentage of full rotation speed)	1%
Pumping speed at minimum rotational speed	9.9
Max continuous inlet pressure	200 mbar
Motor power 1-phase	300 W
Power connector 1-phase	IEC EN60320 C13
Recommended fuse	10A, 250 VAC rms
Weight	25.2 kg / 56 lb
Inlet flange	NW25
Exhaust flange	NW25
Noise level	52 dB(A)
Vibration at inlet flange	< 4.5 mms^-1 (rms)
Leak tightness (static)	< 1 x 10^-6 mbar l/s
Operating temperature range	10 to 40°C / 50 to 104°F

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards nXDS Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL NUMBER nXDS15i Dry Scroll Vacuum Pump - REBUILT

PART NUMBER A737-01-983 / A73701983  nXDS15i  100-127V/200-240V 50/60Hz 1-phase
PART NUMBER A737-02-983 / A73702983  nXDS15iC  100-127V/200-240V 50/60Hz 1-phase
PART NUMBER A737-03-983 / A73703983  nXDS15iR  100-127V/200-240V 50/60Hz 1-phase
