Edwards nXDS6i - REBUILT
Call for Price
| Weight | 58 lbs |
|---|---|
| Pumping Speed | 6.2 m3/h |
| Ultimate Pressure | 2 x 10-2 mbar |

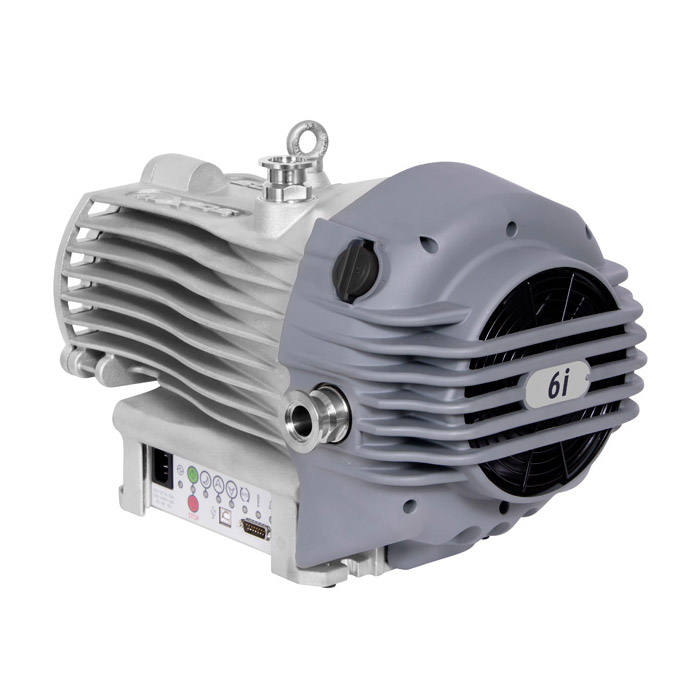

Edwards nXDS6i Dry Scroll Vacuum Pump - REBUILT
The nXDS6i is the next generation in completely oil free, dry scroll pumps and replaces the XDS5. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Nominal rotation speed | 1,800 rpm |
| Displacement | 6.2 m3h-1 / 3.6 ft3min-1 |
| Peak pumping speed | 6.2 m3h-1 / 3.6 ft3min-1 |
| Ultimate vacuum (Total pressure) | 0.020 mbar / 0.015 Torr |
| Minimum standby rotational speed | 1,200 rpm |
| Speed control resolution (percentage of full rotation speed) | 1% |
| Pumping speed at minimum rotational speed | 4.1 |
| Max continuous inlet pressure | 200 mbar |
| Motor power 1-phase | 260 W |
| Power connector 1-phase | IEC EN60320 C19 |
| Recommended fuse | 10A, 250 VAC rms |
| Weight | 26.2 kg / 58 lb |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
| Noise level | 52 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1 x 10-6 mbar l/s |
| Operating temperature range | 10 to 40°C / 50 to 104°F |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nXDS Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL NUMBER nXDS6i Dry Scroll Vacuum Pump - REBUILT PART NUMBER A735-01-983 / A73501983 nXDS6i 100-127V 200-240V single-phase 50/60Hz PART NUMBER A735-02-983 / A73502983 nXDS6iC 100-127V 200-240V 1-phase 50/60Hz PART NUMBER A735-03-983 / A73503983 nXDS6iR 100-127V 200-240V 1-phase 50/60Hz
