Edwards pHMB 2400 - REBUILT
Call for Price
In stock
SKU
REBUILT_PHMB2400
Edwards pHMB 2400 Mechanical Booster Vacuum Pump - REBUILT
The pHMB 2400 proximity booster is a water-cooled, positive displacement Roots vacuum pump which is driven through an a.c. inverter. Each pump must be backed using a suitable Edwards dry pump selected to match process and performance specifications.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mass | 325 kg / 716 lbs |
| Noise at ultimate | <55 dBA |
| Vibration to Foreline at ultimate | <1.5 mm/s |
| Vibration to floor at ultimate | <0.1 mm/s |
| Operating pressure range (Inlet) | Ultimate vacuum to 1,000 mbar* |
| Operating pressure range (outlet) | Ultimate vacuum to 3,000 mbar |
| Warm-up time till nominal pump performance | 15 minutes |
| Minimum warm-up time till process gas pumping | 4 hours |
| Ambient operating temperature range | -20 to 40°C |
| Relative Humidity | 10-90% |
| Storage | -40 to +55°C |
| Maximum operating altitude | 2,000 m |
| Pollution degree | 2(IEC60664-1) |
| Materials in contact w/ pumping gases | Steel, SG iron, PTFE, fluoroelastomer and aluminium |
| Gearbox oil capacity | 0.7 litres |
| Grade of oil | SAE40/ISO150 |
| Recommended oil type | Fomblin® 25/6 Krytox® 1525 Drynert® 25/6 |
| Inlet flange type | ISO 160 |
| Exhaust flange type | ISO 100 |
| Mains power connector | Harting HanK4/2 or ILME CXF4/2 (Harting equivalent) |
| Cable outside diameter range | 18-27 mm |
| Maximum conductor cross sectional area | 16 mm2 |
| Water inlet connector | 3/8 inch male quick-disconnect |
| Water outlet connector | 3/8 inch female quick-disconnect |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards pHMB Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards pHMB 2400 Mechanical Booster Vacuum Pump - REBUILT A53307959 / A533-07-959
Related Products
-
Edwards EH2600 - NEWCall for Price
-

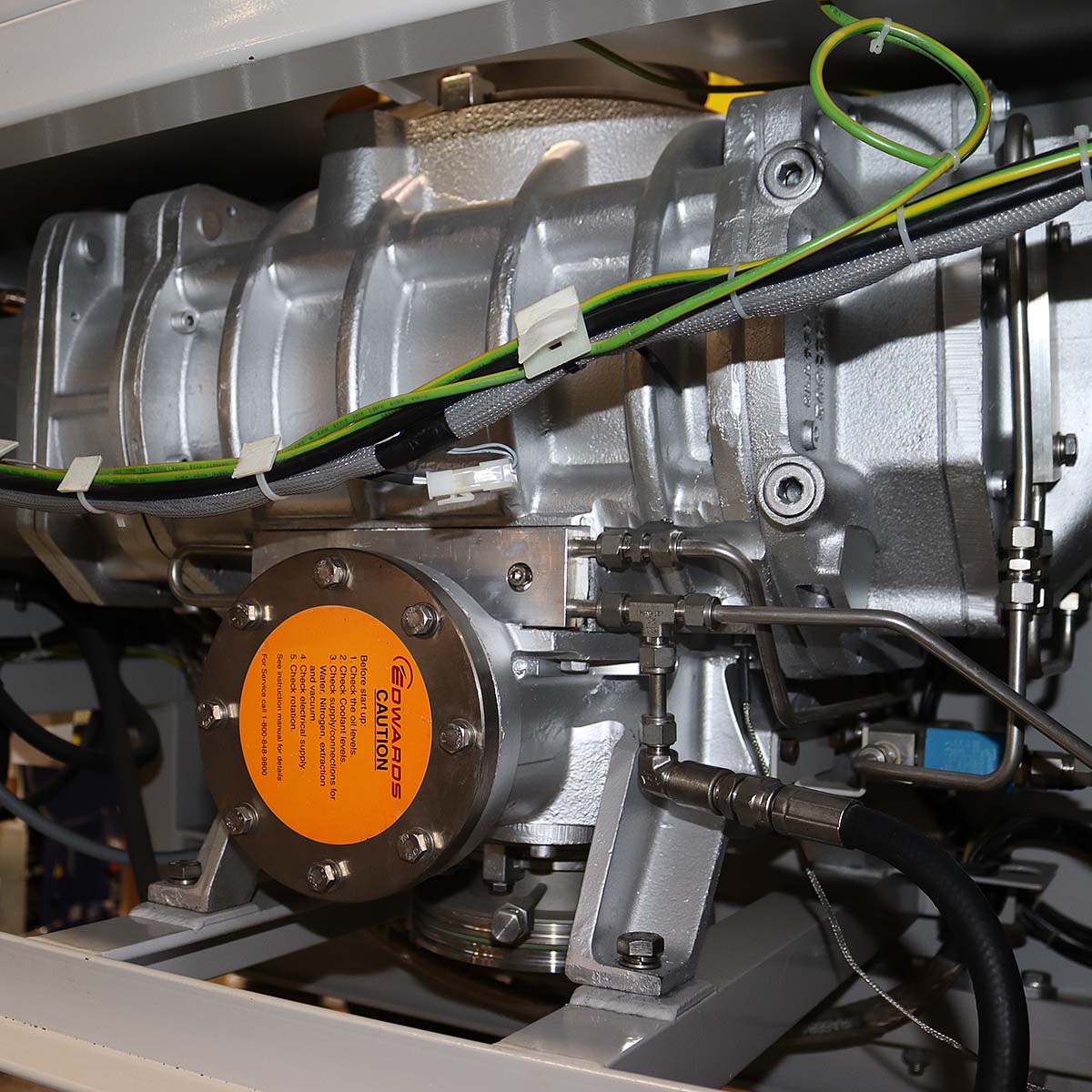

Edwards HMB 3000 - REBUILTCall for Price
-

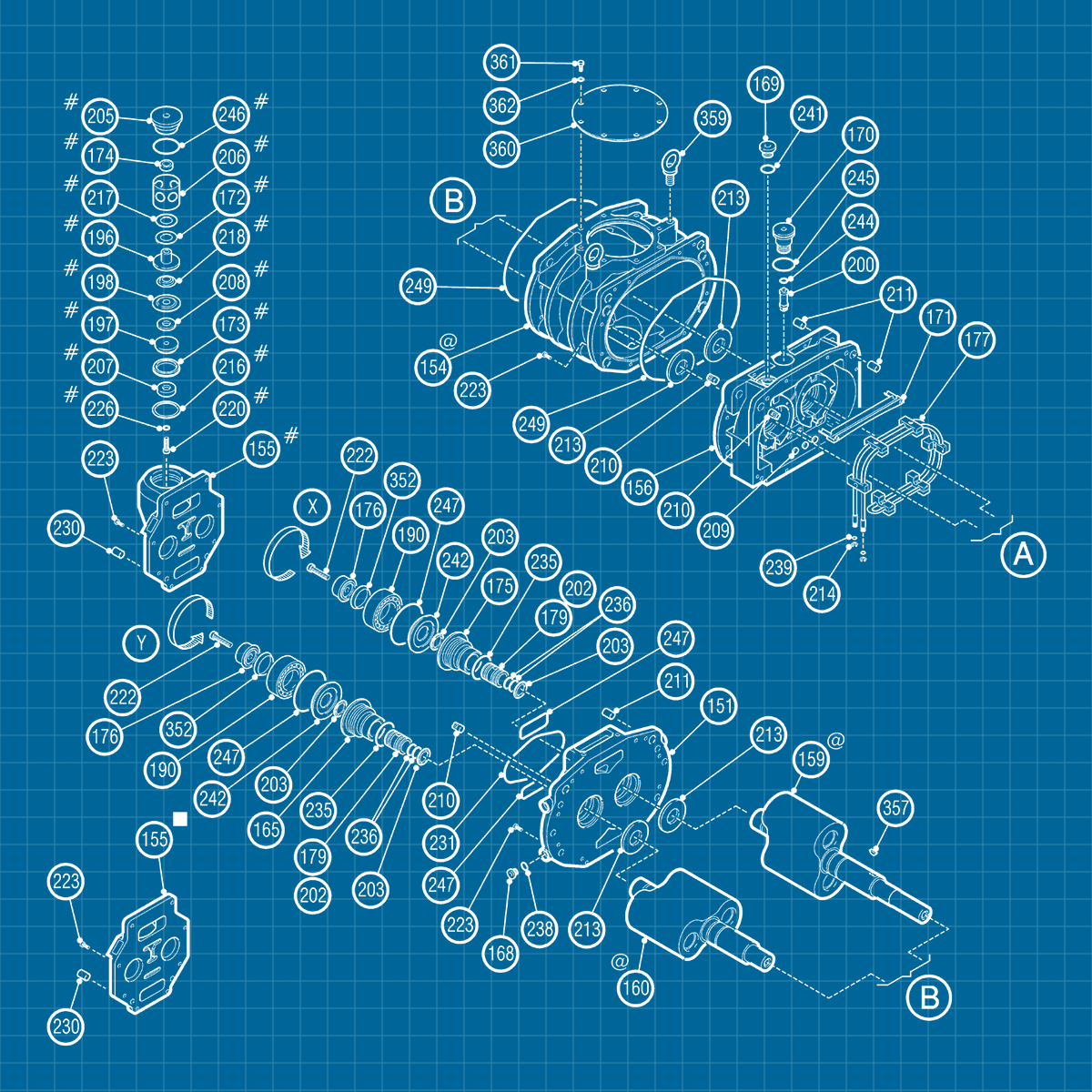

Edwards pHMB 2400 - SERVICECall for Price
