Edwards QDP40 / QMB250 - REBUILT

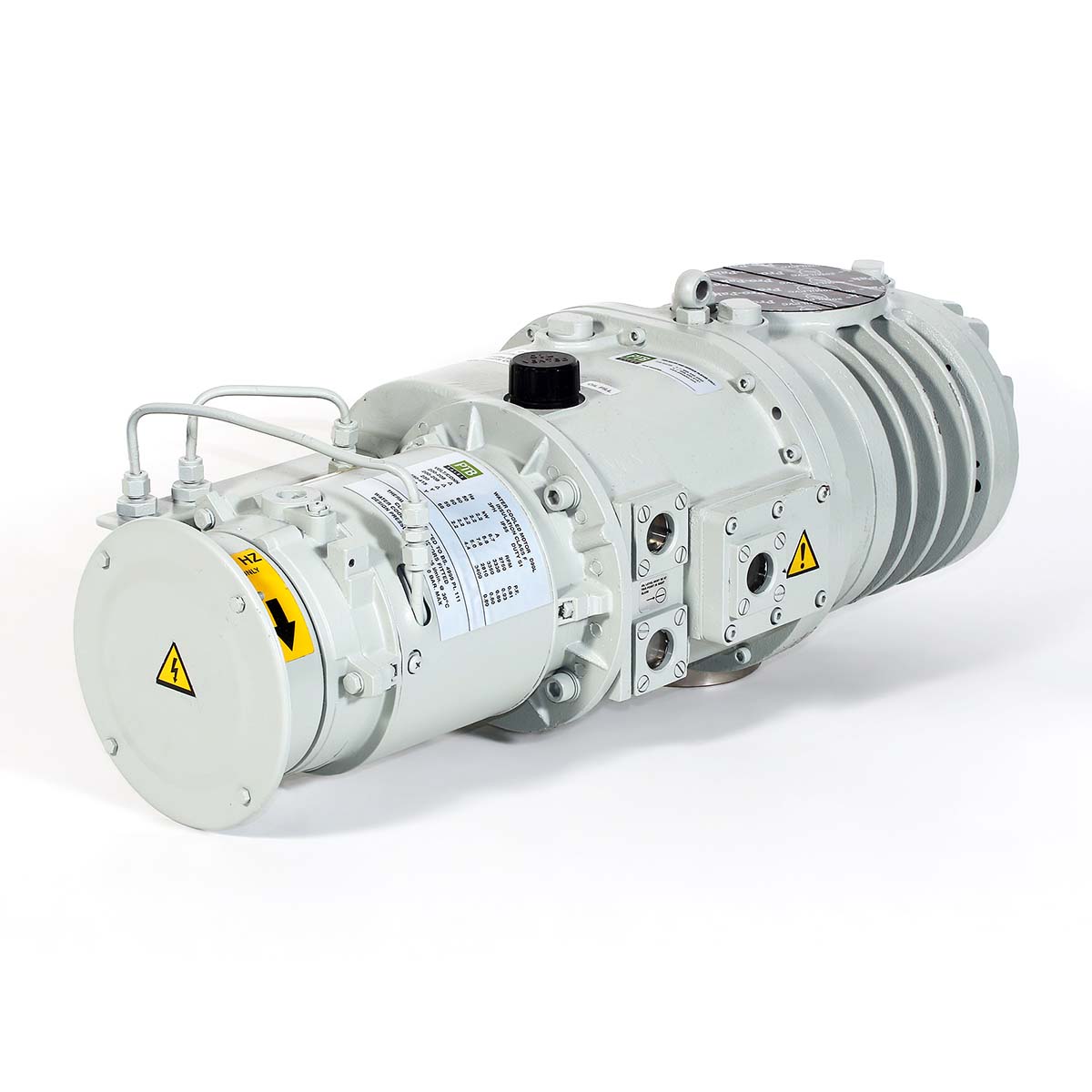

Edwards QDP40 / QMB250 Vacuum Blower System - REBUILT
Rebuilt with one year warranty. Edwards QMB250 vacuum blower and QDP40 dry pump package. We also offer repair service. View our inventory of Edwards blowers and DRYSTAR pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications |
iQDP40 / QDP40 / DP40 |
iQDP80 / QDP80 / DP80 |
| 60 Hz |
| Peak speed |
| m3h-1 |
55 |
96 |
| cfm |
32 |
56.4 |
| Displacement |
| m3h-1 |
62 |
110 |
| cfm |
36.7 |
64.7 |
| Ultimate vacuum |
| mbar |
3 x 10-2 |
1 x 10-2 |
| Torr |
2 x 10-2 |
8 x 10-3 |
| Inlet connection |
ISO 40 bolted |
ISO 63 bolted |
| Outlet connection |
NW 40 |
NW 40 |
| Power input @ vacuum (kW) |
1.3 |
3.1 |
| Motor power (kW) |
2.2 |
4.0 |
| Weight (kg) |
186 |
216 |
| Specifications |
QMB 250 |
| Mass |
65 kg |
| Minimum cooling water flow |
75 l.h-1 |
| Oil capacity |
| Coupling cover |
1.5 l |
| Shaft seal reservoir |
0.125 l |
| Rotational speed |
| 50 Hz |
2 |
| Type |
Label |
Description |
Download |
|
|
BOC Edwards QMB Series - REBUILT |
Instruction Manual |
Download
|
|
|
BOC Edwards QDP Series - REBUILT |
Instruction Manual |
Download
|
