Edwards QDP80 / QMB500 - REBUILT
Call for Price
In stock
SKU
REBUILT_QDP80/QMB500
| Weight | 720 lbs |
|---|

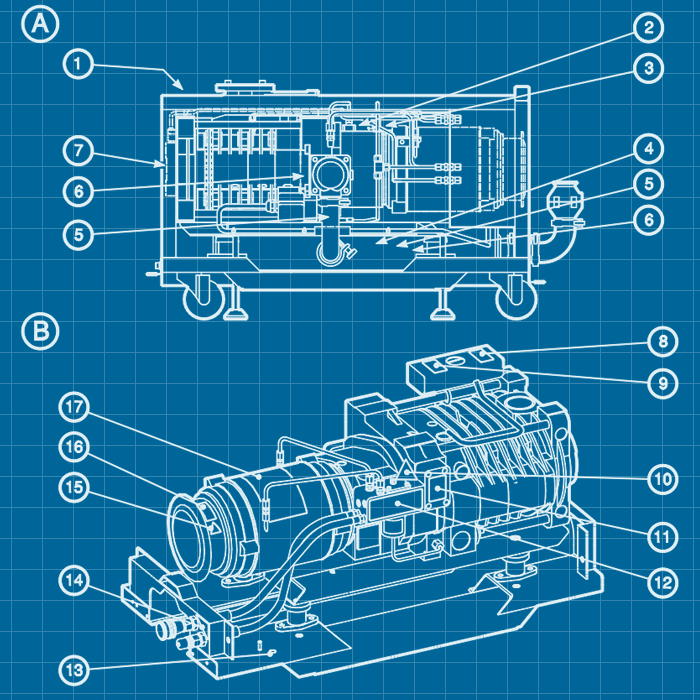

Edwards QDP80 / QMB500 Vacuum Blower System - REBUILT
Rebuilt with one year warranty. Edwards QMB500 vacuum blower and QDP80 dry pump package. We also offer repair service. View our inventory of Edwards blowers and DRYSTAR pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | iQDP40 / QDP40 / DP40 | iQDP80 / QDP80 / DP80 |
|---|---|---|
| 60 Hz | ||
| Peak speed | ||
| m3h-1 | 55 | 96 |
| cfm | 32 | 56.4 |
| Displacement | ||
| m3h-1 | 62 | 110 |
| cfm | 36.7 | 64.7 |
| Ultimate vacuum | ||
| mbar | 3 x 10-2 | 1 x 10-2 |
| Torr | 2 x 10-2 | 8 x 10-3 |
| Inlet connection | ISO 40 bolted | ISO 63 bolted |
| Outlet connection | NW 40 | NW 40 |
| Power input @ vacuum (kW) | 1.3 | 3.1 |
| Motor power (kW) | 2.2 | 4.0 |
| Weight (kg) | 186 | 216 |
| Specifications | QMB500 |
|---|---|
| Mass | 78 kg |
| Minimum cooling water flow | 75 l.h-1 |
| Oil capacity | |
| Coupling cover | 1.5 l |
| Shaft seal reservoir | 0.125 l |
| Rotational speed | |
| 50 Hz | 2 |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards QMB Series - REBUILT | Instruction Manual | Download |
|
|
BOC Edwards QDP Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards QDP80 / QMB500 Vacuum Blower System - REBUILT
