Edwards QDP80 - REBUILT
Call for Price
In stock
SKU
REBUILT_QDP80
| Weight | 445.30 lbs |
|---|---|
| Pumping Speed | 80 m/h |
| Ultimate Pressure | 3 x 10-2 mbar |

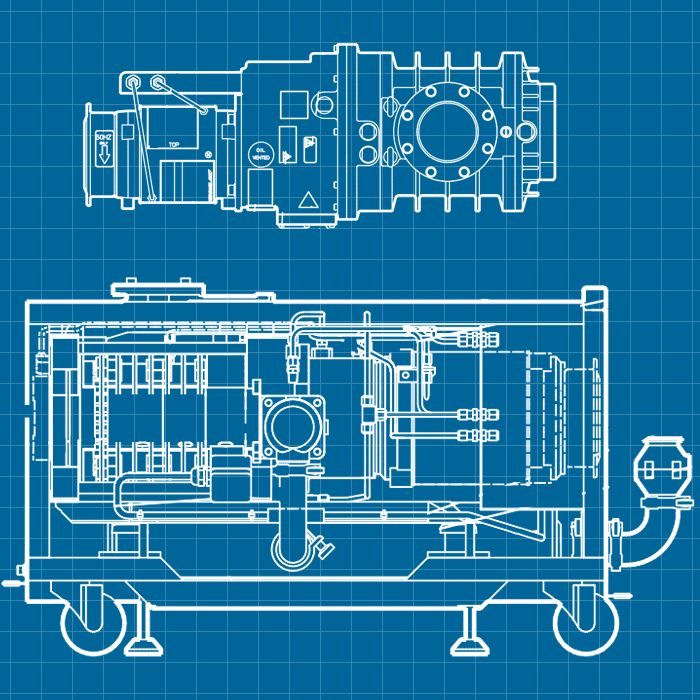

Edwards QDP80 Semiconductor Dry Vacuum Pump - REBUILT
One year warranty on rebuilt used Edwards DRYSTAR pumps. Sound enclosure panels, various nitrogen purge configurations and other features can be provided per quote.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| iQDP40 / QDP40 / DP40 | iQDP80 / QDP80 / DP80 | |
|---|---|---|
| 60 Hz | ||
| Peak speed | ||
| m3h-1 | 55 | 80 |
| cfm | 32 | 56.4 |
| Displacement | ||
| m3h-1 | 62 | 110 |
| cfm | 36.7 | 64.7 |
| Ultimate vacuum | ||
| mbar | 5 x 10-2 | 3 x 10-2 |
| Torr | 2 x 10-2 | 8 x 10-3 |
| Inlet connection | ISO 40 bolted | ISO 63 bolted |
| Outlet connection | NW 40 | NW 40 |
| Power input @ vacuum (kW) | 1.3 | 3.1 |
| Motor power (kW) | 2.2 | 4.0 |
| Weight (kg) | 172 | 202 |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards QDP Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards QDP80 Semiconductor Dry Vacuum Pump - REBUILT Q20000002 / Q200-00-002 QDP80 200V 60Hz 3-phase
