Edwards QMB-1200 - REBUILT
Call for Price
| Weight | 347 lbs |
|---|---|
| Motor Power | 4 hp |
| Pumping Speed | 557 cfm |
| Ultimate Pressure | 8 x 10-4 mbar |

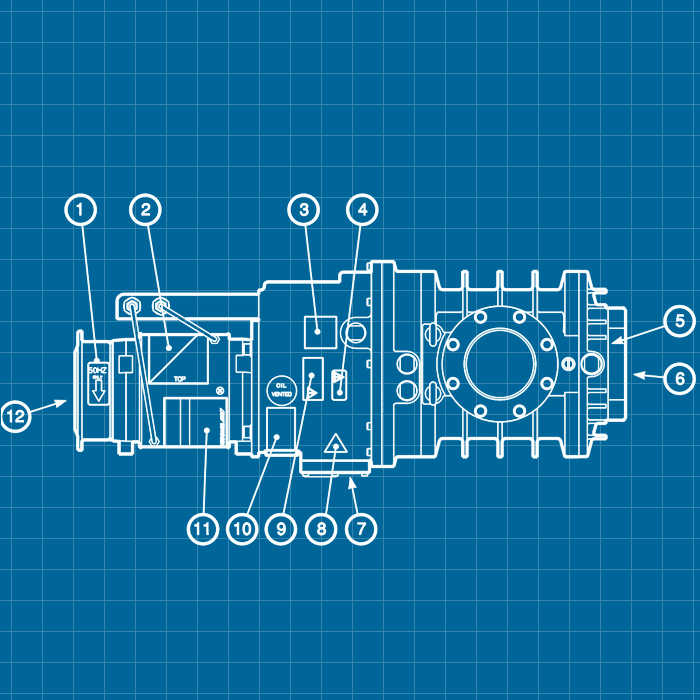

Edwards QMB-1200 Mechanical Vacuum Blower - REBUILT
BOC Edwards QMB mechanical booster pumps are compact and have high pumping speeds. Low system pressures can be achieved by using two or more mechanical booster pumps in series. You must use the QMB mechanical booster pump with a suitable backing pump. The maximum continuous inlet pressure is 20 mbar for the QMB250F and QMB500F mechanical booster pumps and 1 mbar for the QMB1200 mechanical booster pumps.
The QMB250F and QMB500F pumps are air-cooled and the QMB1200 pump is water-cooled. All the QMB pumps have enclosed, water-cooled motors and are therefore suitable for applications in clean environments where fan cooling is unacceptable.
The pump coupling-cover is connected to the pump outlet and forms an integral part of the vacuum system. The connecting pipelines have a filter which removes debris and so prevents contamination of the lubricating oil and bearings. For an even cleaner system, the coupling-cover and bearings can be evacuated by connection to the pump-inlet or to an external vacuum pump.
Rebuilt with one year warranty. View our inventory of Edwards blowers.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Mass | 157 kg |
| Minimum cooling water flow | 75 l/h-1 |
| Oil capacity | |
| Coupling cover | 2.4 l |
| Gear case | 1.25 l |
| Shaft seal reservoir | 0.125 l |
| Rotational speed | |
| 50 Hz | 2,900 r/min-1 |
| 60 Hz | 3,500 |
| Ult. pressure w/o gas ballast, permanent gases | 8 x 10-4 / 8 x 10-2 Pa |
| Pressure differential across pump determined by the hydrokinetic drive | 90 mbar / 9 x 103 Pa |
| Recommended backing-pump | QDP80 or DP180 |

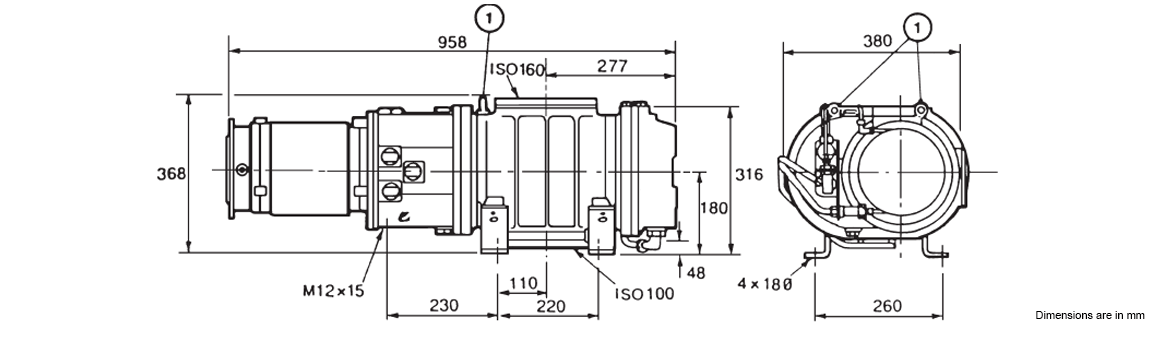

| Vacuum connections | |
| Inlet connection | ISO160 bolted |
| Outlet connection | ISO100 bolted |
| Cooling water connections | |
| Inlet (BSP) | 3/8 inch male |
| Outlet (BSP) | 3/8 inch female |
| Noise level | 70 dB(A) |
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards QMB Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards QMB-1200 Mechanical Vacuum Blower - REBUILT A30586905 / A305-86-905 QMB-1200FX 200-460V 50/60Hz 3-phase A30585905 / A305-85-905 QMB-1200FX 50Hz
