Edwards RV5 - NEW

Name: Edwards RV5 - NEW
Brand: Edwards
SKU: NEW_RV5

Be the first to review this product

$4,236

In stock

Only %1 left

SKU

NEW_RV5

Request For Quote

Weight	55 lbs
Motor Power	0.60 hp
Pumping Speed	5.1 m³/h
Ultimate Pressure	2 x 10^-3 mbar

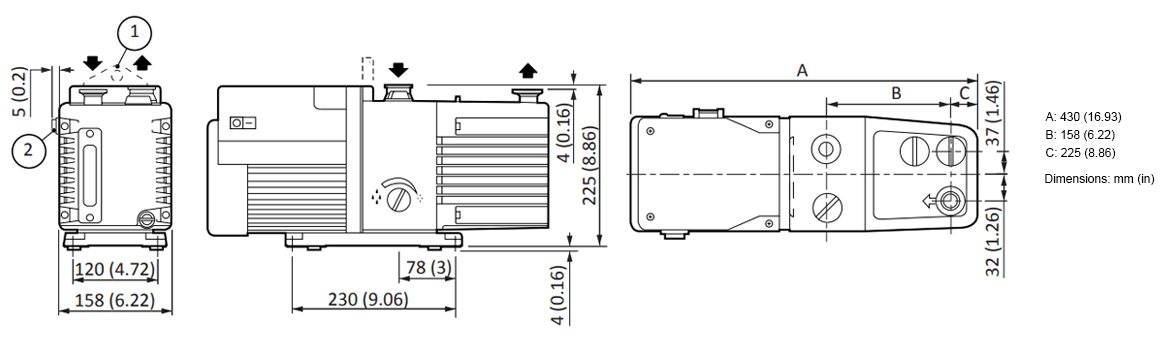

Dimensions

Description

Edwards RV5 Two Stage Rotary Vane Vacuum Pump - NEW

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With over 200,000 units sold, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications. All RV pumps are approved to UL and CSA standards by an external test house and feature our unique mode selector switch, meaning one model is suitable for both high vacuum or high throughput applications. In summary, you can rest assured that when you choose an Edwards RV oil sealed rotary vane pump you are choosing a product you can rely on from a company you can trust.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	5.8 m³h^-1 / 3.4 ft³min^-1
60 Hz	7.0 m³h^-1 / 4.1 ft³min^-1
Speed (Pneurop 6602)
50 Hz	5.1 m³h^-1 / 3.0 ft³min^-1
60 Hz	6.2 m³h^-1 / 3.7 ft³min^-1
Ultimate pressure	2.0 x 10^-3 mbar / 1.5 x 10^-3 Torr
Ultimate pressure GB I	3.0 x 10^-2 mbar / 2.3 x 10^-2 Torr
Ultimate pressure GB II	1.0 x 10^-1 mbar / 7.5 x 10^-2 Torr
Ultimate pressure w/ Fomblin®	2.0 x 10^-2 mbar / 1.5 x 10^-2 Torr
Maximum inlet pressure for water vapour	50 mbar / 38 Torr
Maximum water vapour pumping rate - GB I	60 gh^-1
Maximum water vapour pumping rate - GB II	220 gh^-1
Max allowed outlet pressure	0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure	0.5 bar gauge / 7 psig
Motor power 50/60Hz	450 / 550W
Power connector 1-phase	IEC EN60320 C13
Nominal rotation speed 50/60Hz	1,500 / 1,800 rpm
Weight (w/out oil)	25 kg / 55 lbs
Oil capacity min/max	0.42/0.7 litre
Inlet flange	NW25
Exhaust flange	NW25
Noise level	48 dB(A) @ 50 Hz
Recommended oil	Ultragrade 19
Operating temperature range	12 – 40°C

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards RV Series - REBUILT	Instruction manual	Download
	Edwards RV Series - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards MODEL RV5 Hydrocarbon Two Stage Rotary Vane Vacuum Pump - NEW

CODE No. A653-01-903 / A65301903  RV5  115/230V, single-phase, 50/60Hz, Factory set to 230V for Europe
CODE No. A653-01-906 / A65301906  RV5  115/230V, 1-phase, 50/60Hz, Factory set to 115V for USA
CODE No. A653-01-904 / A65301904  RV5  100/200V, 1-phase, 50/60Hz, Factory set to 200V for Japan
         A653-01-905 / A65301905  RV5  200-220/380-415V, three-phase, 50Hz and 200-230/460V, 3-phase, 60Hz, Factory set to 380/460V
         A653-09-903 / A65309903  RV5 PFPE  115/230V, 1-phase, 50/60Hz, Factory set to 230V for Europe
         A653-09-906 / A65309906  RV5 PFPE  115/230V, 1-phase, 50/60Hz, Factory set to 115V for USA
         A653-09-904 / A65309904  RV5 PFPE  100/200V, 1-phase, 50/60Hz, Factory set to 200V for Japan
         A653-09-905 / A65309905  RV5 PFPE  200-220/380-415V, 3-phase, 50Hz and 200-230/460V, 3-phase, 60Hz, Factory set to 380/460V

Atlas Copco GVD 5  1-phase 110-120V 50/60Hz
Atlas Copco GVD 5  1-phase 220-240V 50/60Hz
Atlas Copco GVD 5  3-phase 208-230/460V 50/60Hz
