Edwards RV5 - REBUILT
$1,845
In stock
SKU
REBUILT_RV5
| Weight | 55 lbs |
|---|---|
| Motor Power | 0.6 hp |
| Pumping Speed | 5.1 m3/h |
| Ultimate Pressure | 2 x 10-3 mbar |

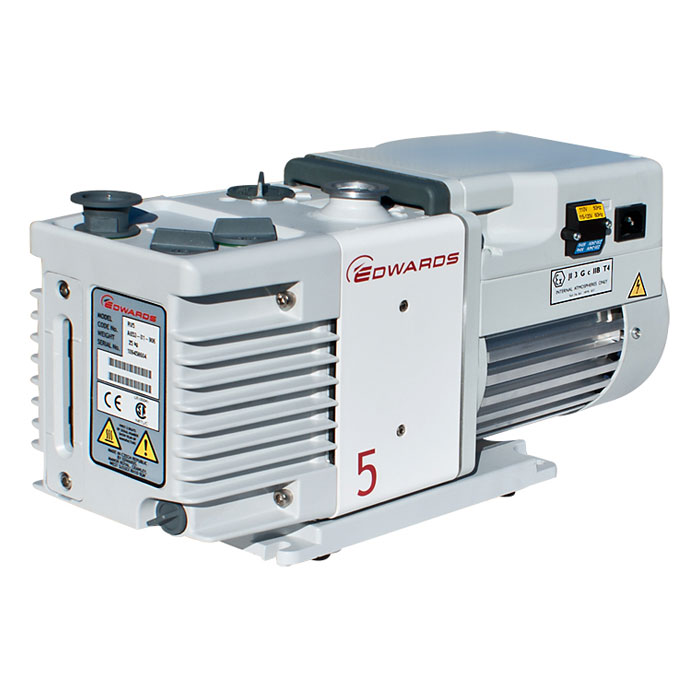

Edwards RV5 Two Stage Rotary Vane Vacuum Pump - REBUILT
We are selling the Edwards CODE No. A653-01-906, which specifies that the RV5 is user switchable: 115 or 230V for USA.
Edwards RV pumps have become the industry standard for scientific primary pumping applications. RV pumps are uniquely capable of delivering high or low throughputs with high ultimate vacuum. This, combined with ultra-low noise levels, makes them ideal for a wide range of applications including GCMS and other small bench top type applications.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 5.8 m3h-1 / 3.4 ft3min-1 |
| 60 Hz | 7.0 m3h-1 / 4.1 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 5.1 m3h-1 / 3.0 ft3min-1 |
| 60 Hz | 6.2 m3h-1 / 3.7 ft3min-1 |
| Ultimate pressure | 2.0 x 10-3 mbar / 1.5 x 10-3 Torr |
| Ultimate pressure GB I | 3.0 x 10-2 mbar / 2.3 x 10-2 Torr |
| Ultimate pressure GB II | 1.0 x 10-1 mbar / 7.5 x 10-2 Torr |
| Ultimate pressure w/ Fomblin® | 2.0 x 10-2 mbar / 1.5 x 10-2 Torr |
| Maximum inlet pressure for water vapour | 50 mbar / 38 Torr |
| Maximum water vapour pumping rate - GB I | 60 gh-1 |
| Maximum water vapour pumping rate - GB II | 220 gh-1 |
| Max allowed outlet pressure | 0.2 bar gauge / 2.8 psig |
| Max allowed inlet and gas ballast pressure | 0.5 bar gauge / 7 psig |
| Motor power 50/60Hz | 450 / 550W |
| Power connector 1-phase | IEC EN60320 C13 |
| Nominal rotation speed 50/60Hz | 1,500 / 1 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL RV5 Hydrocarbon Two Stage Rotary Vane Vacuum Pump - REBUILT CODE No. A653-01-904 / A65301904 RV5 100/200V 50/60Hz Japan CODE No. A653-01-906 / A65301906 RV5 115/230V for USA Agilent G7000-89021 / G700089021 RV5 200V Inland G7000-89020 / G700089020 RV5 115V Inland G7000-89022 / G700089022 RV5 230V Inland Pump Comparison: Edwards RV3 - Thermo Scientific / Savant VLP80 ValuPump Edwards RV5 - Thermo Scientific / Savant VLP120 ValuPump / Labconco 117 Edwards RV8 - Thermo Scientific / Savant VLP200 ValuPump / Labconco 195 Edwards RV12 - Thermo Scientific / Savant VLP285 ValuPump
