Free air displacement	500 cfm	840 m³/h
Motor power	30 hp
Rotation speed	721 rpm
Oil capacity (total/refill)	15/12.5 gal	57/47 liters
Cooling water at 60°F (16°C)	2.5 gpm	9 l/min
Cooling water inlet connection	3/8" NPT
Suction connection	6" 150 lb ANSI flanged
Discharge connection	4" 150 lb ANSI flanged
Height w/o oil mist eliminator	63 in
Floor space required	34 x 36 in
Weight	2,625 lbs
Ultimate pressure	1.0 × 10^-2 Torr
Noise level (typical at .1 torr)	73 dBA

Specs

Digital Manuals

Type	Label	Description	Download
	Edwards STP Series	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

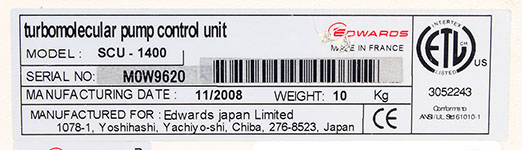

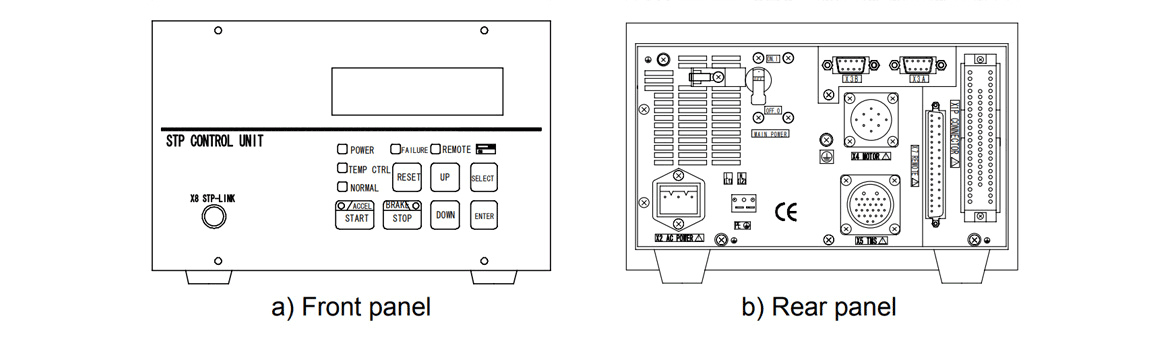

Edwards SCU-1400 Universal STP Turbomolecular Vacuum Pump Controller

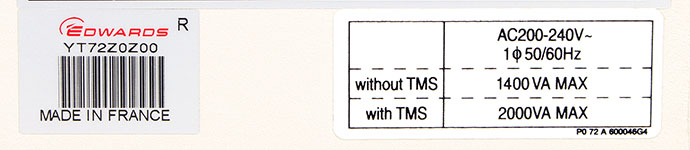

YT72Z0Z00 / YT72-Z0-Z00

Controller / Pump
SCU-21D / Universal / STP-301/451
SCU-P055PRT2 / Universal
SCU-350 / Universal / STP-301/451, STP-L301/L451
SCU-750 / Universal / STP-603/1003, STP-H301/H451, STP-H803/H1303, STP-A803C/A1303, STP-A1603
SCU-800 / Universal / STP-603/1003, STP-H301/H451, STP-H803/H1303, STP-A803C/A1303, STP-A1603
SCU-XL800 / Universal / STP-603/1003, STP-A803/A1303C
SCU-1400 / Universal / STP-A2203/2503/2803/3003/3503, STP-F2203, STP-XA2703/3203, STP-XH2603/3203
SCU-1500 / Universal / STP-A2203/2503/2803/3003/3503, STP-F2203, STP-XA2703/3203, STP-XH2603/3203
SCU-1600 / Universal / STP-A2203/2503/2803/3003/3503, STP-F2203, STP-XA2703/3203/4503, STP-XH2603/3203
