Edwards SCU-1500 - REBUILT
$5,875
In stock
SKU
REBUILT_SCU1500
| Height | 132.5 mm |
|---|---|
| Width | 209.7 mm |
| Length | 500 mm |
| Weight | 27 lbs |

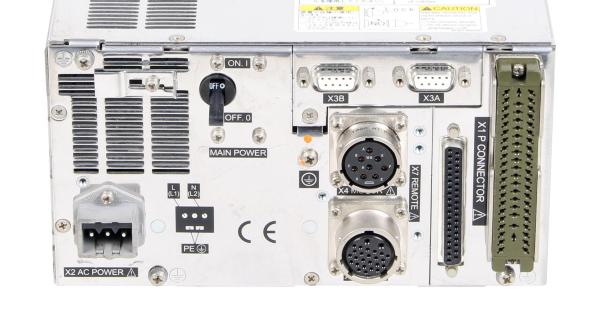

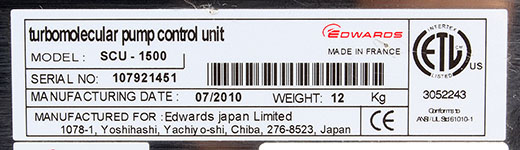

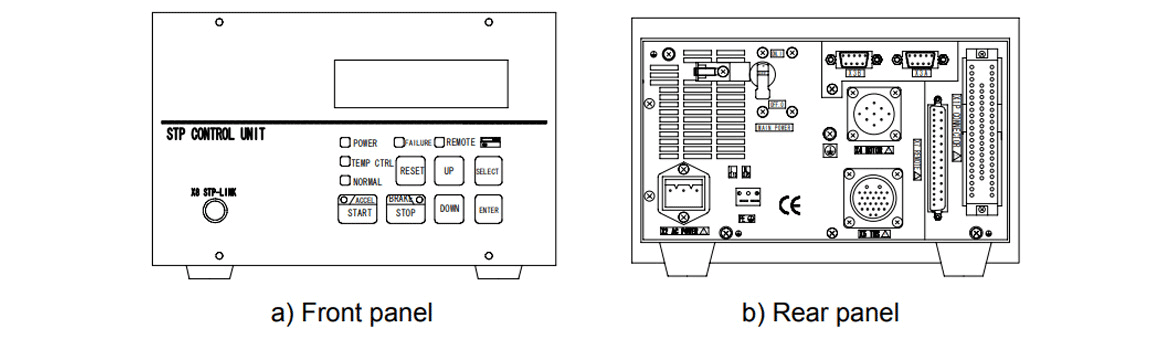

Edwards SCU-1500 Universal STP Turbomolecular Vacuum Pump Controller
Sold with a 90 day warranty. Edwards Seiko Seiki SCU-1500 universal turbo vacuum pump controller, part # PT59Z0Z00. View our inventory of other Edwards Seiko Seiki turbo pump controllers.
Compatible Turbo Pumps
- STP-A2203/2503/2803/3003/3503
- STP-F2203
- STP-XA2703/3203/4503
- STP-XH2603/3203
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement | 50 Hz 60 Hz |
1,000 L/min 1,200 L/min |
||||||
| Ultimate pressure Pa {Torr} | ≤ 1 {≤ 7.5 x 10-3} | |||||||
| Leak tightness Pa • m3/s | ≤ 1.0 x 10-5 | |||||||
| Max. inlet pressure | Atmospheric pressure | |||||||
| Ambient operating temperature | 10°C ~ 40°C | |||||||
| Type | 3-phase squirrel cage induction motor 4P Totally-Enclosed Insulation Class B IP44 |
|||||||
| Output | 1.4 kW | |||||||
| Voltage | 200 V | 208 V | 230 V | 380 V | 400 V | 415 V | 460 V | |
| Rated current A | 50 Hz 60 Hz |
5.5 5.8 |
- 5.8 |
- 5.7 |
3.1 - |
3.4 - |
3.6 - |
- 3.3 |
| Revolution min-1 {rpm} | 50 Hz 60 Hz |
1,450 1,735 |
- 1,735 |
- 1,755 |
1,465 - |
1,470 - |
1,470 - |
- 1,765 |
| Noise level at 1m dB(A) w/ air-flush ON |
≤ 67 ≤ 74 |
|||||||
| Inlet connection | NW40 | |||||||
| Outlet connection | NW40 | |||||||
| Direction of inlet | Horizontal (vertical) | |||||||
| Dimensions | 504 x 390 x 421 mm 19.8 x 15.3 x 16.5 in |
|||||||
| Mass | 56 kg (123.4 lbs) | |||||||
| Cooling system | Air-cooled | |||||||
| Others | w/ hour counter and air-flush |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

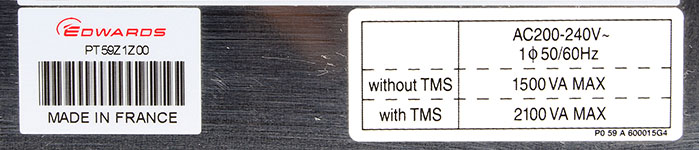

Edwards SCU-1500 Universal STP Turbomolecular Vacuum Pump Controller PT59Z1Z00 / PT59-Z1-Z00 PT59Z0Z00 / PT59-Z0-Z00 PT59Z0Z10 / PT59-Z0-Z10
