Edwards SCU 800 - NEW
Call for Price

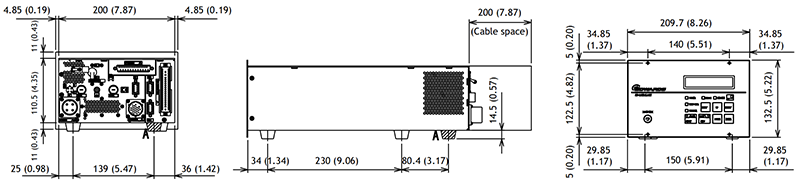

| Height | 132.5 mm |
|---|---|
| Width | 209.7 mm |
| Length | 380 mm |
| Weight | 19 lbs |

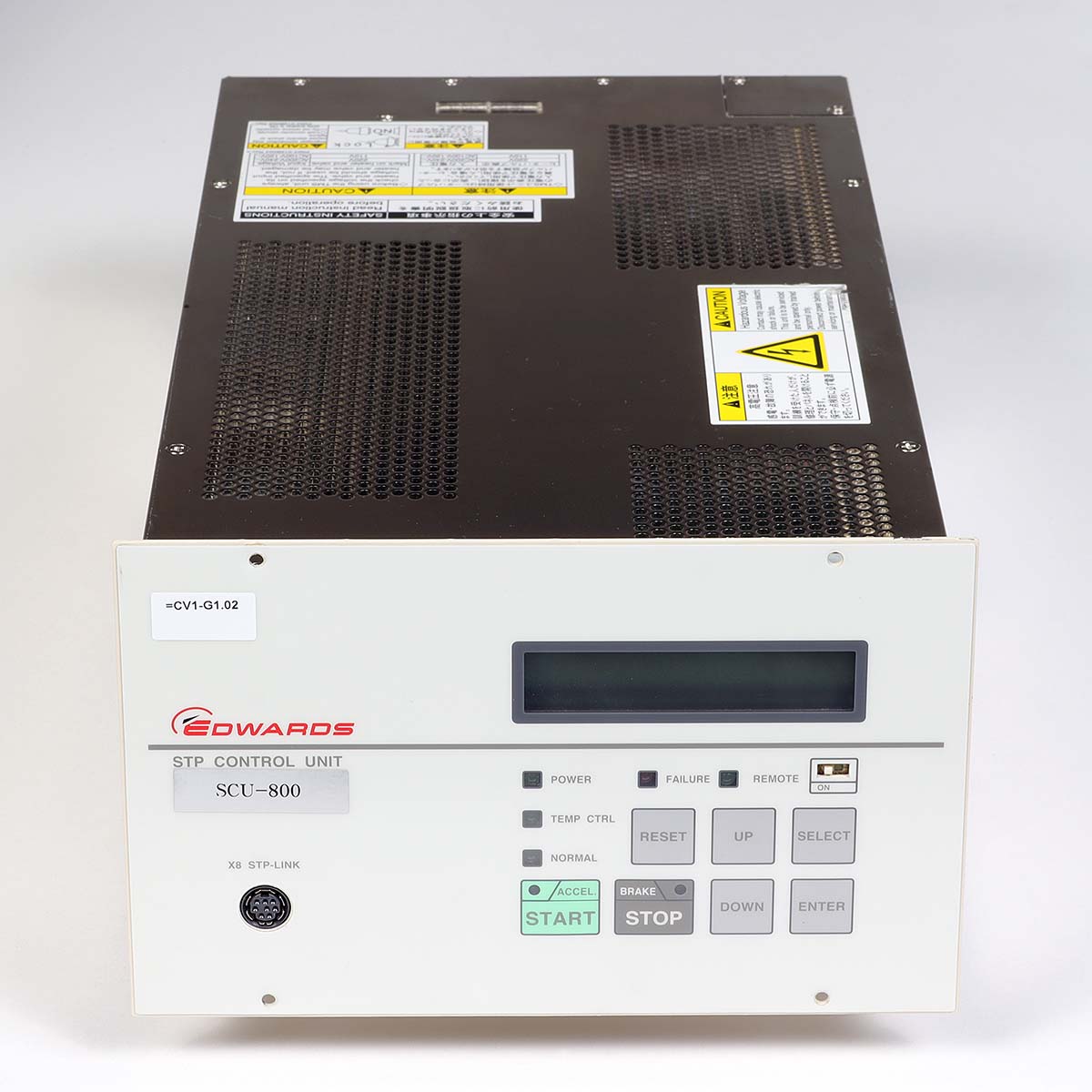

Edwards SCU-800 Turbomolecular Vacuum Pump Control Unit - NEW
The Edwards SCU800 turbo pump control unit is a fully digital controller, and has perfect compatibility for middle sized pumps. New AVR (Auto vibration reduction) technology achieves a further reduction in vibration levels, and the advanced pre-maintenance call function provides advanced notice of precise maintenance time. The reliability focused design, enhanced communication function, and perfect compatibility bring significant back up units savings and contributes to a reduction in total C0O.
Universal Controller
- Single controller is used for middle sized pumps. No requirement for different controllers for each pump type
- Service back up stocks will be reduced
Advanced Pre-maintenance Function
- AVR (Auto Vibration Reduction) minimizes the rotate system vibration during acceleration.
- ABS (Auto Balancing System)
Highest Reliability
- Conforms to international safety standards
- CE/UL/SEMI S2
Communication Port Standardized
- RS232/RS485 communication ports are fitted as standard
- Dual communication ports enable simultaneous connection to remote control interface and Edwards fabworks monitoring system
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Magnetic bearing control system | Digital control |
| Input voltage | 100 - 120 ± 10 VAC 200 - 240 ± 10 VAC |
| Power consumption (w/ TMS) | Max 850 VA |
| Power consumption (w/o TMS) | Max 1,200 VA |
| Input frequency | 50/60 ±2 Hz |
| Leak current | 3.5 mA |
| Main breaker rated current | 10 A |
| Motor drive system | 3 phase DC |
| Allowable ambient temperature | 0 to 40°C (32 to 104°F) |
| Weight | 8.5 kg |
| Panel display | LCD |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards SCU-800 Turbomolecular Vacuum Pump Control Unit - NEW YT49Z2Z00 / YT49-Z2-Z00 SCU-800
