Edwards Stokes 607 Booster - NEW

Name: Edwards Stokes 607 Booster - NEW
Brand: Edwards
SKU: NEW_607B

Be the first to review this product

Call for Price

In stock

SKU

NEW_607B

Request For Quote

Weight	475 lbs
Motor Power	10 hp
Ultimate Pressure	3.80 x 10² Torr

Description

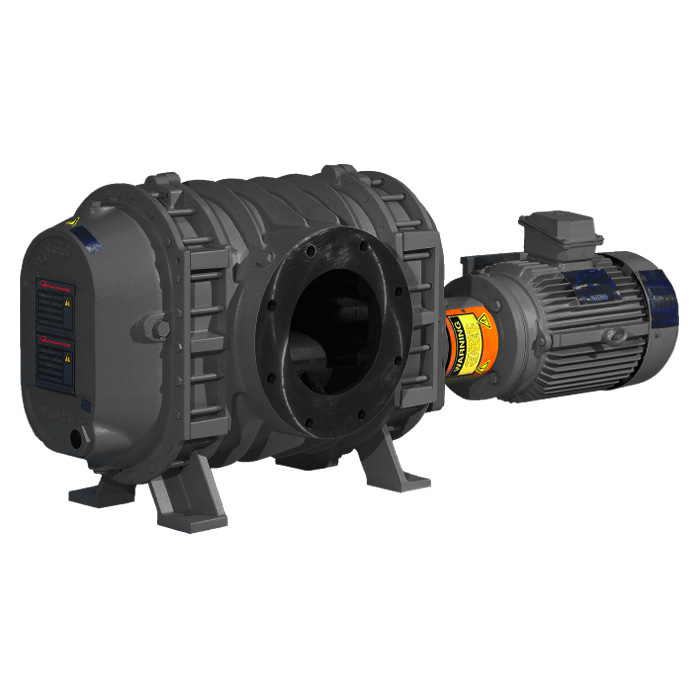

Edwards Stokes 607 6" Series Mechanical Booster - NEW

The Stokes 6" Series mechanical booster pumps provide high throughput pumps for industrial and arduous chemical applications. Utilizing reliable, rugged designs, these pumps offer a low cost, space saving pumping system.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Specifications	Horizontal flow	Vertical flow
Displacement	Horizontal flow	Vertical flow
V belt (2,750 rpm)	1,589 m³h^-1 / 935 ft³min^-1
Direct drive (3,000 rpm)	1,733 m³h^-1 / 1,020 ft³min^-1
Direct drive (3,600 rpm)	2,080 m³h^-1 / 1,224 ft³min^-1
Inlet / outlet flanges	6” ASA / ANSI
Motor power EU / Asia	7.5 kW
Motor power US TEFC	10 hp
Cooling water	7.6 - 11.4 l min^-1 / 2 - 3 gal min^-1
Oil capacity	1.9 liter / 0.51 gal	4.1 liter / 1.1 gal
Max pressure differential	506 mbar / 380 Torr
Max temp rise	135°C / 275°F
Max discharge temp	191°C / 375°F
Weight bare shaft	215 kg / 475 lbs
Weight TEFC direct drive	345kW / 760 hp
Recommended oil	V-Lube H

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards MHR & MVR 607 - 622 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards Stokes 607 6" Series Mechanical Booster - NEW

9006075H10  607 5H10  10hp, 230/460V, three-phase, 60Hz @ 1,800 rpm
9006075HR  607 5HR  (Bare shaft) Horizontal flow
9006075V10  607 5V10  10hp, 230/460V, 3-phase, 60Hz @ 1,800 rpm
9006075VR  607 5VR  (Bare shaft) Vertical flow
9006075HR601  607 5HR  CE 7.5kW, 230/400V, 3-phase, 50Hz @ 3,000 rpm
9006075HR602  607 5HR  CE 7.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
9006075VR601  607 5VR  CE 7.5kW, 230/400V, 3-phase, 50Hz @ 3,000 rpm
9006075VR602  607 5VR  CE 7.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
