Edwards Stokes 61B Booster - NEW

Name: Edwards Stokes 61B Booster - NEW
Brand: Edwards
SKU: NEW_61B

Be the first to review this product

Call for Price

In stock

SKU

NEW_61B

Request For Quote

Weight	625 lbs
Motor Power	25 hp

Description

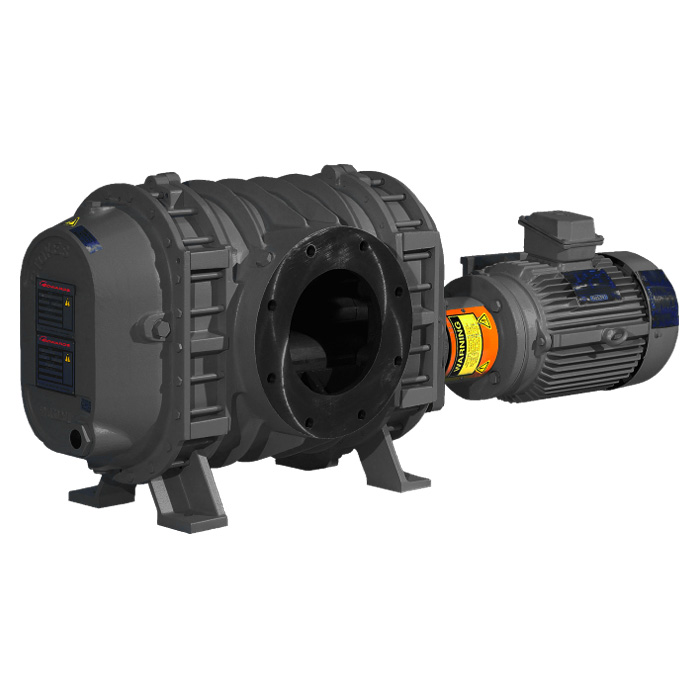

Edwards Stokes 61B 6" Series Mechanical Booster - NEW

The Stokes 6" Series mechanical booster pumps provide high throughput pumps for industrial and arduous chemical applications. Utilizing reliable, rugged designs, these pumps offer a low cost, space saving pumping system.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Specifications	Horizontal flow	Vertical flow
Displacement	Horizontal flow	Vertical flow
V belt (2,750 rpm)	3,375 m³h^-1 / 2,000 ft³min^-1
Direct drive (1,800 rpm)	2,210 m³h^-1 / 1,300 ft³min^-1
Direct drive (3,000 rpm)	3,685 m³h^-1 / 2,170 ft³min^-1
Direct drive (3,600 rpm)	4,420 m³h^-1 / 2,600 ft³min^-1
Inlet / outlet flanges	8” ASA / ANSI
Motor power EU / Asia	18.5 kW
Motor power US TEFC	10 / 25 hp
By-pass available	Yes
Cooling method	Air cooled
Oil capacity	1.9 liter / 0.51 gal	4.1 liter / 1.1 gal
Max temp rise	135°C / 275°F
Max discharge temp	191°C / 375°F
Weight bare shaft	284 kg / 625 lbs
Weight TEFC direct drive	530 kg / 1,170 lbs

Digital Manuals

Type	Label	Description	Download
	Edwards MHR & MVR 607 - 622 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards Stokes 61B 6" Series Mechanical Booster - NEW

90061B5H25  61B 5H25  25hp, 230/460V, 3-phase, 60Hz @ 3,600 rpm
90061B5HR  61B 5HR  (Bare Shaft) Horizontal flow
90061B5V25  61B 5V25  25hp, 230/460V, 3-phase, 60Hz @ 3,600 rpm
90061B5VR  61B 5VR  (Bare shaft) Vertical flow
90061B5VR601  61B 5VR  CE 18.5kW, 230/400V, 3-phase, 50Hz @ 3,000 rpm
90061B5VR602  61B 5VR  CE 18.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
90061B5HR601  61B 5HR  CE 18.5kW, 230/400V, 3-phase, 50Hz @ 3,000 rpm
90061B5HR602  61B 5HR  CE 18.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
