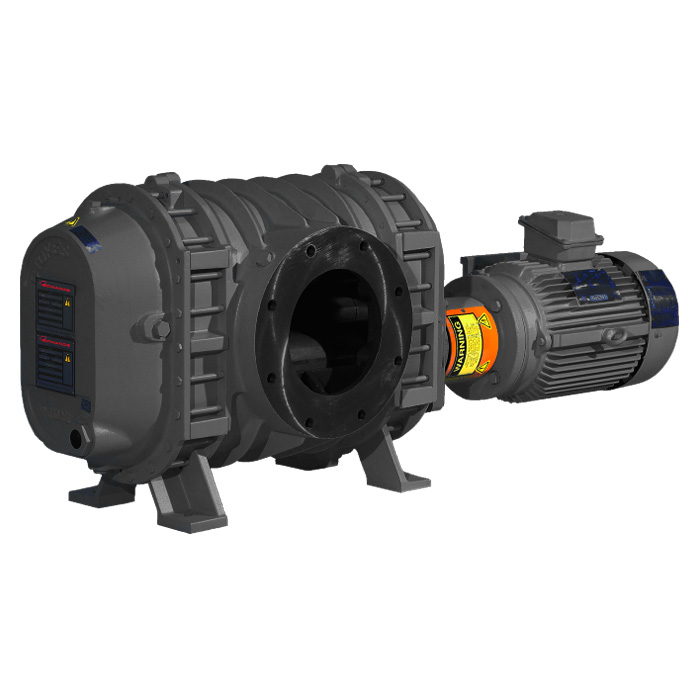

Edwards Stokes 61B Superblower - NEW
Call for Price
In stock
SKU
NEW_61SB
| Weight | 625 lbs |
|---|---|
| Motor Power | 25 hp |
Edwards Stokes 61B 6" Series Mechanical Superblower - NEW
The Stokes 6" Series mechanical booster pumps provide high throughput pumps for industrial and arduous chemical applications. Utilizing reliable, rugged designs, these pumps offer a low cost, space saving pumping system.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | Horizontal flow | Vertical flow |
|---|---|---|
| Displacement | ||
| V belt (2,750 rpm) | 3,375 m3h-1 / 2,000 ft3min-1 | |
| Direct drive (1,800 rpm) | 2,210 m3h-1 / 1,300 ft3min-1 | |
| Direct drive (3,000 rpm) | 3,685 m3h-1 / 2,170 ft3min-1 | |
| Direct drive (3,600 rpm) | 4,420 m3h-1 / 2,600 ft3min-1 | |
| Inlet / outlet flanges | 8” ASA / ANSI | |
| Motor power EU / Asia | 18.5 kW | |
| Motor power US TEFC | 10 / 25 hp | |
| By-pass available | Yes | |
| Cooling method | Air cooled | |
| Oil capacity | 1.9 liter / 0.51 gal | 4.1 liter / 1.1 gal |
| Max temp rise | 135°C / 275°F | |
| Max discharge temp | 191°C / 375°F | |
| Weight bare shaft | 284 kg / 625 lbs | |
| Weight TEFC direct drive | 530 kg / 1,170 lbs | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards Stokes 6 Inch Booster Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Stokes 61B 6" Series Mechanical Superblower - NEW 90061BMH10 61B MH10 10hp, 230/460V, three-phase, 60Hz @ 1,800 rpm 90061BMH25 61B MH25 25hp, 230/460V, 3-phase, 60Hz @ 3,600 rpm 90061BMHR 61B MHR (Bare shaft) Horizontal flow 90061BMHR601 61B MHR CE 18.5kW, 400V, 3-phase, 50Hz @ 3,000 rpm 90061BMV10 61B MV10 10hp, 230/460V, 3-phase, 60Hz @ 1,800 rpm 90061BMV25 61B MV25 25hp, 230/460V, 3-phase, 60Hz @ 3,600 rpm 90061BMVR 61B MVR (bare shaft) Vertical flow 90061BMVR601 61B MVR CE 18.5kW, 400V, 3-phase, 50Hz @ 3,000 rpm 90061BMHR602 61B MHR CE 18.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm 90061BMVR602 61B MVR CE 18.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
