Edwards Stokes 622 Superblower - NEW

Name: Edwards Stokes 622 Superblower - NEW
Brand: Edwards
SKU: NEW_622SB

Be the first to review this product

Call for Price

In stock

SKU

NEW_622SB

Request For Quote

Weight	740 lbs
Motor Power	25 hp
Ultimate Pressure	2.50 x 10² Torr

Description

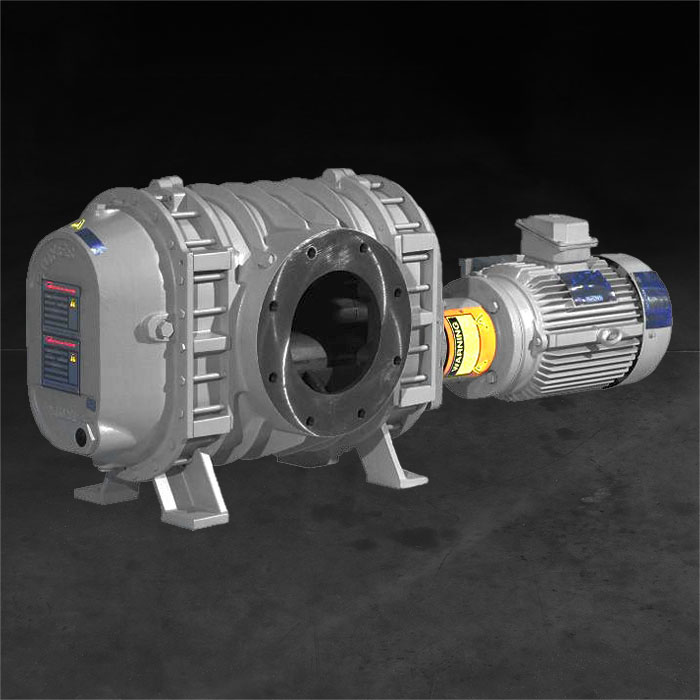

Edwards Stokes 622 6" Series Mechanical Superblower - NEW

The Stokes 6" Series mechanical booster pumps provide high throughput pumps for industrial and arduous chemical applications. Utilizing reliable, rugged designs, these pumps offer a low cost, space saving pumping system.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Specifications	Horizontal flow	Vertical flow
Displacement	Horizontal flow	Vertical flow
V belt (2,750 rpm)	5,100 m³h^-1 / 3,000 ft³min^-1
Direct drive (3,000 rpm)	5,525 m³h^-1 / 2,350 ft³min^-1
Direct drive (3,600 rpm)	6,630 m³h^-1 / 3,900 ft³min^-1
Inlet / outlet flanges	8” ASA / ANSI
Motor power EU / Asia	18.5 kW
Motor power US TEFC	25 hp
Cooling method	Air cooled
Oil capacity	1.9 liter / 0.51 gal	4.1 liter / 1.1 gal
Max pressure differential	333 mbar / 250 Torr
Max temp rise	151°C / 275°F
Max discharge temp	177°C / 350°F
Weight bare shaft	335 kg / 740 lbs
Weight TEFC direct drive	617 kW / 1,360 hp
Recommended oil	V-Lube H

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards MHR & MVR 607 - 622 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards Stokes 622 6" Series Mechanical Superblower - NEW

900622MH25  622 MH25  25hp, 230/460V, three-phase, 60Hz @ 3,600 rpm
900622MHR  622 MHR  (Bare shaft) Horizontal flow
6900622MHR601  22 MHR  CE 18.5kW, 400V, 3-phase, 50Hz @ 3,000 rpm
900622MV25  622 MV25  25hp, 230/460V, 3-phase, 60Hz @ 3,600 rpm
900622MVR  622 MVR  (Bare shaft) Vertical flow
900622MVR601  622 MVR  CE 18.5kW, 400V, 3-phase, 50Hz @ 3,000 rpm
900622MHR602  622 MHR  CE 18.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
900622MVR602  622 MVR  CE 18.5kW, 200-220/380V, 3-phase, 50/60Hz @ 3,000/3,600 rpm
