Edwards STP-iX455C - REBUILT
| Weight | 36 lbs |
|---|---|
| Pumping Speed | 300-450 l/s |
| Ultimate Pressure | 5 x 10-8 Torr |

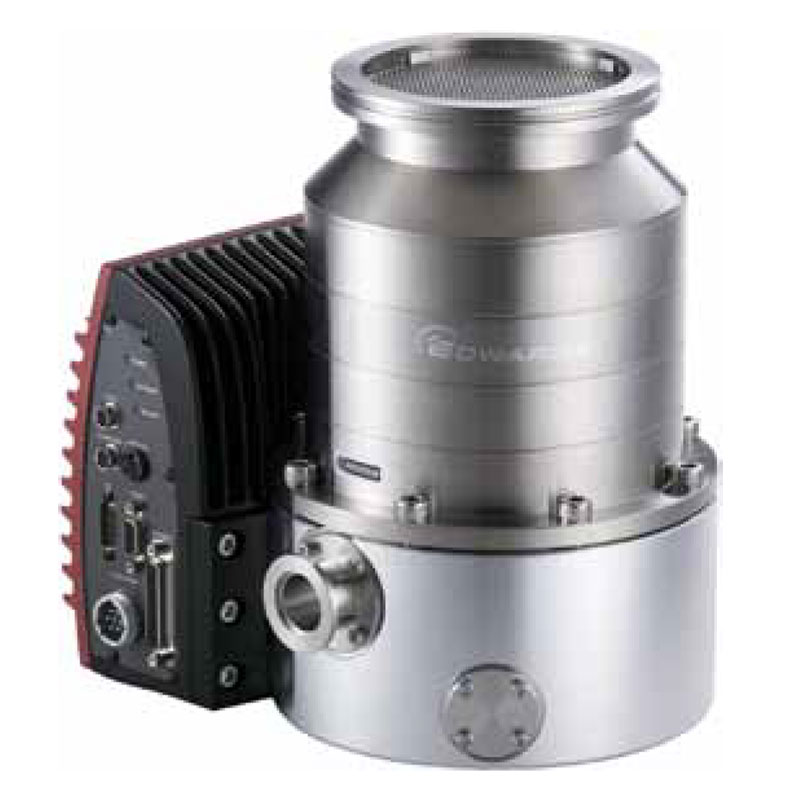

Edwards STP-iX455C Turbomolecular Vacuum Pump - REBUILT
The STP-iX455C turbomolecular pump features an innovative, magnetic bearing and motor drive system, providing a 50% reduction in vibration compared to previous generation turbo pumps. An integrated controller eliminates the need for a conventional, rack-mounted controller and interconnecting cables, and does not require water cooling.
The pump features 450 l/s pumping speed for nitrogen. The STP-iX455C is an excellent fit for electron microscope, metrology, lithography and other vibration sensitive applications.
- Compact Design including a fully integrated controller
- Inovative, Self-Sensing magnetic bearing system
- Digital 5-axis control
- Vibration levels reduced by 50% compared to the existing turbo pumps
- Can be configured to run corrosive processes
- Automatic Balancing System (ABS) standard
- Automatic Vibration Reduction (AVR) standard
- UL Listed, CE marked and SEMI® S2 compliant
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet flange | ISO-100K DN 100 CF |
ISO-160K DN 160 CF |
| Pumping speed | ||
| N2 | 300 l/s | 450 l/s |
| H2 | 300 l/s | 460 l/s |
| Compression ratio | ||
| N2 | > 108 | |
| H2 | > 1 x 104 | |
| Ultimate pressure | 6.5 x 10-6 Pa | (5 x 10-8 Torr) |
| Max. working pressure | 1.3 x 10-1 Pa | |
| Allowable backing pressure | 67 Pa | |
| Rated speed | 55,000 rpm | |
| Starting time | < 6 min | |
| Mounting position | Any orientation | |
| Cooling method | Not necessary | |
| Backing pump | 240 l/min-1 | |
| Leakage Magnetic Flux | ||
| Axial direction | < 100 m/gauss | |
| Radial direction | < 100 m/gauss | |
| Ambient temperature range | 0 - 40°C | |
| Storage temperature range | -25 to 55°C | |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards STP-iX455C / STP-iXL455C Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards STP-iX455C Turbomolecular Vacuum Pump - REBUILT
P/N YT64-1Z-070 / YT641Z070 STP-iX455C ISO-100K
P/N PT64-0Z-010 / PT640Z010 STP-iX455 ISO-100K
P/N PT64-0Z-020 / PT640Z020 STP-iX455 ISO-160K
PT64-0Z-050 / PT640Z050 STP-iX455 DN 100 CF
PT64-0Z-060 / PT640Z060 STP-iX455 DN 160 CF
