Edwards STP-XH2603P - REBUILT
Call for Price
Edwards Seiko Seiki STP-XH2603P Turbomolecular Vacuum Pump - REBUILT

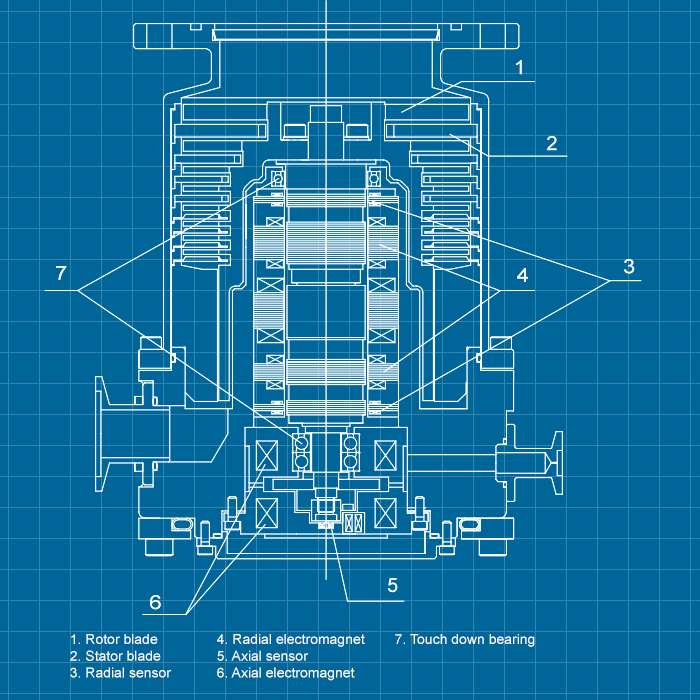

A Seiko Seiki turbo pump (STP) can be installed in any orientation and operate by remote control. If any rotor imbalance occurs (by deposition of process by-products, for example) sensors detect changes in its motion and compensate the magnetic fields accordingly. There are backup precision mechanical bearings to protect the pump in the event of a total disruption of magnetic suspension or a sudden massive air inrush that overcomes the magnetic bearing stiffness.
Model names ending in a C are corrosion-resistant, with nickel-coated rotors and stators and a nitrogen purge port. Ones with a prefix of H or A are high throughput pumps incorporating a hybrid pumping mechanism for higher gas flow. These are optimized for processes such as plasma etch. We also offer repair service.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards STP Series | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Seiko Seiki STP-XH2603P Turbomolecular Vacuum Pump - REBUILT P/N PT550Z001 / PT55-0Z-001 P/N YT55TZ002 / YT55-TZ-002
