Edwards STP-XH3203P - REBUILT

Edwards Seiko Seiki STP-XH3203P Turbomolecular Vacuum Pump - REBUILT

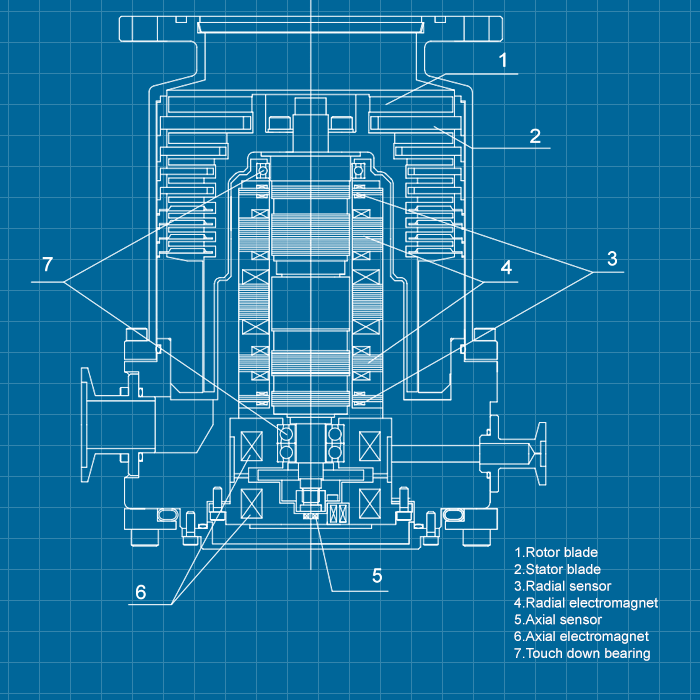

An STP pump can be installed in any orientation and operate by remote control. If any rotor imbalance occurs (by deposition of process by-products, for example) sensors detect changes in its motion and compensate the magnetic fields accordingly. There are backup precision mechanical bearings to protect the pump in the event of a total disruption of magnetic suspension or a sudden massive air inrush that overcomes the magnetic bearing stiffness.

Model names ending in a C are corrosion-resistant, with nickel-coated rotors and stators and a nitrogen purge port. Ones with a prefix of H or A are high throughput pumps incorporating a hybrid pumping mechanism for higher gas flow. These are optimized for processes such as plasma etch. We also offer repair service.

TMS system

The Edwards Temperature Management System is available on a wide range of turbo pumps. It is designed to optimize the temperature within the pump, dramat­ically reducing the particle condensation within. This will not only considerably enhance the performance of the pump under harsh process conditions, but also increase its operational life.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
