Edwards TAG - NEW
Call for Price
| Height | 48 mm |
|---|---|
| Width | 96 mm |
| Length | 165 mm |
| Weight | 0.66 lbs |
Edwards TAG Turbomolecular & Active Vacuum Gauge Controller - NEW

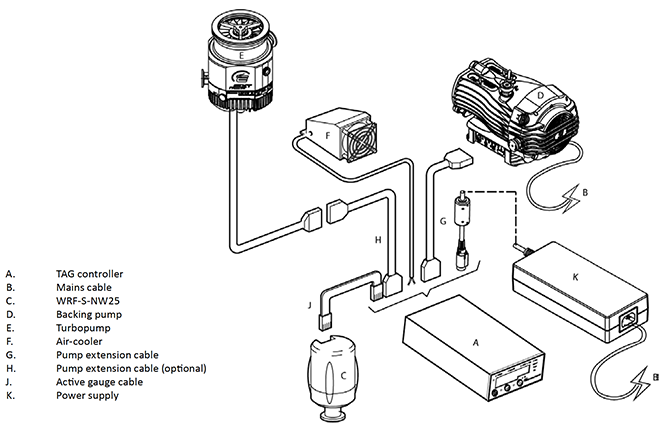

Edwards Turbo and Active (TAG) controller is a small low cost pumping system controller, suitable for a wide range of vacuum applications, and compatible with all Edwards EXT and nEXT turbomolecular pumps. The large LED display shows the pump speed or vacuum pressure, and an easy to use push button interface enables ease of operation and control. The TAG controller will also run a backing pump, air vent valve, an air cooler and an Edwards active gauge, making the TAG a versatile system controller. This compact 24V controller is ideal for use on bench tops or suitable mobile platforms where space is limited, yet functionality and reliability are essential. NOTE: TAG controller does not contain an in-built power source, a 24V power supply is available from Edwards or users must supply their own.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Max input power | 240 W |
| Mains input | |
| Electrical supply | 24 VDC |
| Power consumption (max) | 5 W |
| Auxiliary terminals | |
| Air cooling fan | 24 VDC 3.6 W max |
| Turbo pump | 24 VDC 160 W max |
| Dimensions | 96 x 48 x 165 mm |
| Mass | 0.3 kg |
| Operating temp | 0 to 40°C |
| Storage temp | -30 to 70°C |
| Max ambient operating humidity | 90% RH non-condensing at 40°C |
| Max operating altitude | 2,000 m |
| Enclosure rating | IP20. IP40 when panel mounted. |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards TAG Turbomolecular & Active Vacuum Gauge Controller - NEW D39592000 / D395-92-000 TAG
