Edwards XDS10 - REBUILT
Call for Price
In stock
SKU
REBUILT_XDS10
| Weight | 54 lbs |
|---|---|
| Motor Power | 0.4 hp |
| Pumping Speed | 9.3 m3/h |
| Ultimate Pressure | < 5.3 x 10-2 Torr |
Edwards XDS10 / C Dry Scroll Vacuum Pump - REBUILT

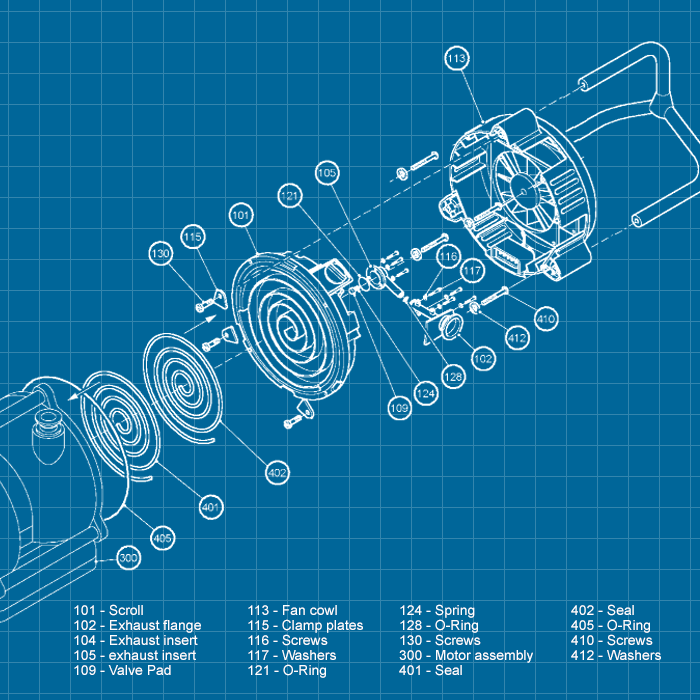

Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement | 50 Hz: 11.3 m3h-1 / 6.7 ft3min-1 60 Hz: 13.4 m3h-1 / 7.9 ft3min-1 |
| Peak pumping speed1 | 50 Hz: 9.3 m3h-1 / 5.5 ft3min-1 60 Hz: 11.1 m3h-1 / 6.5 ft3min-1 |
| Ultimate vacuum (Total pressure) | 50 Hz: 7 x 10-2 mbar / 5.3 x 10-2 Torr 60 Hz: 6 x 10-2 mbar / 4.5 x 10-2 Torr |
| Max inlet pressure for water vapor | 35 mbar / 23 Torr |
| Max water vapor pumping rate - GB I | 70 gh-1 |
| Max water vapor pumping rate - GB II | 200 gh-1 |
| Max allowed outlet pressure | 0.2 bar gauge / 2.9 psig* |
| Max allowed inlet & gas ballast pressure | 0.5 bar gauge / 7 psig |
| Motor power 1-phase & 3-phase | 0.3 kW |
| Power connector 1-phase | IEC EN60320 C13 |
| Nominal rotation speed 50/60 Hz | 1,500 / 1,800 rpm |
| Weight | 24.5 kg / 54 lb |
| Inlet flange | NW25 |
| Exhaust flange | NW25 |
| Noise level | 55 dB(A) @ 50 Hz |
| Vibration at inlet flange | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1 x 10-6 mbar l/s |
| Operating temperature range | 10 to 40°C / 50 to 104°F |
1 Pumping speed measured to PNEUROP 6602
* 1 bar gauge / 14 psig for short period of time only
| Type | Label | Description | Download |
|---|---|---|---|
|
BOC Edwards XDS 5 & 10 Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
BOC Edwards MODEL XDS10 / C Dry Scroll Vacuum Pump - REBUILT CODE No. A726-01-904 / A72601904 XDS10 100/200V 50/60Hz single-phase CODE No. A726-01-906 / A72601906 XDS10 110/240V 50/60Hz 1-phase CODE No. A727-01-906 / A72701906 XDS10C 110/240V 50/60Hz 1-phase
