Edwards XDS100B - REBUILT
Call for Price
In stock
SKU
REBUILT_XDS100B
| Weight | 106 lbs |
|---|---|
| Motor Power | 0.7 hp |
| Pumping Speed | 95 m3/h |
| Ultimate Pressure | < 8 x 10-3 Torr |
Edwards XDS100B Dry Scroll Vacuum Pump - REBUILT

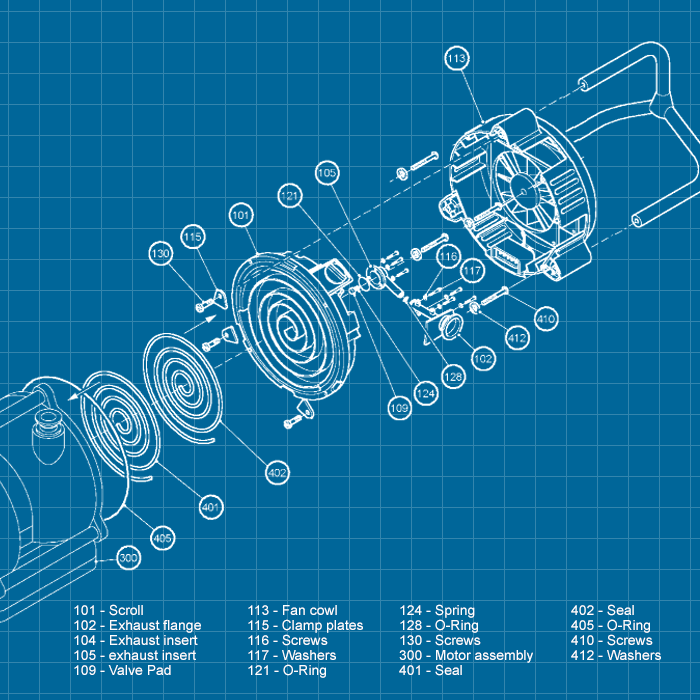

Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed 50/60 Hz | 95 m3h-1 / 56 ft3min-1 |
| Ultimate vacuum (Total pressure)* | < 1 x 10-2 mbar / < 8 x 10-3 Torr |
| Max continuous inlet pressure | 20 mbar / 15 Torr |
| Max continuous outlet pressure | 60 mbar / 45 Torr |
| Max permitted inlet pressure for short duration | 0.5 bar gauge / 7 psig |
| Max chamber volume to pump down from atmosphere | 100 litres |
| Max chamber volume for cyclic duty - max 6 per hour | 50 litres |
| Motor power | 0.52 kW |
| Nominal rotation speed | 1,750 rpm |
| Weight | 48 kg / 106 lb |
| Inlet flange | NW40 |
| Exhaust flange | NW40 |
| Noise level | 52.1 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1 x 10-6 mbar l/s |
| Operating temperature range | 10 to 40°C / 50 to 104°F |
* Ultimate pressure is backing pump dependent
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards XDS100B - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL XDS100B Dry Scroll Vacuum Pump - REBUILT CODE No. A732-01-983 / A73201983
