Edwards XDS46i - REBUILT
Weight
105 lbs
Motor Power
0.7 hp
Pumping Speed
40 m3 /h
Ultimate Pressure
4 x 10-2 Torr
Edwards XDS46i Dry Scroll Vacuum Pump - REBUILT

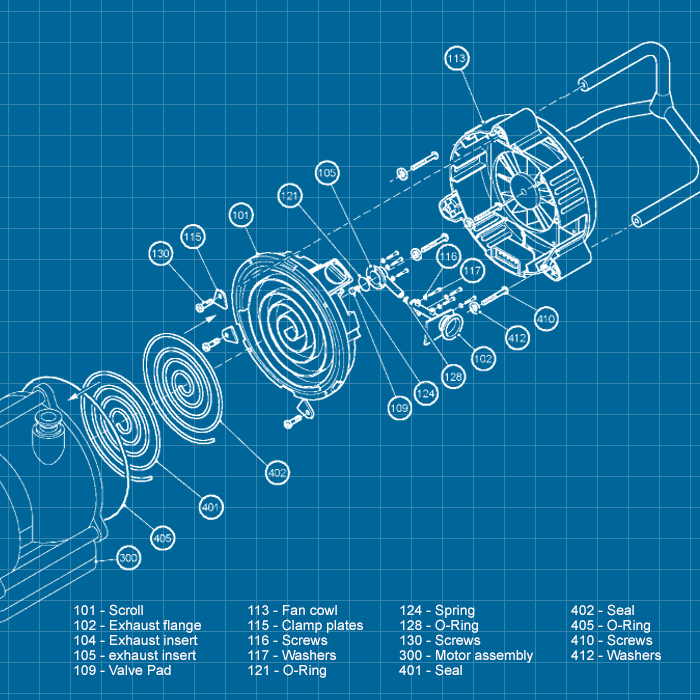

Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? send an email to our sales team!
Displacement 50 or 60 Hz
60 m3 h-1 / 35 ft3 min-1
Peak pumping speed 50 or 60 Hz
40 m3 h-1 / 23.5 ft3 min-1
Ultimate vacuum (Total pressure)
5 x 10-2 mbar / 4 x 10-2 Torr
Max continuous inlet pressure
40 mbar / 30 Torr
Max continuous outlet pressure
0.2 bar gauge / 2.9 psig*
Max allowed inlet and GB pressure
0.5 bar gauge / 7 psig
Motor power
0.52kW
Power connector
IEC EN60320 C19
Nominal rotation speed
1,750 rpm
Weight
48 kg / 105 lb
Inlet flange
NW40
Exhaust flange
NW25
Noise level
55.4 dB(A)
Vibration
< 4.5 mms-1 (rms)
Leak tightness (static)
< 1 x 10-6 mbar l/s
Operating temperature range
10 to 40°C / 50 to 104°F
Specifications
Type
Label
Description
Download
Edwards XDS46i - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL XDS46i Dry Scroll Vacuum Pump - REBUILT
CODE No. A731-01-983 / A73101983 XDS46i 100-120V/200-230V 50/60Hz set to 230V single-phase
CODE No. A731-06-983 / A73106983 XDS46iC 100-120V/200-230V 50/60Hz set to 230V 1-phase
