Edwards XDS35i - REBUILT
Call for Price
In stock
SKU
REBUILT_XDS35i
| Weight | 105 lbs |
|---|---|
| Motor Power | 0.7 hp |
| Pumping Speed | 35 m3/h |
| Ultimate Pressure | 8 x 10-3 Torr |

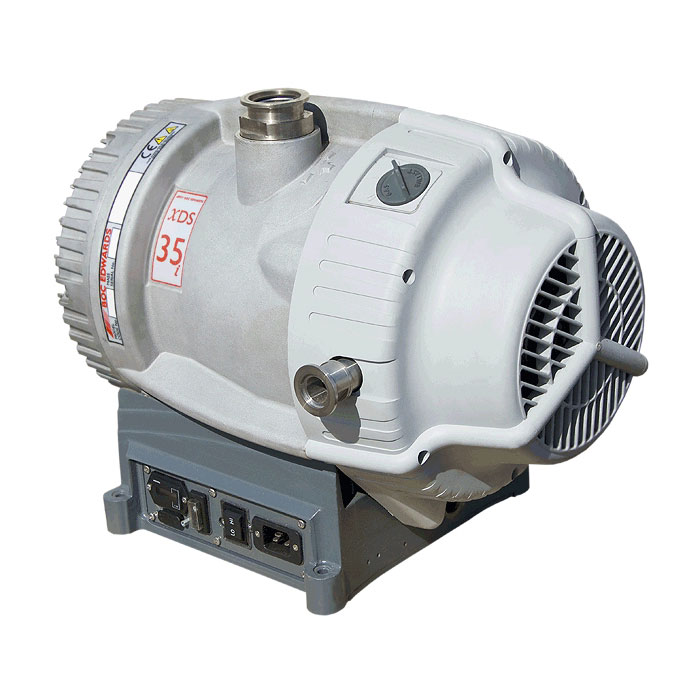

Edwards XDS35i Dry Scroll Vacuum Pump - REBUILT

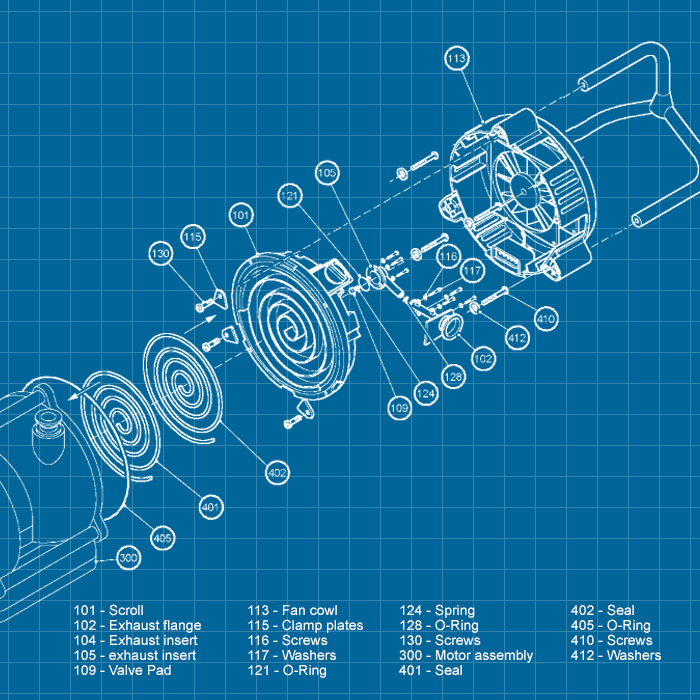

Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement 50 or 60 Hz | 43 m3h-1 / 25 ft3min-1 |
| Peak pumping speed 50 or 60 Hz | 35 m3h-1 / 21 ft3min-1 |
| Ultimate vacuum (Total pressure) | 1 x 10-2 mbar / 8 x 10-3 Torr |
| Max inlet pressure for water vapour | 35 mbar / 23 Torr |
| Max water vapour pumping rate – GB I | 70 gh-1 |
| Max water vapour pumping rate – GB II | 240 gh-1 |
| Max allowed outlet pressure | 0.2 bar gauge / 2.9 psig* |
| Max allowed inlet and GB pressure | 0.5 bar gauge / 7 psig |
| Motor power | 0.52kW |
| Power connector | IEC EN60320 C19 |
| Nominal rotation speed | 1,750 rpm |
| Weight | 48 kg / 105 lb |
| Inlet flange | NW40 |
| Exhaust flange | NW25 |
| Noise level | 57 dB(A) |
| Vibration | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1 x 10-6 mbar l/s |
| Operating temperature range | 10 to 40°C / 50 to 104°F |
* 1 bar gauge / 14 psig for short period of time only.
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards XDS35i - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL XDS35i Dry Scroll Vacuum Pump - REBUILT CODE No. A730-01-983 / A73001983 XDS35i 100-120V/200-230V 50/60Hz set to 230V single-phase CODE No. A730-05-983 / A73005983 XDS35i NGB 100-120V/200-230V 50/60Hz set to 230V 1-phase CODE No. A730-06-983 / A73006983 XDS35iC 100-120V/200-230V 50/60Hz set to 230V 1-phase
