Edwards XDS35i - NEW
Starting at
$16,583
In stock
Only %1 left
SKU
NEW_XDS35i
| Weight | 105 lbs |
|---|---|
| Motor Power | 0.7 hp |
| Pumping Speed | 43 m3h-1 |
| Ultimate Pressure | 0.008 torr |

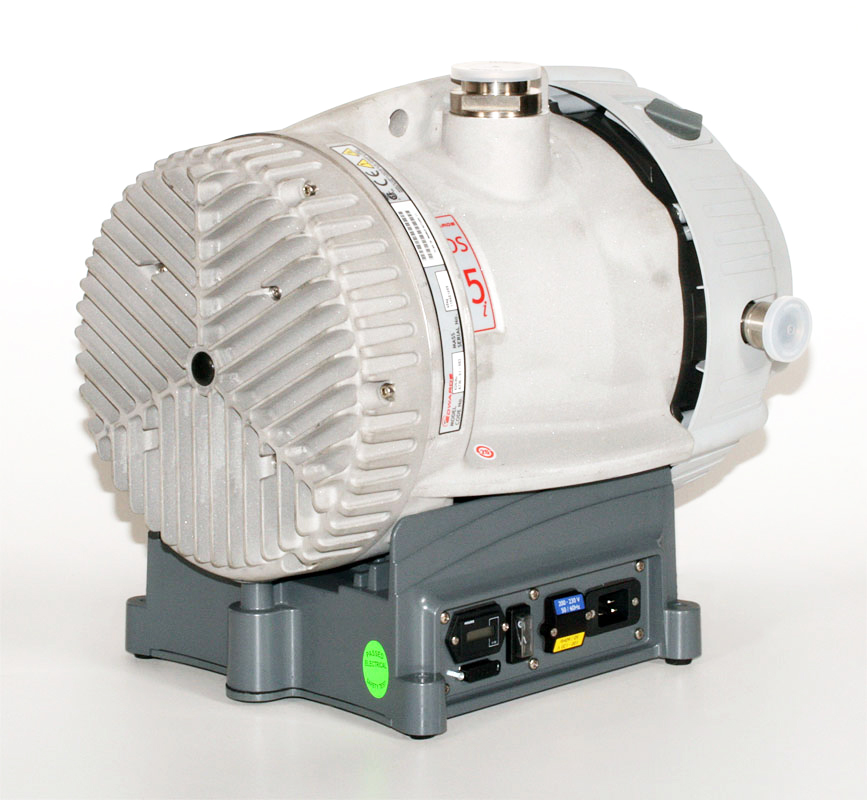

Edwards XDS35i Dry Scroll Vacuum Pump - NEW
The XDS35i pump has an innovative bearing shield design that isolates the vacuum environment from all forms of lubricant, not only making it totally dry but hermetically sealed. The shield also protects the bearing from any process vapours. Gas ballast allows vapour to be handled and opens up the range of applications to many that were previously unsuited to scroll pumps. The inverter drive controls the motor characteristics and ensures the pump always runs at optimum speed.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement 50 or 60 Hz | 43 m3h-1 / 25 ft3min-1 |
| Peak pumping speed 50 or 60 Hz | 35 m3h-1 / 21 ft3min-1 |
| Ultimate vacuum (Total pressure) | 1 x 10-2 mbar / 8 x 10-3 Torr |
| Max inlet pressure for water vapour | 35 mbar / 23 Torr |
| Max water vapour pumping rate – GB I | 70 gh-1 |
| Max water vapour pumping rate – GB II | 240 gh-1 |
| Max allowed outlet pressure | 0.2 bar gauge / 2.9 psig* |
| Max allowed inlet and GB pressure | 0.5 bar gauge / 7 psig |
| Motor power | 0.52kW |
| Power connector | IEC EN60320 C19 |
| Nominal rotation speed | 1,750 rpm |
| Weight | 48 kg / 105 lb |
| Inlet flange | NW40 |
| Exhaust flange | NW25 |
| Noise level | 57 dB(A) |
| Vibration | < 4.5 mms-1 (rms) |
| Leak tightness (static) | < 1 x 10-6 mbar l/s |
| Operating temperature range | 10 to 40°C / 50 to 104°F |
- 1 bar gauge / 14 psig for short period of time only.
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards XDS35i - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL XDS35i Dry Scroll Vacuum Pump - NEW CODE No. A730-01-983 / A73001983 XDS35i 100-120V 200-230V 50/60Hz set to 230V single-phase CODE No. A730-05-983 / A73005983 XDS35i NGB 100-120V 200-230V 50/60Hz set to 230V 1-phase CODE No. A730-06-983 / A73006983 XDS35iC 100-120V 200-230V 50/60Hz set to 230V 1-phase
