Edwards XDS5 - REBUILT
Weight
51 lbs
Motor Power
0.4 hp
Pumping Speed
4.8 m3 /h
Ultimate Pressure
< 7 x 10-2 mbar
Edwards XDS5 / C Dry Scroll Vacuum Pump - REBUILT

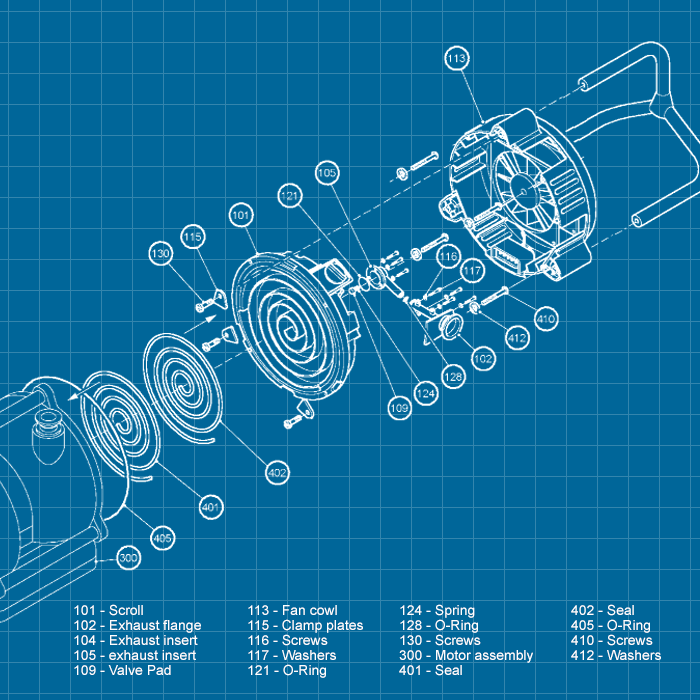

Rebuilt Edwards scroll pumps have been completely disassembled, cleaned and carefully inspected for wear. The pumps are assembled with new tip seals, shaft seals and bearings and then undergo an extended performance test. Certified technicians perform a quality assurance inspection prior to shipping.
Questions? send an email to our sales team!
Displacement
50 Hz: 5.7 m3 h-1 / 3.4 ft3 min-1 3 h-1 / 4.0 ft3 min-1
Peak pumping speed1
50 Hz: 4.8 m3 h-1 / 2.8 ft3 min-1 3 h-1 / 3.5 ft3 min-1
Ultimate vacuum (Total pressure)
50 Hz: 7 x 10-2 mbar / 5.3 x 10-2 Torr-2 mbar / 4.5 x 10-2 Torr
Max inlet pressure for water vapor
50 mbar / 38 Torr
Max water vapor pumping rate - GB I
70 gh-1
Max water vapor pumping rate - GB II
200 gh-1
Max allowed outlet pressure
0.2 bar gauge / 2.9 psig*
Max allowed inlet & gas ballast pressure
0.5 bar gauge / 7 psig
Motor power 1-phase & 3-phase
0.3 kW
Power connector 1-phase
IEC EN60320 C13
Nominal rotation speed 50/60 Hz
1,500 / 1,800 rpm
Recommended fuse
10A, 250 VAC rms
Weight
23 kg / 51 lb
Inlet flange
NW25
Exhaust flange
NW25
Noise level
55 dB(A) @ 50 Hz
Vibration at inlet flange
< 4.5 mms-1 (rms)
Leak tightness (static)
< 1 x 10-6 mbar l/s
Operating temperature range
10 to 40°C / 50 to 104°F
1 Pumping speed measured to PNEUROP 6602
* 1 bar gauge / 14 psig for short period of time only
Specifications
Type
Label
Description
Download
BOC Edwards XDS 5 & 10 Series - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
BOC Edwards MODEL XDS5 / C Dry Scroll Vacuum Pump - REBUILT
