Kinney KMBD-2000 - REBUILT
Call for Price
| Weight | 745 lbs |
|---|---|
| Motor Power | 10 hp |
| Pumping Speed | 2,000 cfm |

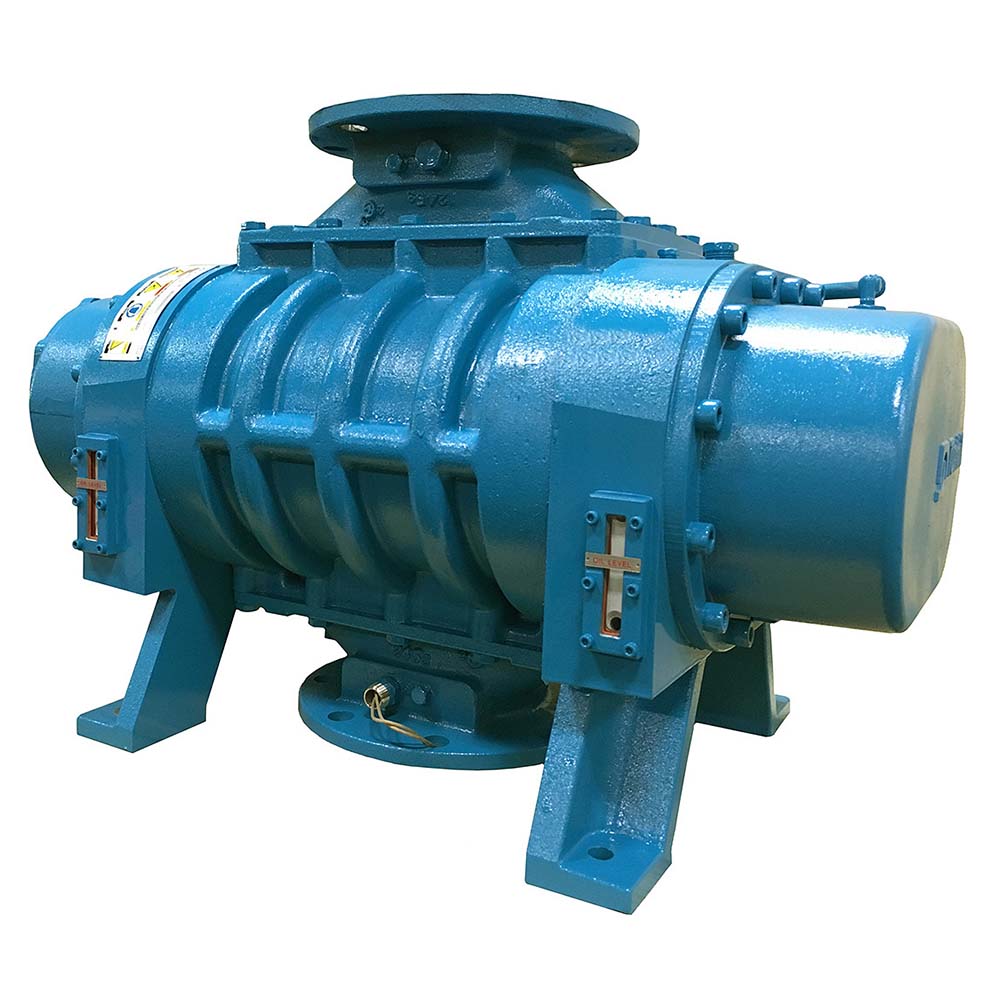

Kinney KMBD-2000 (MB2000) Mechanical Vacuum Blower - REBUILT
Bareshaft blowers, no motor.
Kinney KMBD mechanical boosters are available in flow ranges from 400 - 12,700 cfm with mechanical noise of 82 dB(A) or less.
The Kinney KMBD-2000 is a powerful and reliable mechanical vacuum booster designed to optimize the performance of vacuum systems in heavy-duty industrial applications. Manufactured by Tuthill Vacuum & Blower Systems, this booster is engineered to deliver high pumping speeds and achieve lower ultimate pressures, making it an excellent choice for industries such as chemical processing, vacuum metallurgy, pharmaceutical manufacturing, and semiconductor production.
Key Features:
- Exceptional Pumping Speed: The KMBD-2000 significantly enhances the throughput of primary vacuum pumps, enabling faster processing and improved system efficiency.
- Durable Construction: Built with a cast iron housing, end plates, and ductile iron rotors, the KMBD-2000 is designed to withstand the rigors of demanding industrial environments.
- Low Noise Operation: Operates at 82 dB(A) or less at blank-off, ensuring a quieter and safer working environment.
- Precision Engineering: Features heat-treated alloy steel, helical-cut gears, and precision-ground components for smooth and efficient operation.
- Oil Splash Lubrication System: Provides consistent lubrication to internal components, reducing wear and extending service life.
- Individually Tested: Each KMBD-2000 unit undergoes rigorous testing, including blank-off and heat run tests, to meet ISO 9001 quality standards.
The KMBD-2000 is ideal for a variety of industrial applications, including:
- Vacuum distillation
- Vacuum drying
- Freeze-drying
- Semiconductor manufacturing
- Thin-film coating
- Degassing processes
- Vacuum metallurgy
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
- Material: Cast iron housing and end plates, ductile iron rotors, and SAE 4140 forged alloy steel drive shaft.
- Bearings: Double-row ball bearings on the gear end and single-row ball bearings on the drive shaft.
- Seals: Non-contacting slinger rotor shaft seals with optional mechanical seals available.
- Lubrication: Oil splash system for both ends.
- Noise Level: ≤82 dB(A) at blank-off.
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KMBD Series - REBUILT | Installation Operational Maintenance Repair Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Tuthill Kinney KMBD-2000 Mechanical Vacuum Blower - REBUILT KMBD-200 200 cfm KMBD-400 400 cfm KMBD-540 540 cfm KMBD-720 720 cfm KMBD-850 850 cfm KMBD-1600 1,600 cfm KMBD-2000 2,000 cfm
