Kinney KMBD-850 - REBUILT
Call for Price
| Weight | 320 lbs |
|---|---|
| Pumping Speed | 800 cfm |

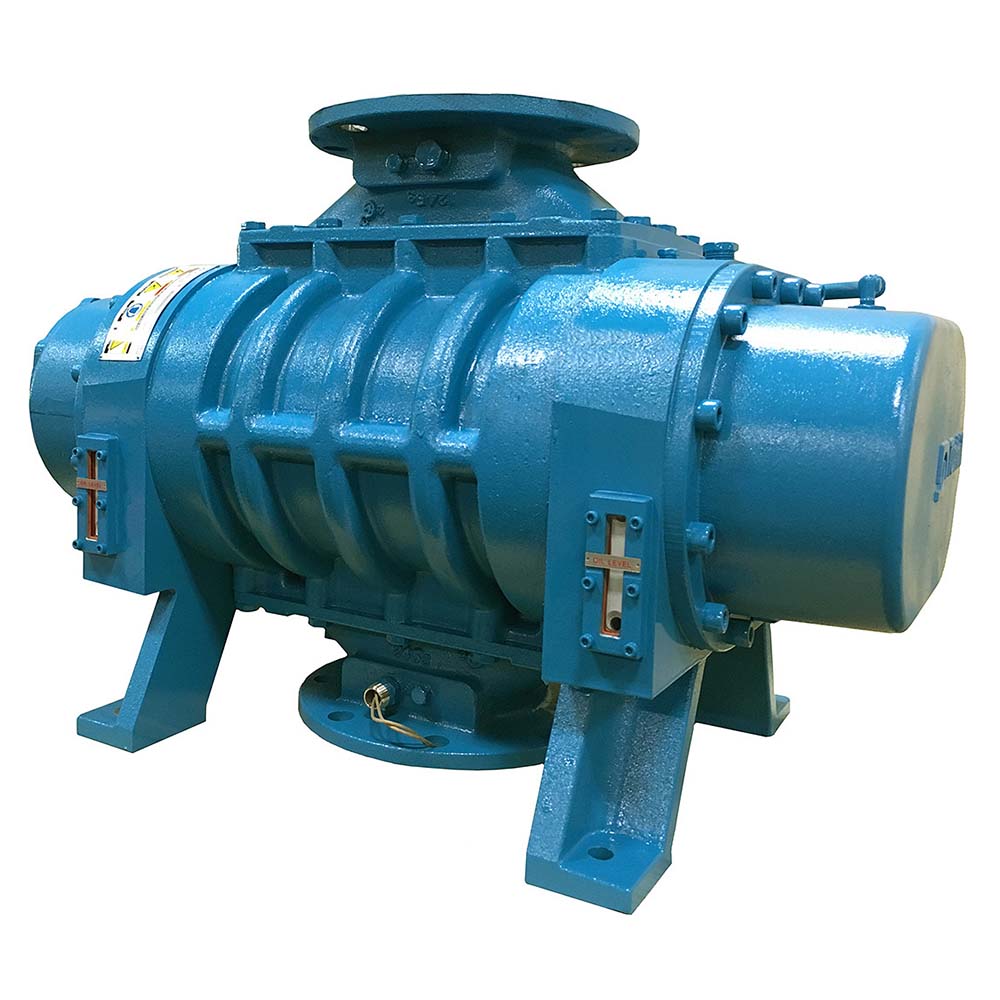

Kinney KMBD-850 Mechanical Vacuum Blower - REBUILT
Kinney KMBD mechanical boosters are available in flow ranges from 400 - 12,700 cfm with mechanical noise of 82 dB(A) or less.
The Kinney KMBD-850 is a high-performance mechanical vacuum booster designed to enhance the efficiency of vacuum systems in demanding industrial applications. Manufactured by Tuthill Vacuum & Blower Systems, this booster is built to exacting standards, ensuring reliable and long-lasting operation. It is ideal for processes requiring high pumping speeds and low ultimate pressures, making it a versatile solution for a wide range of industries, including chemical processing, pharmaceutical manufacturing, and vacuum coating.
Key Features:
- High Pumping Speed: The KMBD-850 delivers exceptional performance, significantly increasing the throughput of primary vacuum pumps.
- Durable Construction: Built with a cast iron housing, end plates, and rotors made of ductile iron, the KMBD-850 is engineered for durability and resistance to wear and corrosion.
- Low Noise Operation: Designed to operate at 82 dB(A) or less at blank-off, ensuring a quieter working environment.
- Precision Engineering: Equipped with heat-treated alloy steel, helical-cut gears, and precision-ground components for smooth and efficient operation.
- Oil Splash Lubrication System: Ensures consistent lubrication of internal components, reducing maintenance requirements and extending service life.
- Individually Tested: Each KMBD-850 unit undergoes rigorous testing, including blank-off and heat run tests, to meet ISO 9001 quality standards.
The KMBD-850 is suitable for a variety of industrial applications, including:
- Vacuum distillation
- Freeze-drying
- Vacuum drying
- Degassing
- Semiconductor manufacturing
- Thin-film coating
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
- Material: Cast iron housing and end plates, ductile iron rotors, and SAE 4140 forged alloy steel drive shaft.
- Bearings: Double-row ball bearings on the gear end and single-row ball bearings on the drive shaft.
- Seals: Non-contacting slinger rotor shaft seals with optional mechanical seals available.
- Lubrication: Oil splash system for both ends.
- Noise Level: ≤82 dB(A) at blank-off.
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KMBD Series - REBUILT | Installation Operational Maintenance Repair Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Tuthill Kinney KMBD-850 Mechanical Vacuum Blower - REBUILT 850-GAL2CVC00-B 850-F2L4CVS00WA KMBD-200 200 cfm KMBD-400 400 cfm KMBD-540 540 cfm KMBD-720 720 cfm KMBD-850 850 cfm KMBD-1600 1,600 cfm KMBD-2000 2,000 cfm
