Kinney KT-150C - REBUILT
Call for Price
| Weight | 800 lbs |
|---|---|
| Motor Power | 7.5 hp |
| Pumping Speed | 150 cfm |
| Ultimate Pressure | 0.010 Torr |

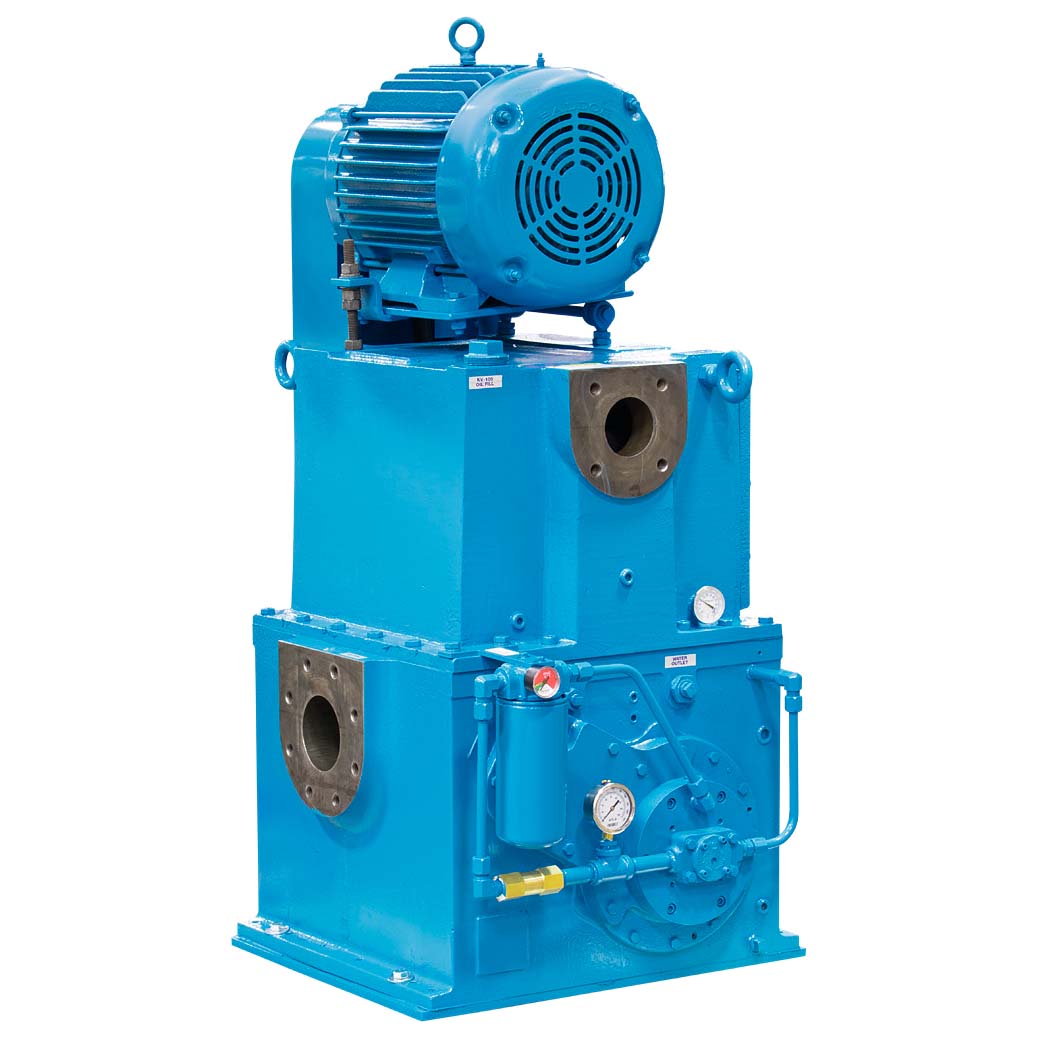

Kinney KT-150C Rotary Piston Vacuum Pump - REBUILT
The KT-150C pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
Features
- Full pumping speed down to 1.33 Pa
- Operate continuously at any pressure up to 1.3 x 104 Pa
- Ultimate pressure 1.33 Pa (McLeod gauge)
- No metal-to-metal contact in pumping chamber
- Adjustable gas ballast permits handling of condensable vapors
- Durability even in dirty applications
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 150 cfm (255 m3/h) |
| Motor power | 7.5 hp |
| Rotation speed | 1,055 rpm |
| Oil capacity (total/refill) | 6 / 5 gal. (23 / 19 liters) |
| Cooling water at 60°F (16° C) | 2.10-4 mbar |
| Partial limit pressure | 1 gpm (4 l/min) |
| Cooling water inlet connection | 1/4" NPT |
| Suction connection | 3" 150 LB ANSI flanged |
| Discharge connection | 2" 150 LB ANSI flanged |
| Height w/o oil mist eliminator | 43 inches (1,092 mm) |
| Floor space required | 24 x 26 inches (609 x 660 mm) |
| Weight | 800 lbs (363 kg) |
| Ultimate pressure | 10 Microns |
| Noise level (typical at .1 Torr) | 71 dBA |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KT Series - REBUILT | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
