Kinney KT 300D - REBUILT
Call for Price
| Weight | 1,525 lbs |
|---|---|
| Motor Power | 15 hp |
| Pumping Speed | 300 cfm |
| Ultimate Pressure | 0.010 Torr |
Kinney KT-300D Rotary Piston Vacuum Pump - REBUILT
The KT-Series pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
Features
- Full pumping speed down to 1.33 Pa
- Operate continuously at any pressure up to 1.3 x 104 Pa
- Ultimate pressure 1.33 Pa (McLeod gauge)
- No metal-to-metal contact in pumping chamber
- Adjustable gas ballast permits handling of condensable vapors
- Durability even in dirty applications
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 300 cfm (510 m3/h) |
| Motor power | 15 hp |
| Rotation speed | 870 rpm |
| Oil capacity (total / refill) | 10 / 8.5 Gal (38 / 32 L) |
| Cooling water at 60°F | 1.5 GPM (6 l/min) |
| Cooling water inlet connection | 3/8" NPT |
| Suction connection | 4" 150 LB ANSI Flanged |
| Discharge connection | 3" 150 LB ANSI Flanged |
| Height w/o oil mist eliminator | 51 in (1,295 mm) |
| Floor space required | 27 x 34 in |
| Ult. pressure | 10 microns |
| Noise level | 72 dB(A) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KT Series - REBUILT | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Tuthill Kinney KT-300D Rotary Piston Vacuum Pump - REBUILT
-
Kinney KT 300D - NEWStarting at $34,800 -

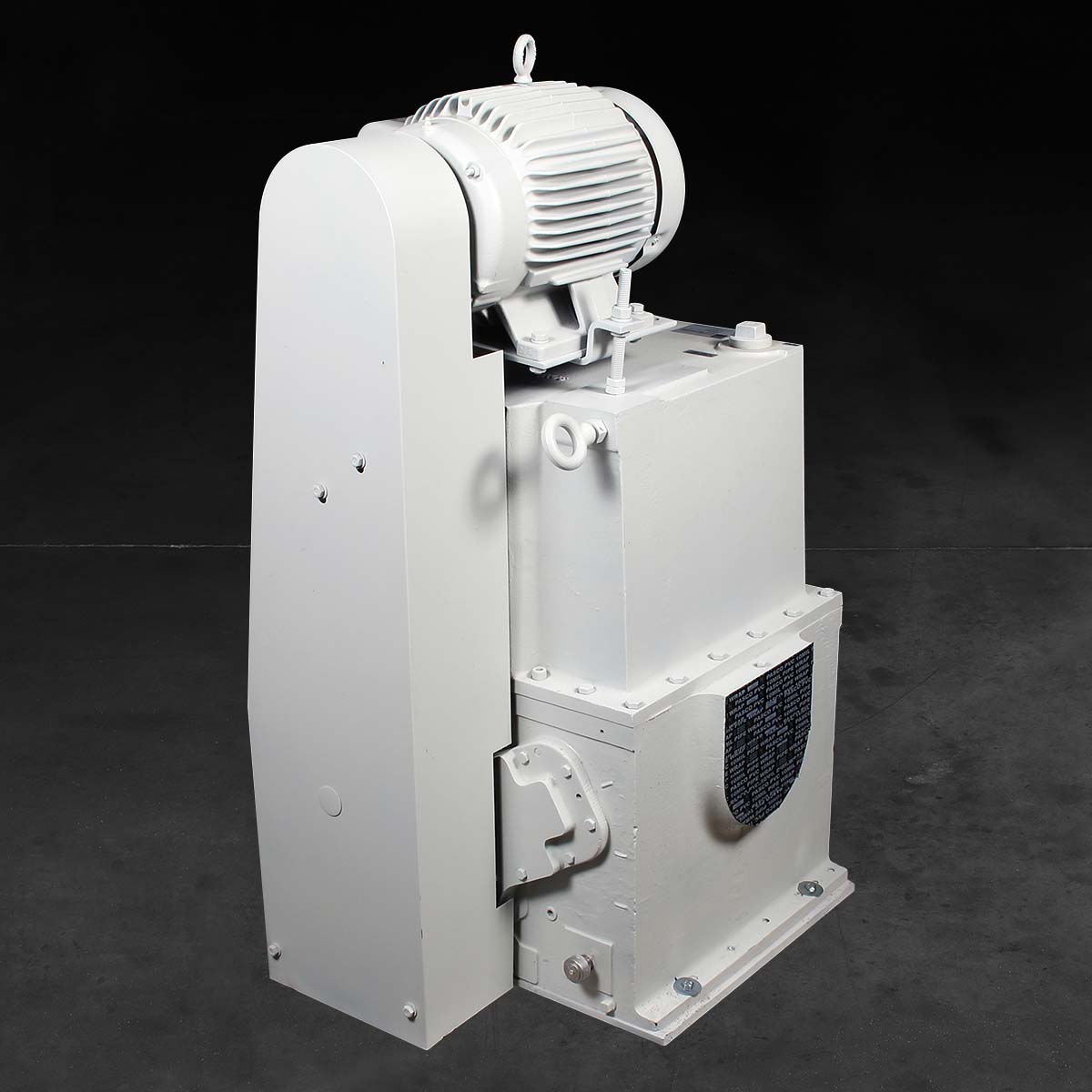

Kinney KT 500D - REBUILTCall for Price
-
