Kinney KT 300D - NEW
| Weight | 1,525 lbs |
|---|---|
| Motor Power | 15 hp |
| Pumping Speed | 300 cfm |
| Ultimate Pressure | 1.0 x 10-2 Torr |
Kinney KT 300D Rotary Piston Vacuum Pump - NEW
The KT-Series pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
Motor Power (hp): 15
Ultimate Pressure (Torr): 0.010
Pumping Speed (cfm): 300
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 300 cfm | 510 m3/h |
| Motor power | 15 hp | |
| Rotation speed | 870 rpm | |
| Oil capacity (total/refill) | 10/8.5 gal | 38/32 liters |
| Cooling water at 60°F (16°C) | 1.5 gpm | 6 l/min |
| Cooling water inlet connection | 3/8" NPT | |
| Suction connection | 4" 150 lb ANSI flanged | |
| Discharge connection | 3" 150 lb ANSI flanged | |
| Height w/o oil mist eliminator | 51 in | |
| Floor space required | 27 x 34 in | |
| Weight | 1,525 lbs | |
| Ultimate pressure | 1.0 × 10-2 Torr | |
| Noise level (typical at .1 torr) | 72 dBA |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KT Series - NEW | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Kinney KT 300D Rotary Piston Vacuum Pump - NEW KT300D-M4A0 TEFC 3/60/230-460 KT300D-M4E0 TEFC 3/60/575 KT300D-M4D0 TEFC 3/50/220-380-440 KT300D-M7H0 Class 1 Div 1 Group C&D 3/60/230-460 KT300D-M7M0 Class 1 Div 1 Group C&D 3/60/575
-
Kinney KT 500D - NEWStarting at $62,511 -

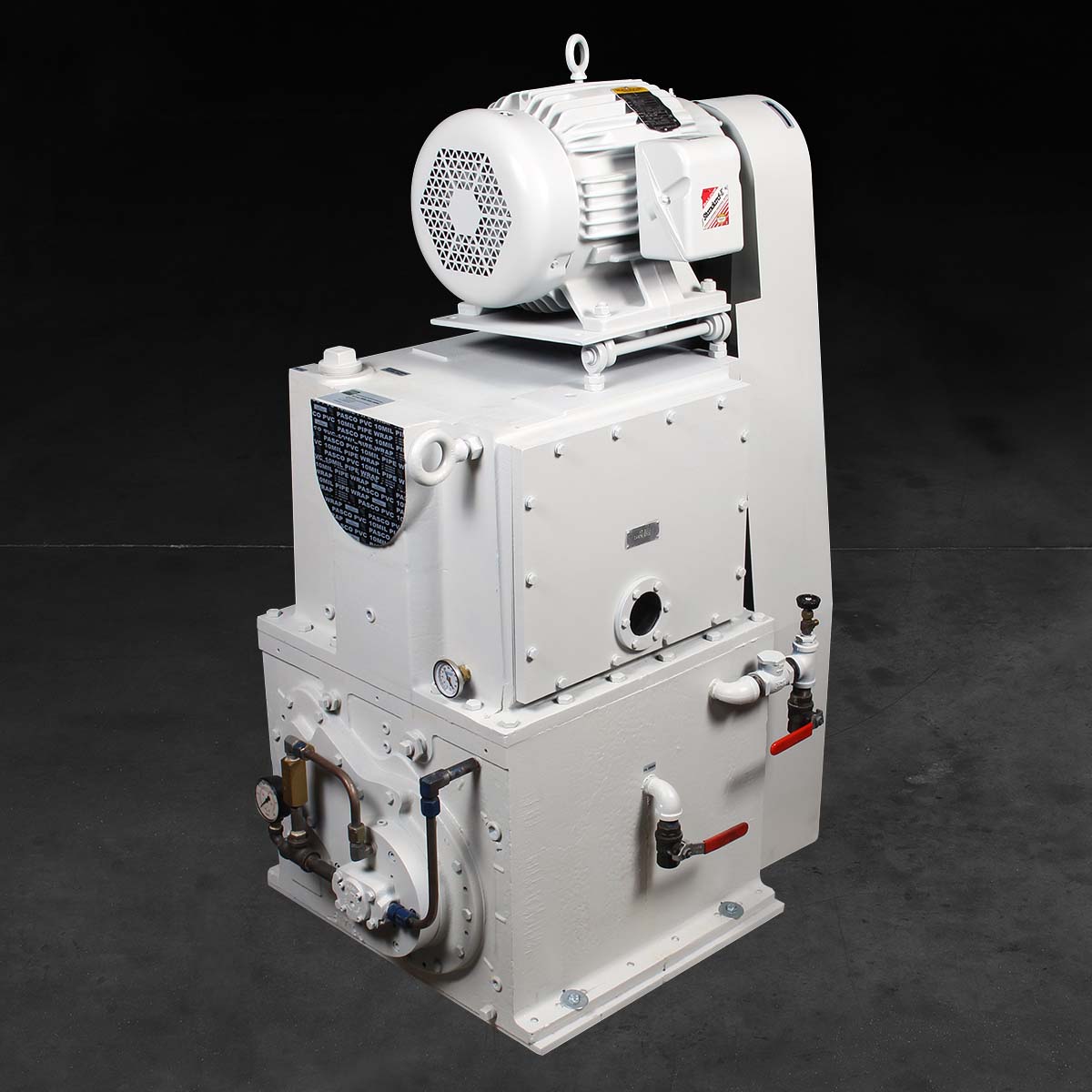

Kinney KT 300D - REBUILTCall for Price
-
