Kinney KT 500D - NEW
| Weight | 2625 lbs |
|---|---|
| Motor Power | 30 hp |
| Pumping Speed | 500 cfm |
| Ultimate Pressure | 1.0 x 10-2 Torr |
Kinney KT 500D Rotary Piston Vacuum Pump - NEW

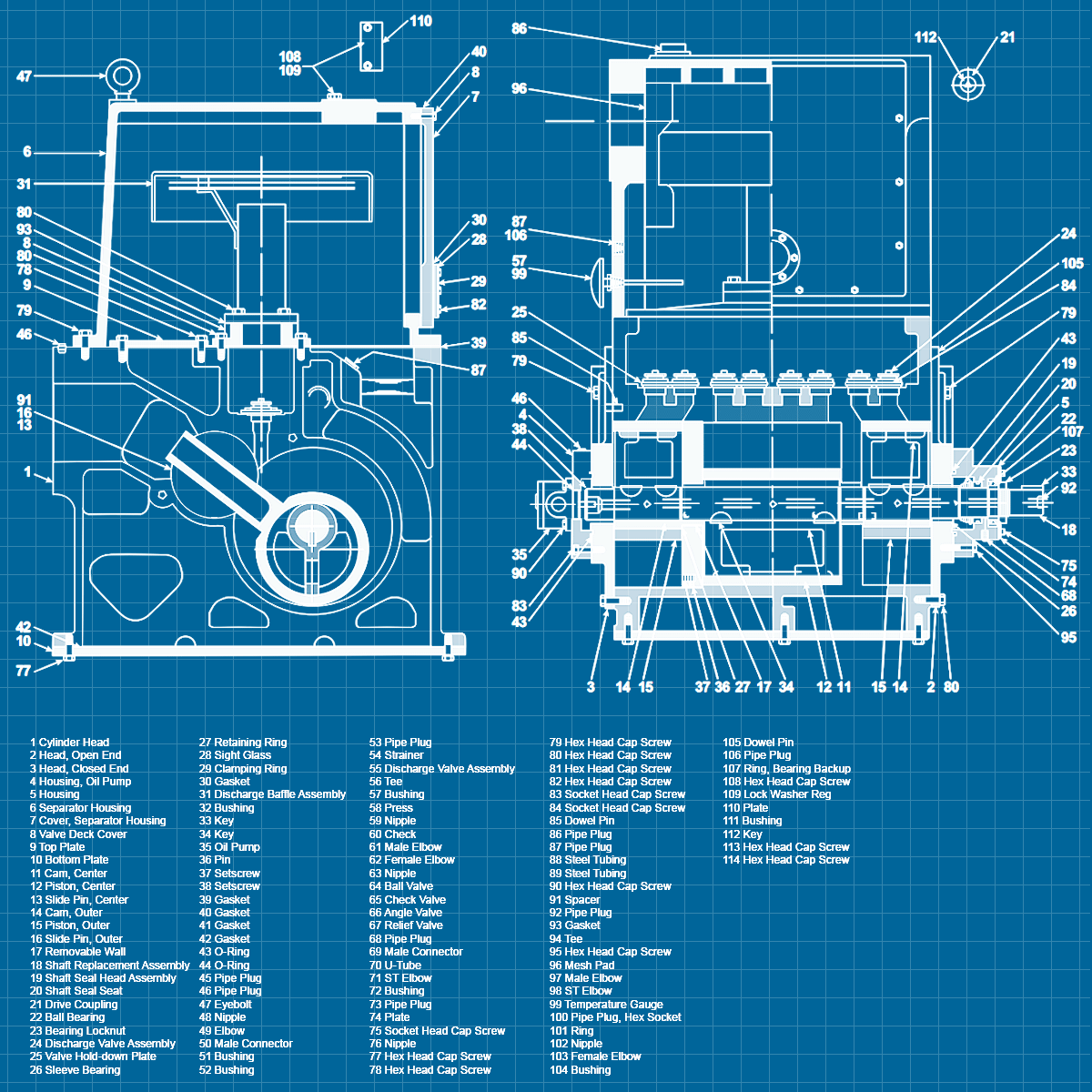

The KT-Series pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
Motor Power (hp): 30
Ultimate Pressure (Torr): 0.010
Pumping Speed (cfm): 490
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 500 cfm | 840 m3/h |
| Motor power | 30 hp | |
| Rotation speed | 721 rpm | |
| Oil capacity (total/refill) | 15/12.5 gal | 57/47 liters |
| Cooling water at 60°F (16°C) | 2.5 gpm | 9 l/min |
| Cooling water inlet connection | 3/8" NPT | |
| Suction connection | 6" 150 lb ANSI flanged | |
| Discharge connection | 4" 150 lb ANSI flanged | |
| Height w/o oil mist eliminator | 63 in | |
| Floor space required | 34 x 36 in | |
| Weight | 2,625 lbs | |
| Ultimate pressure | 1.0 × 10-2 Torr | |
| Noise level (typical at .1 Torr) | 73 dBA |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KT Series - NEW | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Kinney KT 500D Rotary Piston Vacuum Pump - NEW KT-150C 150 cfm / 255 m3/h KT-300D 300 cfm / 510 m3/h KT-500D 500 cfm / 850 m3/h KT-850D 778 cfm / 1,322 m3/h
