Kinney KT 850D - NEW
| Weight | 4,175 lbs |
|---|---|
| Motor Power | 40 hp |
| Pumping Speed | 780 cfm |
| Ultimate Pressure | 1.0 x 10-2 Torr |
Kinney KT850D Rotary Piston Vacuum Pump - NEW

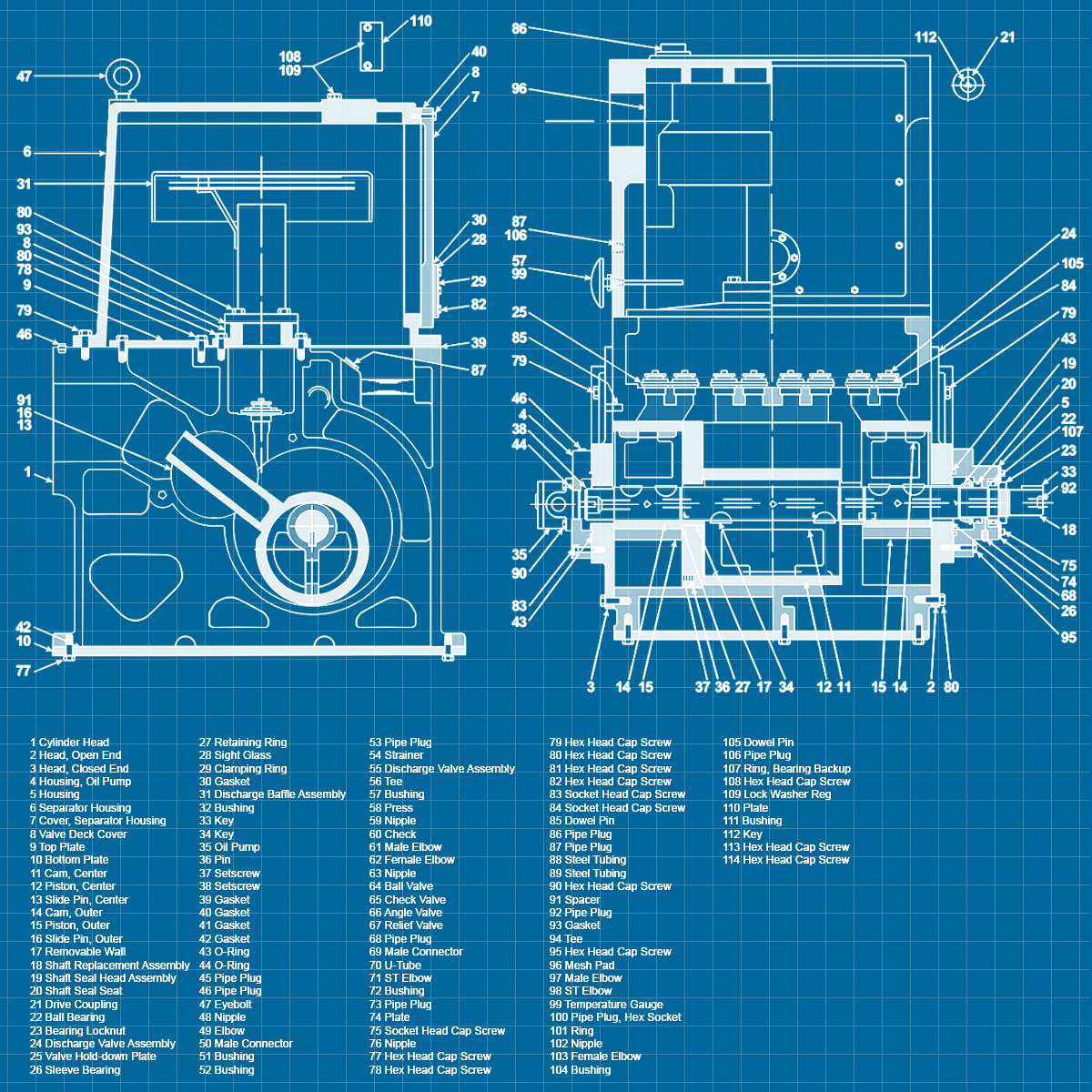

The KT-Series pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
Motor Power (hp): 40
Ultimate Pressure (Torr): 0.010
Pumping Speed (cfm): 780
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 778 cfm (1,325 m3/h) |
| Motor power | 40 hp |
| Rotation speed | 581 rpm |
| Oil capacity (total/refill) | 28/25 gal (106/95 liters) |
| Cooling water at 60°F (16°C) | 3.5 gpm (13 l/min) |
| Cooling water inlet connection | 3/8" NPT |
| Suction connection | 8" 150 lb ANSI flanged |
| Discharge connection | 5" 150 lb ANSI flanged |
| Height w/out oil mist eliminator | 71 in |
| Floor space required | 38 x 49 in |
| Weight | 4,175 lbs |
| Ultimate pressure | 1.0 × 10-2 Torr |
| Noise level (typical at .1 Torr) | 75 dBA |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KT Series - NEW | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Kinney KT-850D Rotary Piston Vacuum Pump - NEW 778 cfm / 1,322 m3/h KT850D-M4A0 KT-850 D COMP. TEFC 3/60/230-460 KT850D-S000 KT-850 D BARE SHAFT
