Kinney KTC-112 - REBUILT
Call for Price
| Weight | 880 lbs |
|---|---|
| Motor Power | 7.5 hp |
| Pumping Speed | 182 m3/h |
| Ultimate Pressure | 2 x 10-4 Torr |
Kinney KTC-112 Rotary Piston Vacuum Pump - REBUILT
The KT-Series pump has an oil circulating pump to provide adequate lubrication at all pressures including atmosphere. The vacuum pump has three cams and pistons pumping in parallel, driven by a common shaft. The cams are positioned on the shaft so as to dynamically balance moving parts to eliminate vibration. We also offer repair service backed by a one year warranty. Mist filters are sold separately.
KT SERIES PART NUMBER DESIGNATIONS
EXAMPLE: MODEL KT300D-M4A0
| Position # 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| K | T | 3 | 0 | 0 | D | - | M | 4 | A | 0 |
Positions 1-5: PUMP MODEL NUMBER
Position 6: PUMP REVISION LEVEL
Position 8: SCOPE OF SUPPLY
L = Pump Complete Less Motor
M = Pump Complete
Position 9: ENCLOSURE RATING
4 = Nema 4
7 = Nema 7
Position 10: POWER SUPPLY OPTIONS
| VOLTAGE | TEFC | XP |
| 3/60/200 | 9 | G |
| 3/60/230-460 | A | H |
| 3/50/190-380 | D | L |
| 3/60/575 | E | M |
Position 11: SERVICE OPTIONS
| 0 | Standard Construction | Viton |
| 2 | Phosphate (TAP) | Viton |
| 3 | Refrigeration (POE) | Buna |
| 4 | Mineral Oil | Buna |
| 5 | Hardened Internals (QPQ) | |
| 6 | Brake Fluid (Ucon) | EPR/EPDM |
| 7 | Ammonia Service (POE) | EPR; no Cu/Bronze |
| 8 | Customer Supplied Oil (O2) | |
| 9 | Radiator Filled | Buna |
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Free air displacement | 107 cfm |
| Pump speed | 1,055 rpm |
| Motor speed | 1,725 rpm |
| Total oil capacity | 4 gal |
| Cooling water @ 60°F | 1-1/2 gpm |
| Cooling water connections | 1/4 NPT |
| Suction, 150# ASA flange | 3 in |
| Discharge | 2 NPT in |
| Height | 43 in |
| Floor space | 26 x 21 in |
| Weight | 880 lbs |
| Ultimate pressure | 2 x 10-4 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KTC 60 - 112 - REBUILT | Installation Operation Maintenance Repair Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Tuthill Kinney KTC-112 Rotary Piston Vacuum Pump - REBUILT
-

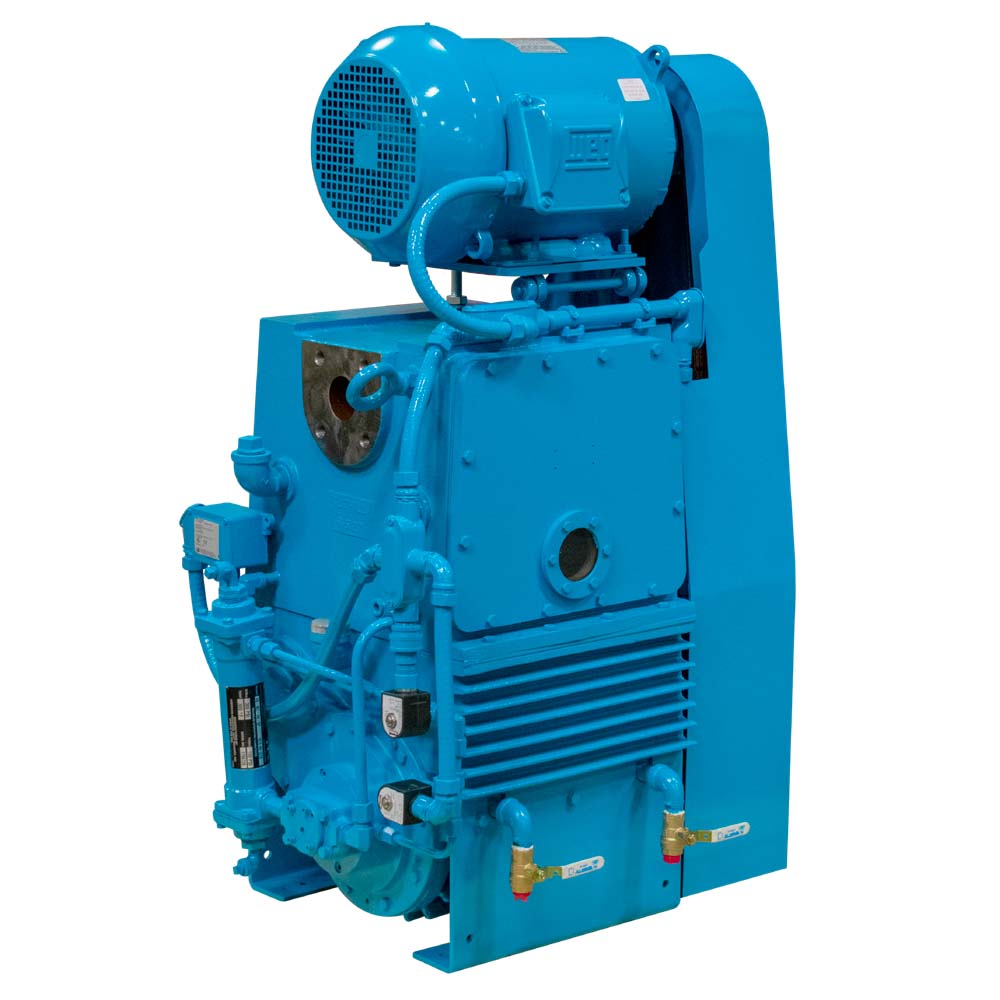

Kinney KTC 112 - NEWStarting at $27,246 -

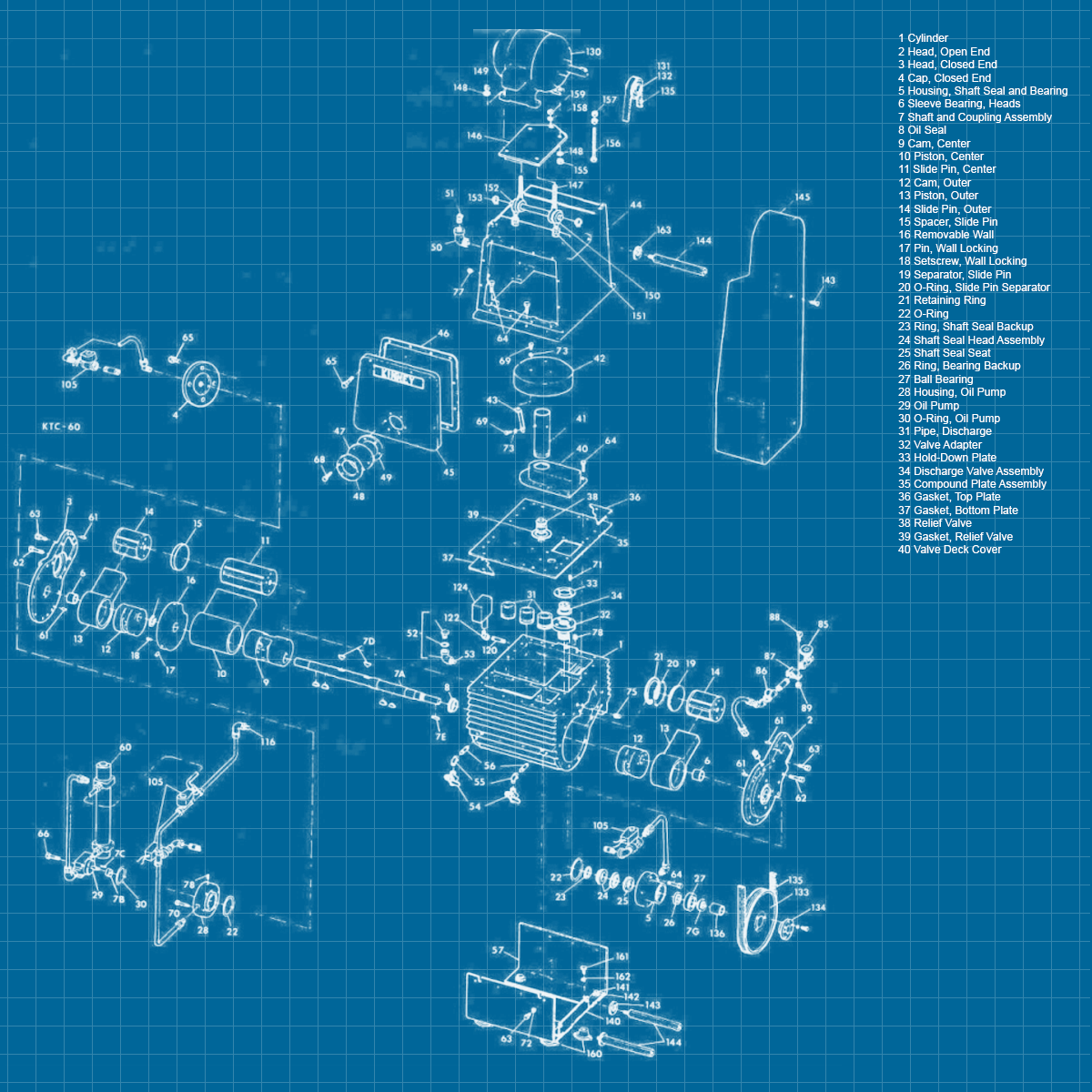

Kinney KTC 112 - SERVICECall for Price
