Kinney KTC 60 - NEW
| Weight | 515 lbs |
|---|---|
| Motor Power | 3 hp |
| Pumping Speed | 60 cfm |
| Ultimate Pressure | 2 x 10-4 Torr |

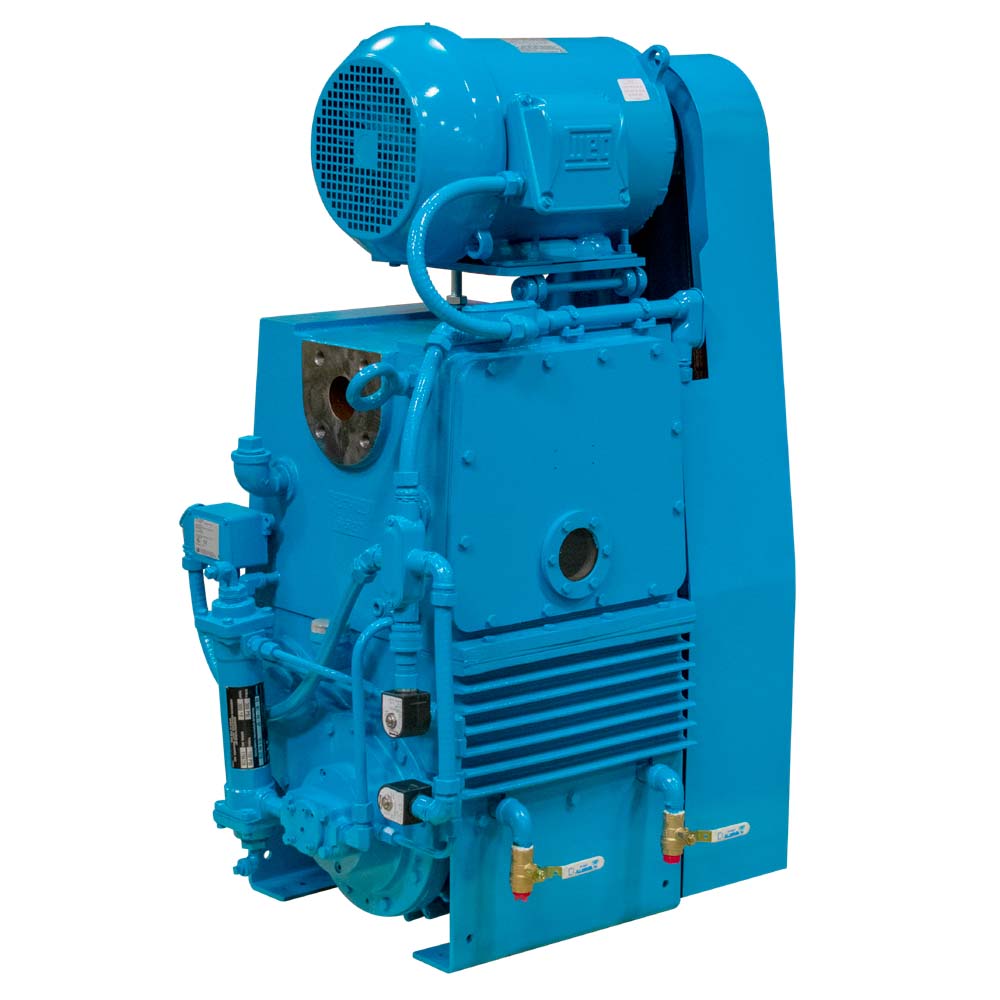

Kinney KTC 60 Rotary Piston Vacuum Pump - NEW
- Recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar)
- Achieve lowest possible pressures from mechanical pumps
- Rugged and reliable
- No metal-to-metal contact between pump piston & cylinder - clearances are filled with oil
- Unequaled durability, even in dirty applications
Motor Power (hp): 1.5
Ultimate Pressure (Torr): 0.0002
Pumping Speed (cfm): 21
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
|
|
UNIT |
MODEL |
||
|
KTC-21 |
KTC-60 |
KTC-112 |
||
|
Nominal Displacement at Rated RPM |
CFM / m³/h |
21 / 36 |
60 / 102 |
107 / 182 |
|
Motor |
HP / kW |
1.5 / 1.1 |
3 / 2.2 |
7.5 / 5.6 |
|
Motor Speed |
RPM |
1725 |
960 |
1060 |
|
Cooling Water Required |
GPM / L/min |
— |
— |
1.5 / 5.7 |
|
Oil Capacity |
Quarts / Liters |
2.0 / 1.9 |
8.0 / 7.6 |
16.0 / 15.1 |
|
Pump Weight |
Lbs. / kg |
190 / 86 |
515 / 234 |
880 / 399 |
|
Maximum Gas Ballast Flow |
% |
10 |
10 |
10 |
|
Gas Ballast Pressure |
Torr (mm Hg abs.) |
.020 |
.020 |
.020 |
|
Ultimate Pressure |
Torr |
2 × 10-4 |
2 × 10-4 |
2 × 10-4 |
|
Noise Level at 0.1 Torr |
dB(A) |
72 |
70 |
70 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KTC 60 & 112 - NEW | OPERATOR'S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Kinney KTC 60 Rotary Piston Vacuum Pump - NEW 60 cfm / 102 m3/h
