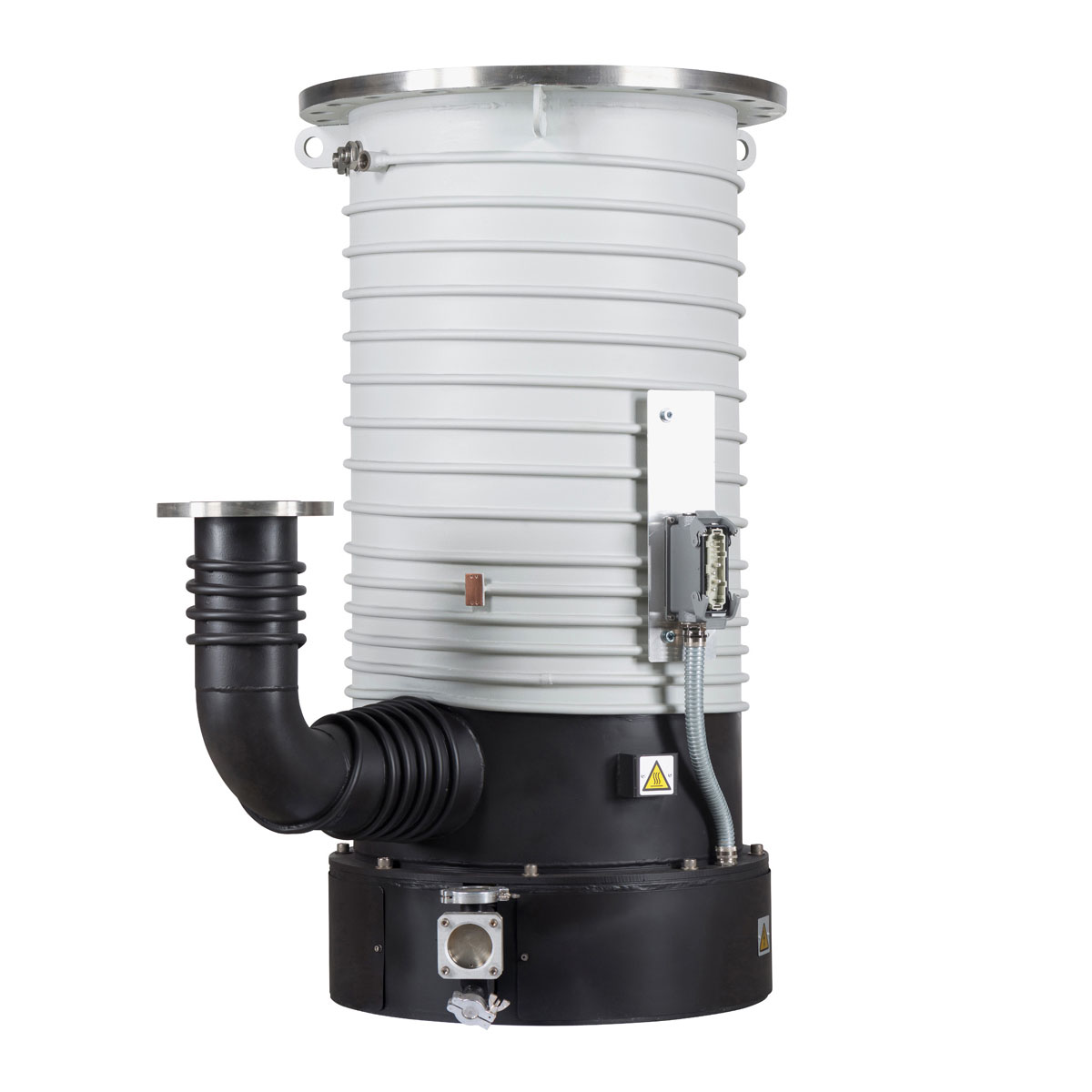

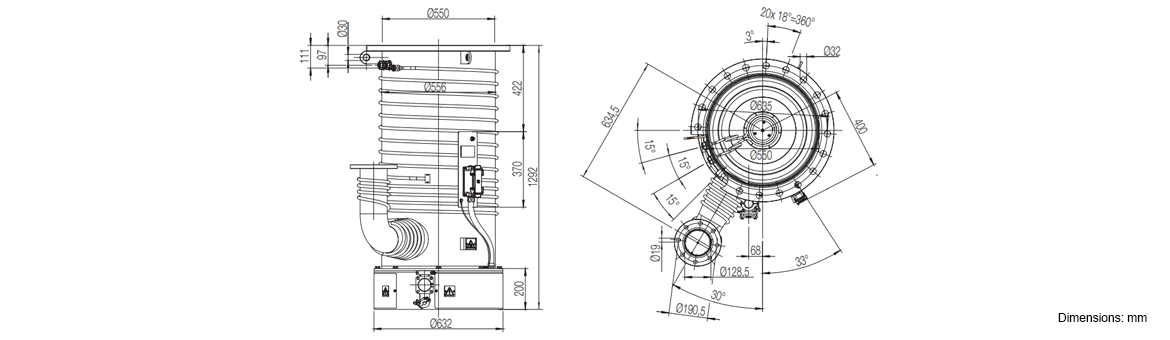

Leybold DIJ 20 - NEW

Call for Price

In stock
SKU
NEW_DIJ20
Weight 419 lbs
Pumping Speed 10800 l/s
Ultimate Pressure < 5 x 10-7 mbar

Leybold DIJ 20 High Vacuum Diffusion Pump - NEW

DIJ benefits at a glance

■ Most innovative heating concept utilizing newly developed heater cartridges with large heat exchange surface for an optimized energy transfer into the oil. Effective temperature monitoring protects the system against overheating. The insulated heater area ensures minimum energy losses.
+ Minimum stress and longest lifetime for heaters and oil
+ Highest uptime
+ Flanged heaters, easy to exchange

■ Choice of flange variants for improved connectivity
+ ANSI / Inch flanges (with O-ring)
+ ISO-F or ISO-K flanges (with centering ring)

■ Unique baffle design + Proven cold cap baffle at the inlet to minimize oil backstreaming
+ Innovative, new foreline baffle for reduced oil losses

■ Various electrical connection opportunities to meet customers requirements
+ Basic – simplified OEM connection with male plug
+ Standard – with circuit breaker box
+ ECO, with switchbox and energy control unit

■ Five stage system design provides excellent performance data
+ Four diffusion pump stages for highest suction speed at low pressures and lowest final pressure
+ One ejector stage for high forevacuum stability and stable throughput at pressures >10-3 mbar

Typical Applications

  • Vacuum coating
  • Metallurgy
  • Vacuum furnaces
  • Vacuum drying
  • Research and development

DIJ Oil Diffusion Pump Advantages

Prolonged maintenance intervals, non-wearing, high safety standard.

  • High and stable throughput at pressures >10-3 mbar
  • High forevacuum tolerance
  • High pumping speed
  • Safe and economical
  • CE compliant electronics supplied
  • No wear caused by moving parts
  • Simple to operate
  • Maintenance friendly design for rapid and simple replacement of heating elements
  • Wide range of accessories available
  • Innovative ECO Energy control unit (ROI

Power Efficiency Control -

Energy savings up to 30% without power loss

Oil diffusion pumps require a certain minimum oil temperature for operation. Commonly, 100% of the installed heating power is constantly utilized. The innovative Leybold power efficiency control unit for diffusion pumps cuts power consumption by up to 30% since the supplied power is significantly reduced after the pump has attained its operating temperature. Further savings result from the utilization of the standby mode at a reduced temperature.
Cost reductions through energy-savings (up to 30%)

  • Increased service life of oil and heating cartridges
  • Excellent operating convenience and simple use
  • Fast ROI (< 2 years)
  • Simple, visual monitoring of the parameters
  • PLC driven
  • USB Interface and Ethernet



Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Technical Data


  DIJ 10 DIJ 320 DIJ 16 DIJ 500 DIJ 20 DIJ 630 DIJ 35 DIJ 1000

High vacuum connection                   DN

10" ANSI

320 ISO-K

16"ANSI

500 ISO-K

20" ANSI

630 ISO-K

35" ANSI

1000 ISO-F

Forevacuum connection                    DN

2" ANSI

63 ISO-K

3"ANSI

100 ISO-K

4" ANSI

160 ISO-K

6" ANSI

200 ISO-K

Pumping speed 1) for

Nitrogen < 10-4 mbar



2 800



6 800



10 800



28 000

Working range                                mbar

< 10-2 to 10-7

< 10-2 to 10-7

< 10-2 to 10-7

< 10-2 to 10-7

Ultimate total pressure 2)                          mbar

< 5 x 10-7

< 5 x 10-7

< 5 x 10-7

< 5 x 10-7

Max permissible

forevacuum pressure                      mbar



5 x 10-1



5 x 10-1



5 x 10-1



5 x 10-1

Pump fluid fill, min / max                       l

1.0 / 1.4

1.7 / 3.4

5.0 / 7.0

9.0 / 11.0

Mains voltage                                        V

depending on variant, 50 / 60 Hz      V

1 ~ 230 /N/PE

1 ~ 230 /N/PE

3 ~ 400 /N/PE

3 ~ 460 /N/PE

3 ~ 400 /N/PE

3 ~ 460 /N/PE

3 ~ 400 /N/PE

3 ~ 460 /N/PE

Heating power                                    kW

2.4

3.6

10.8

21.6

Number of heating cartridges

2

3

9

18

Warm up period                                min

< 25

< 25

< 25

< 30

Coolant (minimum) 2)









for the pump                                   I/h

160

290

600

1 200

for the cold cap baffle                    I/h

20

50

80

150

Number of cooling circuits

(including cold cap baffle)



2



2



2



2

Coolant connection









for the pump                                    G

3/8"

1/2"

1/2"

1/2"

for the cold cap baffle                      G

1/4"

3/8"

3/8"

3/8"

Weight, approx                                    kg

45

110

208

720

Recom forevacuum pumps 3)

at working pressure > 10-4 mbar oil-sealed

dry-compressing

at working pressure < 10-4 mbar oil-sealed

dry-compressing





SV 100 B & W 501

-





SV 200 & W 501

DV 450 & W 501





SV 300 B & W 1001

DV 450 & W 1001





SV 630 B & W 2001

DV 650 & W 2001

D 25 B

ECODRY plus 60

D 65 B & W 251

ECODRY plus 60 & W 251

SV 100 B & W 501

-

SV 300 B & W 1001

DV 450 & W 1001

Recom supporting pump 3)

TRIVAC D 25 B

TRIVAC D 40 B

TRIVAC D 65 B

TRIVAC D 65 B

  • Measured as per DIN 28 427 using DC 704 normal as the pump
  • The coolant water volume is referenced to ∆T = 10 K. The discharge temperature should not exceed 30 °C.
  • Single- and two-stage rotary vane pumps (TRIVAC; SOGEVAC)

Specs

Type Label Description Download
Leybold DIJ & DIP Series - NEW Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold DIJ 20 High Vacuum Diffusion Pump - NEW
