Leybold DIJ 630 - NEW
Call for Price
| Weight | 480.5 lbs |
|---|---|
| Pumping Speed | 10800 l/s |
| Ultimate Pressure | < 5 x 10-7 mbar |

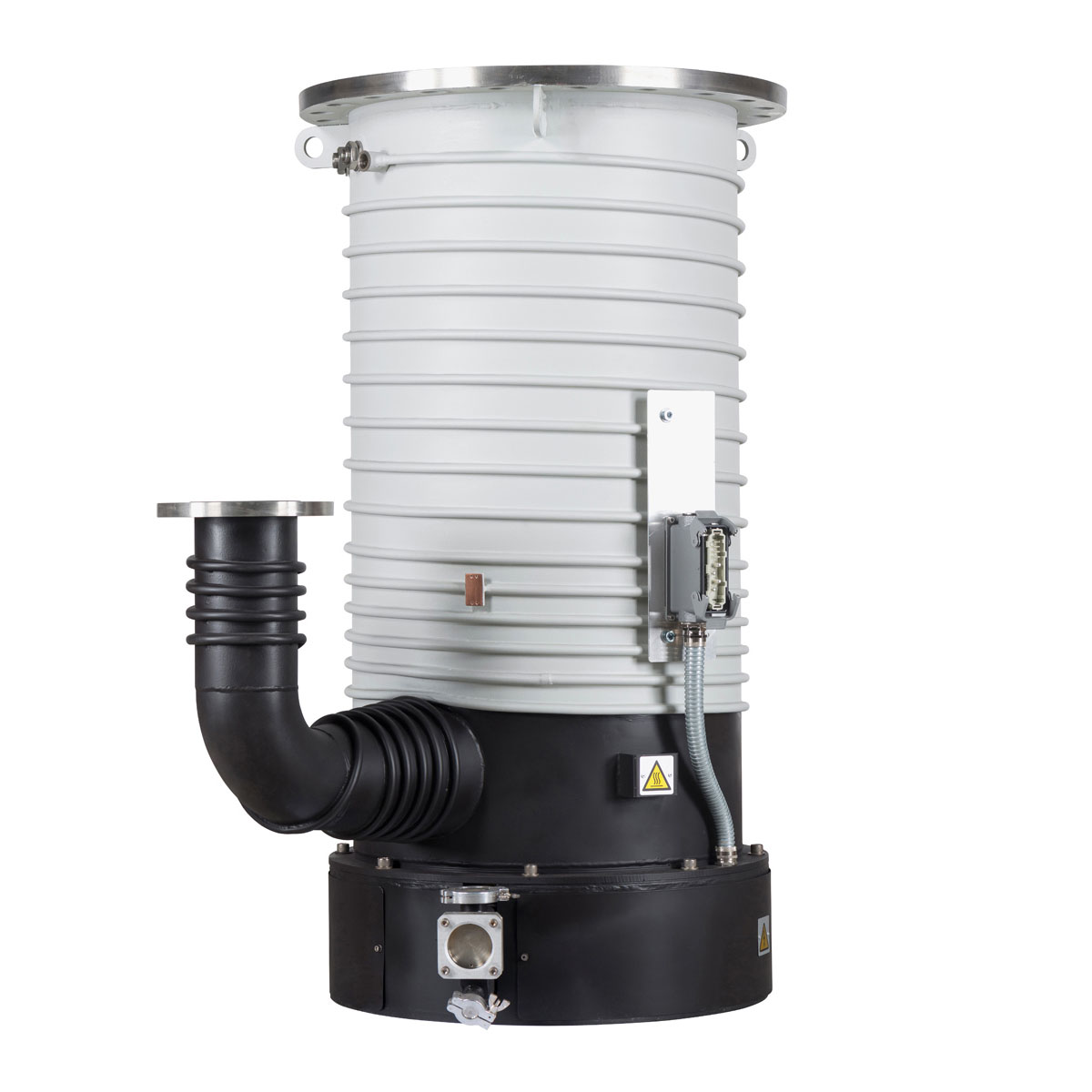

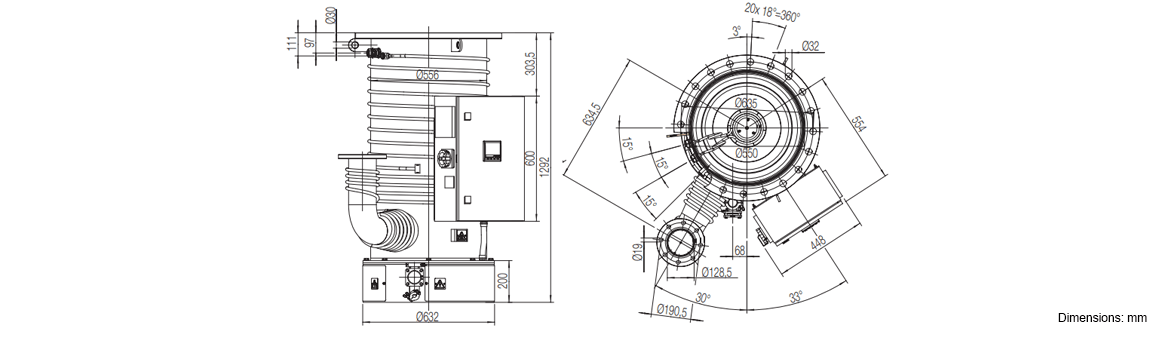

Leybold DIJ 630 High Vacuum Diffusion Pump - NEW
DIJ benefits at a glance
■ Most innovative heating concept utilizing newly developed heater cartridges with large heat exchange surface for an optimized energy transfer into the oil. Effective temperature monitoring protects the system against overheating. The insulated heater area ensures minimum energy losses.
+ Minimum stress and longest lifetime for heaters and oil
+ Highest uptime
+ Flanged heaters, easy to exchange
■ Choice of flange variants for improved connectivity
+ ANSI / Inch flanges (with O-ring)
+ ISO-F or ISO-K flanges (with centering ring)
■ Unique baffle design + Proven cold cap baffle at the inlet to minimize oil backstreaming
+ Innovative, new foreline baffle for reduced oil losses
■ Various electrical connection opportunities to meet customers requirements
+ Basic – simplified OEM connection with male plug
+ Standard – with circuit breaker box
+ ECO, with switchbox and energy control unit
■ Five stage system design provides excellent performance data
+ Four diffusion pump stages for highest suction speed at low pressures and lowest final pressure
+ One ejector stage for high forevacuum stability and stable throughput at pressures >10-3 mbar
Typical Applications
- Vacuum coating
- Metallurgy
- Vacuum furnaces
- Vacuum drying
- Research and development
DIJ Oil Diffusion Pump Advantages
Prolonged maintenance intervals, non-wearing, high safety standard.
- High and stable throughput at pressures >10-3 mbar
- High forevacuum tolerance
- High pumping speed
- Safe and economical
- CE compliant electronics supplied
- No wear caused by moving parts
- Simple to operate
- Maintenance friendly design for rapid and simple replacement of heating elements
- Wide range of accessories available
- Innovative ECO Energy control unit (ROI
Power Efficiency Control -
Energy savings up to 30% without power loss
Oil diffusion pumps require a certain minimum oil temperature for operation. Commonly, 100% of the installed heating power is constantly utilized. The innovative Leybold power efficiency control unit for diffusion pumps cuts power consumption by up to 30% since the supplied power is significantly reduced after the pump has attained its operating temperature. Further savings result from the utilization of the standby mode at a reduced temperature.
Cost reductions through energy-savings (up to 30%)
- Increased service life of oil and heating cartridges
- Excellent operating convenience and simple use
- Fast ROI (< 2 years)
- Simple, visual monitoring of the parameters
- PLC driven
- USB Interface and Ethernet
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Technical Data
| DIJ 10 | DIJ 320 | DIJ 16 | DIJ 500 | DIJ 20 | DIJ 630 | DIJ 35 | DIJ 1000 | |
|
High vacuum connection DN |
10" ANSI |
320 ISO-K |
16"ANSI |
500 ISO-K |
20" ANSI |
630 ISO-K |
35" ANSI |
1000 ISO-F |
|
Forevacuum connection DN |
2" ANSI |
63 ISO-K |
3"ANSI |
100 ISO-K |
4" ANSI |
160 ISO-K |
6" ANSI |
200 ISO-K |
|
Pumping speed 1) for Nitrogen < 10-4 mbar |
2 800 |
6 800 |
10 800 |
28 000 |
||||
|
Working range mbar |
< 10-2 to 10-7 |
< 10-2 to 10-7 |
< 10-2 to 10-7 |
< 10-2 to 10-7 |
||||
|
Ultimate total pressure 2) mbar |
< 5 x 10-7 |
< 5 x 10-7 |
< 5 x 10-7 |
< 5 x 10-7 |
||||
|
Max permissible forevacuum pressure mbar |
5 x 10-1 |
5 x 10-1 |
5 x 10-1 |
5 x 10-1 |
||||
|
Pump fluid fill, min / max l |
1.0 / 1.4 |
1.7 / 3.4 |
5.0 / 7.0 |
9.0 / 11.0 |
||||
|
Mains voltage V depending on variant, 50 / 60 Hz V |
1 ~ 230 /N/PE 1 ~ 230 /N/PE |
3 ~ 400 /N/PE 3 ~ 460 /N/PE |
3 ~ 400 /N/PE 3 ~ 460 /N/PE |
3 ~ 400 /N/PE 3 ~ 460 /N/PE |
||||
|
Heating power kW |
2.4 |
3.6 |
10.8 |
21.6 |
||||
|
Number of heating cartridges |
2 |
3 |
9 |
18 |
||||
|
Warm up period min |
< 25 |
< 25 |
< 25 |
< 30 |
||||
|
Coolant (minimum) 2) |
|
|
|
|
||||
|
for the pump I/h |
160 |
290 |
600 |
1 200 |
||||
|
for the cold cap baffle I/h |
20 |
50 |
80 |
150 |
||||
|
Number of cooling circuits (including cold cap baffle) |
2 |
2 |
2 |
2 |
||||
|
Coolant connection |
|
|
|
|
||||
|
for the pump G |
3/8" |
1/2" |
1/2" |
1/2" |
||||
|
for the cold cap baffle G |
1/4" |
3/8" |
3/8" |
3/8" |
||||
|
Weight, approx kg |
45 |
110 |
208 |
720 |
||||
|
Recom forevacuum pumps 3) at working pressure > 10-4 mbar oil-sealed dry-compressing at working pressure < 10-4 mbar oil-sealed dry-compressing |
SV 100 B & W 501 - |
SV 200 & W 501 DV 450 & W 501 |
SV 300 B & W 1001 DV 450 & W 1001 |
SV 630 B & W 2001 DV 650 & W 2001 |
||||
|
D 25 B ECODRY plus 60 |
D 65 B & W 251 ECODRY plus 60 & W 251 |
SV 100 B & W 501 - |
SV 300 B & W 1001 DV 450 & W 1001 |
|||||
|
Recom supporting pump 3) |
TRIVAC D 25 B |
TRIVAC D 40 B |
TRIVAC D 65 B |
TRIVAC D 65 B |
||||
Measured as per DIN 28 427 using DC 704 normal as the pump
- The coolant water volume is referenced to ∆T = 10 K. The discharge temperature should not exceed 30 °C.
- Single- and two-stage rotary vane pumps (TRIVAC; SOGEVAC)
