Leybold DIVAC 1.4 HV3 - NEW
Weight |
23.02 lbs |
Motor Power |
0.16 hp |
Pumping Speed |
1.3 m3/h |
Ultimate Pressure |
≤ 1.50 x 100 torr |

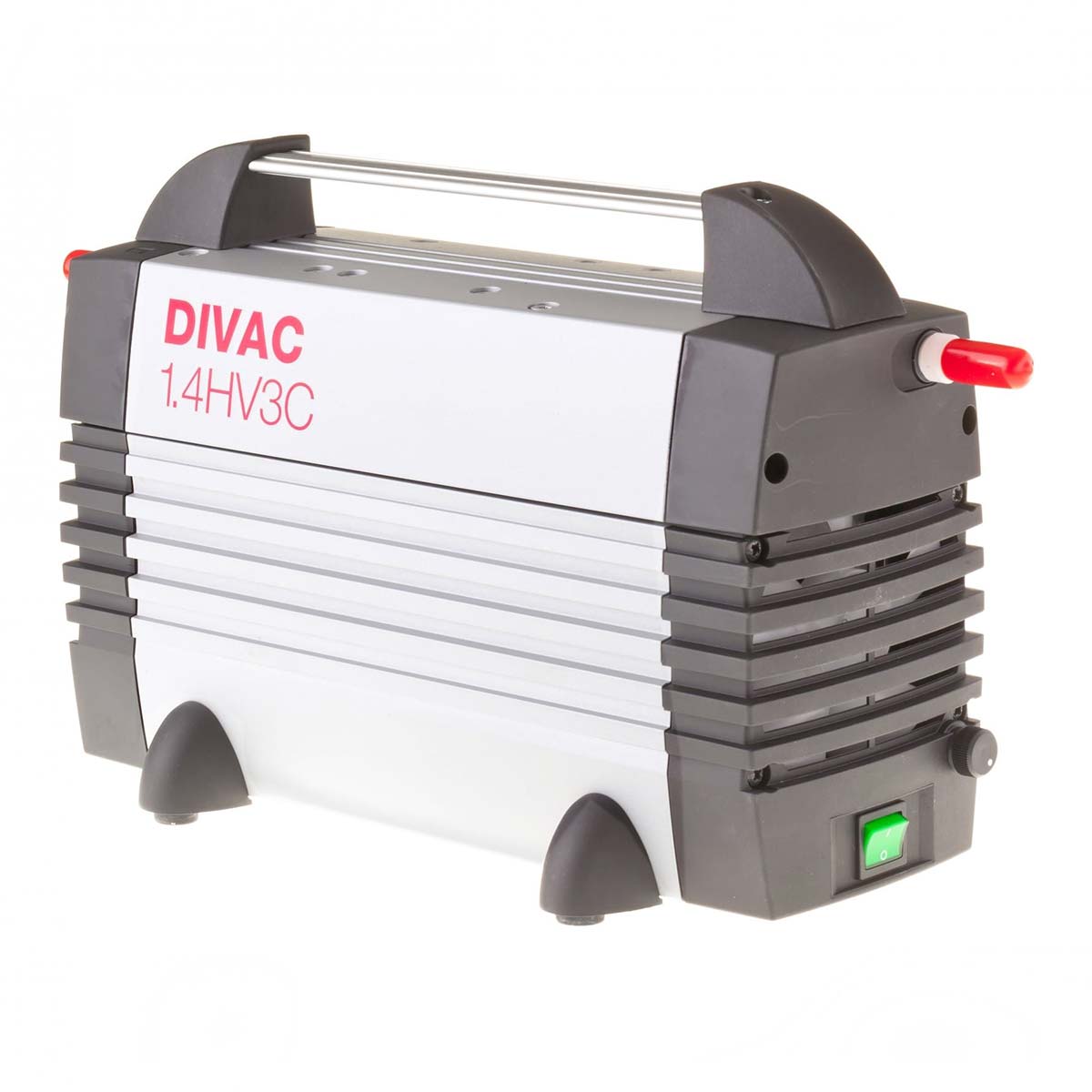

Leybold DIVAC 1.4 HV3 Dry Diaphragm Vacuum Pump - NEW
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Max. pumping speed |
1.3 m3 x h-1 |
Ultimate pressure |
≤ 2 mbar / ≤ 1.5 Torr |
Max. exhaust back pressure |
1,500 mbar / 1,125 Torr |
Pump heads |
3 |
Connection |
Inlet |
Hose nozzle ID 10 |
Exhaust |
Hose nozzle ID 10 |
Thread |
G 1/4" |
Noise level |
48 dB(A) |
Max permissible gas admission temperature |
5 to 40°C |
Max permissible ambient temperature |
5 to 40°C |
Voltage / nominal frequency |
90-230 V / 50-60 Hz |
Specifications
Type |
Label |
Description |
Download |
|
Leybold Dry Compressing Vacuum Pumps - NEW |
Excerpt / Catalog Part |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold DIVAC 1.4 HV3 Dry Diaphragm Vacuum Pump - NEW
Part # 12790V
